7 - 22
7.3 PLC Side Settings

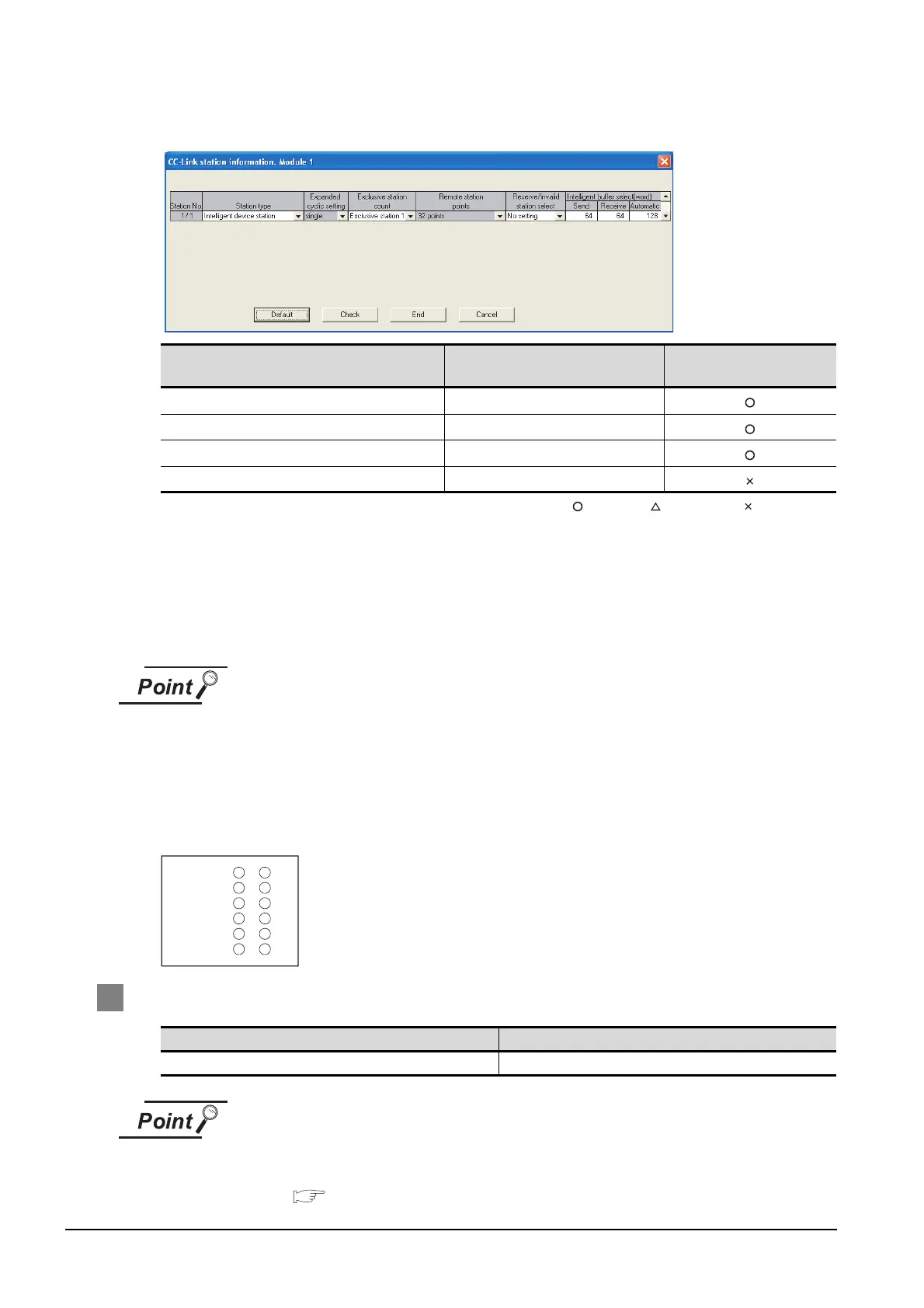

(2) Station information setting
: Necessary : As necessary : Not necessary
*1 When the [Mode] of the CC-Link module is set at [Remote net - (Ver. 2 mode)], [Remote station points] is
available to set.
[Remote station points] is a setting for the remote I/O station.
The default value (32 points) must be used on the GOT.
*2 When the [Mode] of the CC-Link module is set at [Remote net - (Ver. 2 mode)] or [Remote net - Additional mode],
set to [Ver. 1 Intelligent device station].
When changing the network parameter
After writing the network parameter to the PLC CPU, operate the PLC CPU ether
turning OFF and then ON or resetting.
(3) Completion confirmation
After initial communications of CC-Link are completed, the L RUN LED of AJ65BT-G4-S3 turns on.
The GOT starts to monitor after the L-RUN LED of AJ65BT-G4-S3 turns on.
It does not monitor while the L RUN LED turns off.
5 [Communication settings] of GT Designer2
[Communication Settings] of GT Designer2
For the setting method of [Communication Settings] of GT Designer2, refer to the
following.
Section 7.2.3 Setting communication interface (Communication settings)
Item
*1
Setting
Setting necessity at GOT
connection
Station type
*2
Intelligent device station (fixed)
Exclusive station count Exclusive station 1 (fixed)
Reserve/invalid station select No setting
Intelligent buffer select (word) (Use default value.)
Item Setting (Use default value.)
Transmisstion Speed 9600bps
PW
RUN
L RUN
SD
RD
L ERR.
To Next Page
