8.3 PLC Side Setting
8.3.1 Connecting to Ethernet module (Q Series)
8 - 21
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION

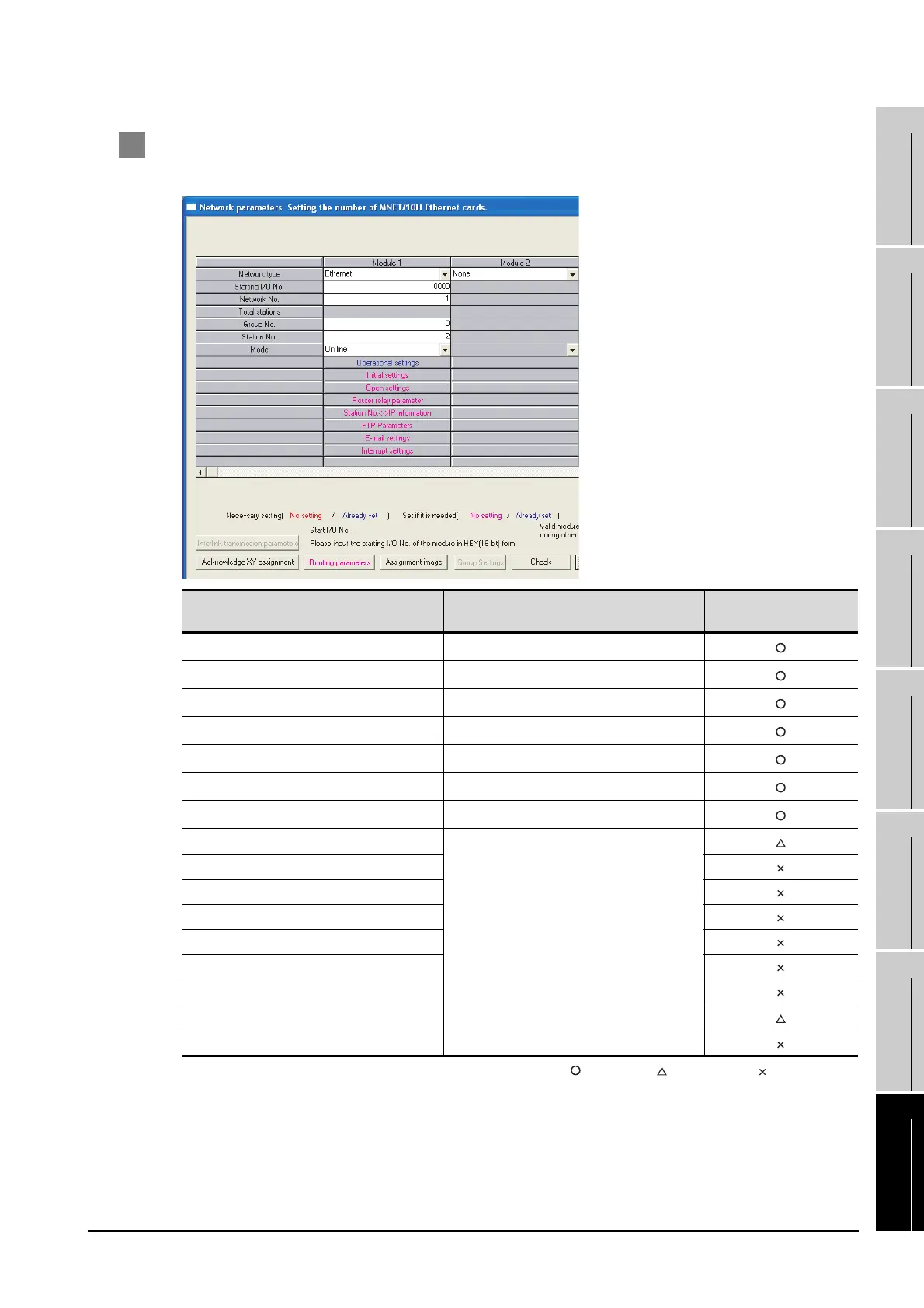

2 [Network parameter] of GX Developer
(1) Network parameter
: Necessary : As necessary : Not necessary
*1 Set the same network No. as that of the GOT.
*2 Do not set the same station No. as that of the GOT.
*3 Set when using Ethernet module in a redundant QnPRHCPU system.
Item Setting
Setting necessity at GOT
connection
Network type Ethernet (fixed)
Starting I/O No. 0000H
Network No.
*1
1
Group No. 0 (fixed)
Station No.*
2
2
Mode Online (fixed)
Operational settings Refer to (2).
Initial settings
(Use default value.)
Open settings
Router relay parameter
Station No. <-> IP information
FTP Parameters
E-mail settings
Interrupt settings
Redundant settings
*3
Routing parameters

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
