Mitsubishi GOT1000 Series User Manual

9 - 12

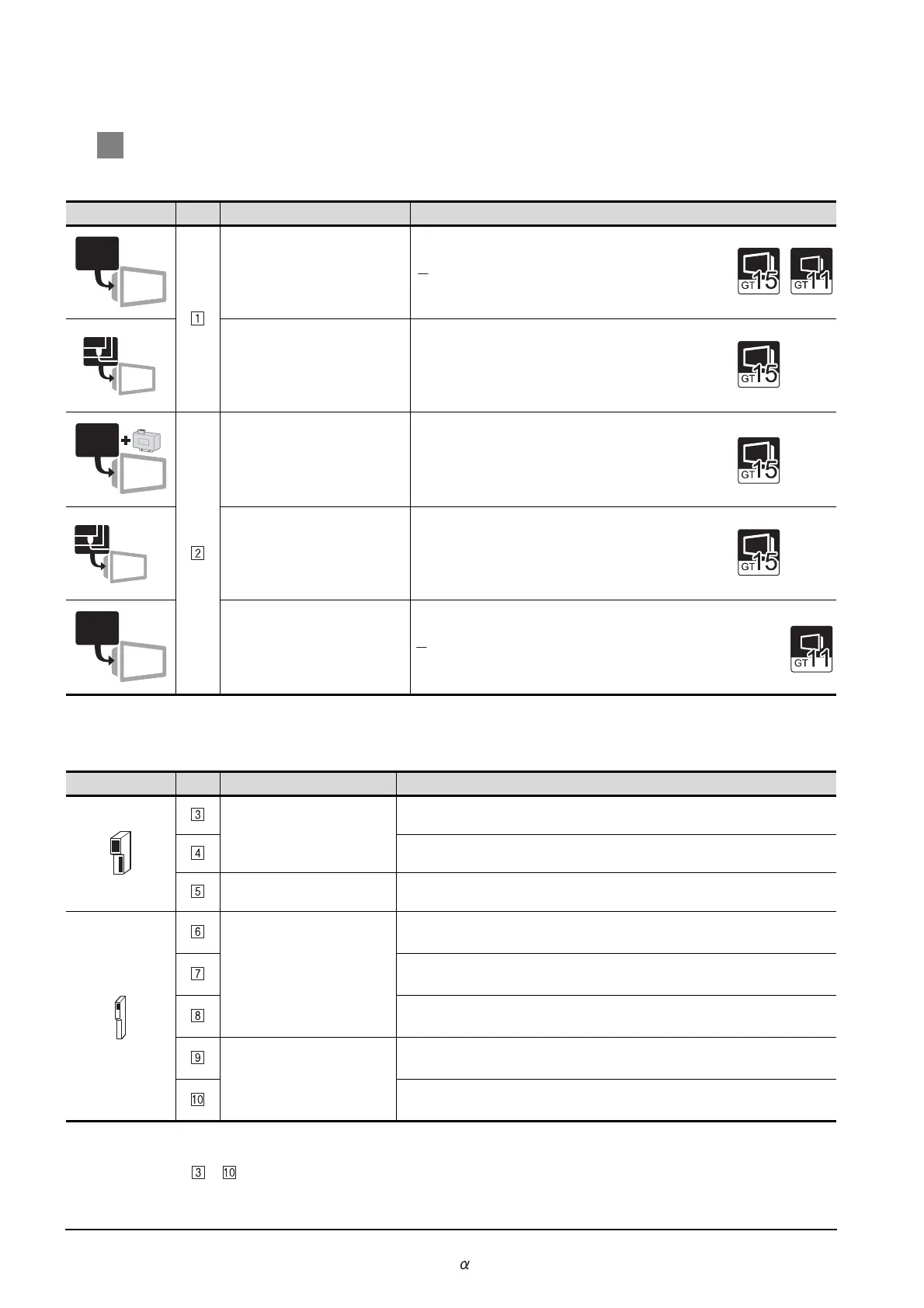

9.1 System Configuration
9.1.3 Connecting to C200HS, C200H, C200H or CS1
2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) PLC
*2 The communication board cannot be mounted to the C200HE-CPU11.
Use a host Link unit.
to are products manufactured by OMRON. For details of these products, contact OMRON.
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
Rack type host link unit
C200H-LK201-V1
C200H-LK202-V1
Serial communication module CS1W-SCU21
Communication board
*2
C200HW-COM02, C200HW-COM05
C200HW-COM03
C200HW-COM06
Serial communication board
CS1W-SCB21
CS1W-SCB41
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422
9.1 System Configuration
9.1.3 Connecting to C200HS, C200H, C200H or CS1

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
