Mitsubishi GOT1000 Series User Manual

10 - 4
10.1 System configuration
10.1.1 Connecting to KV-1000
2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT)
(2) PLC
, are products manufactured by KEYENCE. For details of these products, contact KEYENCE.

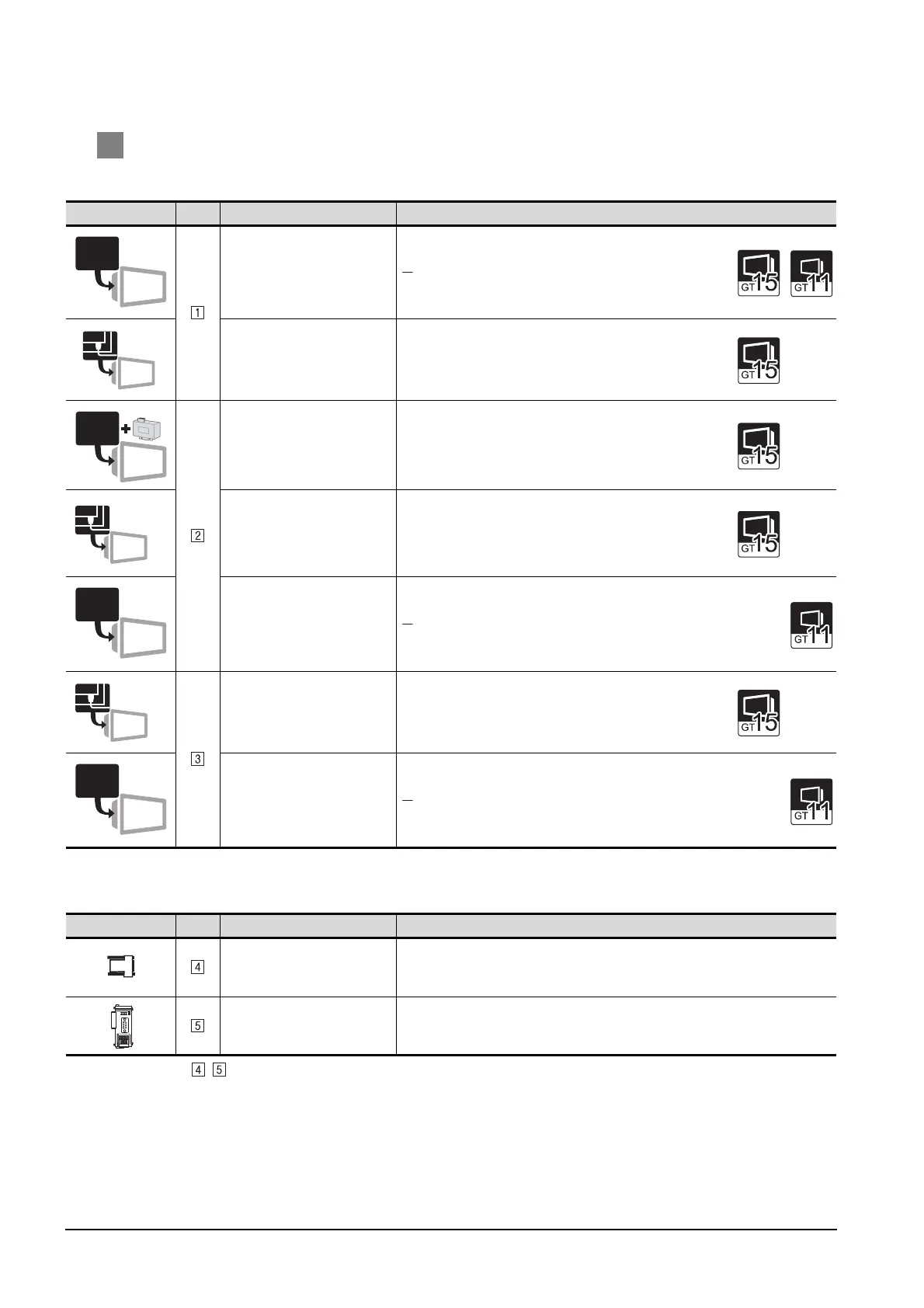

Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication
Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
RS-422/485 Communication
Unit
• For RS-485 communication
GT15-RS4-9S
RS-422 interface
• For RS-485 communication
(Built into GOT)
Image No. Name Model name
Conversion connector OP-26486
Multi-communication unit KV-L20R
RS-232
RS-232
RS-232
RS-232
RS-422
RS-422
/485
/485
RS-422
RS-422
RS-422
/485
/485
RS-422

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
