10.1 System configuration
10.1.1 Connecting to KV-1000
10 - 5
9
CONNECTION TO
OMRON PLC
10
CONNECTION TO
KEYENCE PLC
11
CONNECTION TO
SHARP PLC
12
CONNECTION TO
TOSHIBA PLC
13
CONNECTION TO
HITACHI PLC
14
CONNECTION TO
MATSUSHITA PLC
15
CONNECTION TO
YASKAWA PLC
16
CONNECTION TO
YOKOGAWA PLC

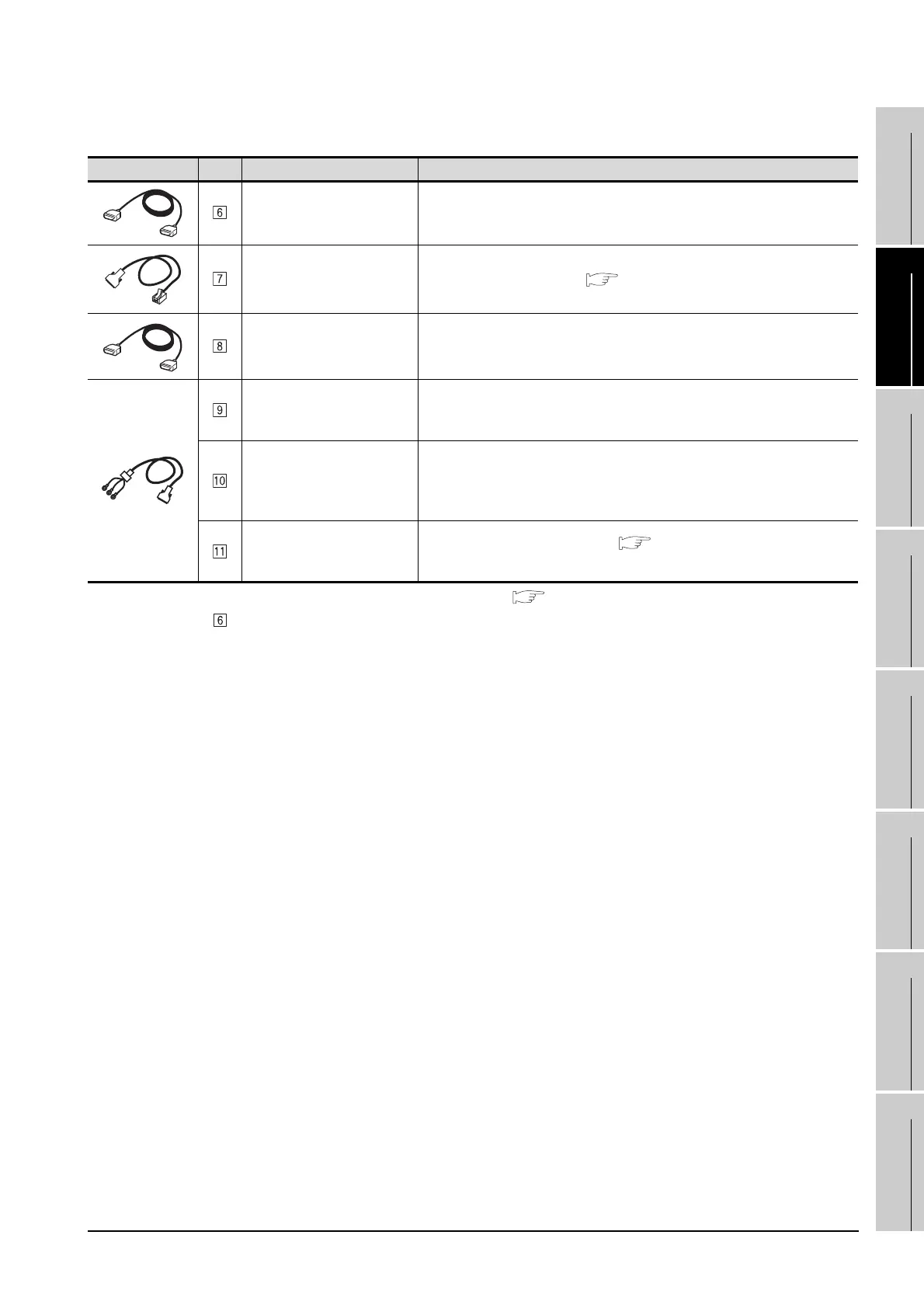

(3) Cable
*1 The RS-232 cable can be prepared by the user. ( Section 10.2 Connection cable)
is a product manufactured by KEYENCE. For details of this product, contact KEYENCE.
Image No. Name Model name
RS-232 cable 1)
• Between conversion
connector and GOT
OP-26487(2.5m)
RS-232 cable 2)
• Between PLC and GOT
(To be prepared by the user. Section 10.2 Connection cable
RS-232 cable 3)
Between multi-communication
unit and GOT
GT09-C30R21102-9S(3m)
RS-232 cable 4)
•Between multi-
communication unit and GOT
GT09-C30R21103-3T(3m)
RS-422 cable 1)
•Between multi-
communication unit and GOT
GT09-C30DR41101-5T(3m)
GT09-C100D0R41101-5T(10m)
GT09-C200D0R41101-5T(20m)
GT09-C300D0R41101-5T(30m)
RS-485 cable 1)
•Between multi-
communication unit and GOT
(To be prepared by the user. Section 10.2 Connection cable)
To Next Page
