11.1 System Configuration
11.1.1 Connecting to JW-21CU or JW-22CU
(3) Cable
*1 The RS-232 and RS-422 cable can be prepared by the user. ( Section 11.2 Connection Cable)

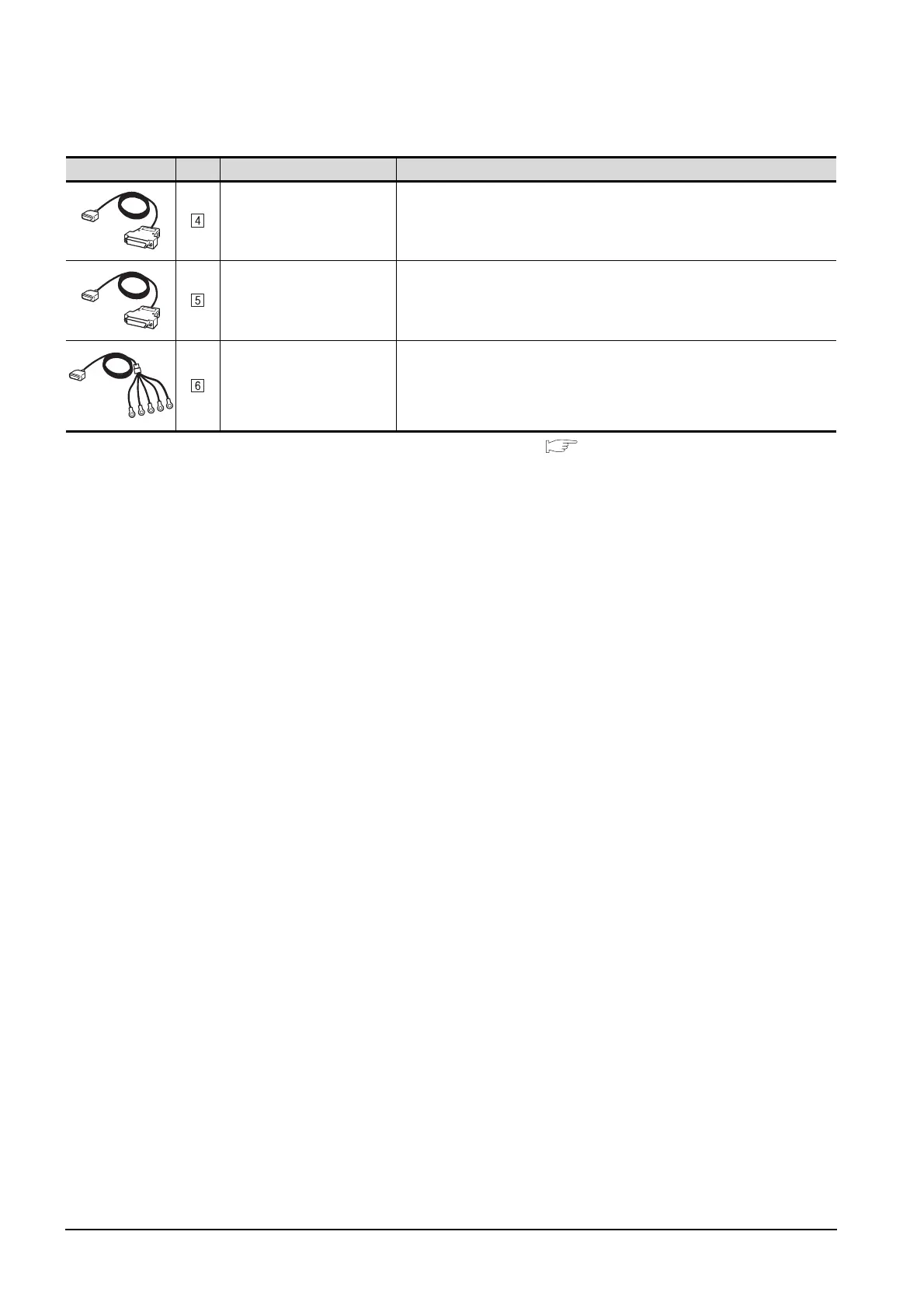

Image No. Name Model name
RS-232 cable 1)
• Between CPU and GOT
GT09-C30R20601-15P(3m)
RS-422 cable 1)
• Between CPU and GOT
GT09-C30R40601-15P(3m)
GT09-C100R40601-15P(10m)
GT09-C200R40601-15P(20m)
GT09-C300R40601-15P(30m)
RS-422 cable 3)
• Between link unit and GOT
GT09-C30R40603-6T(3m)
GT09-C100R40603-6T(10m)
GT09-C200R40603-6T(20m)
GT09-C300R40603-6T(30m)
