1 - 16

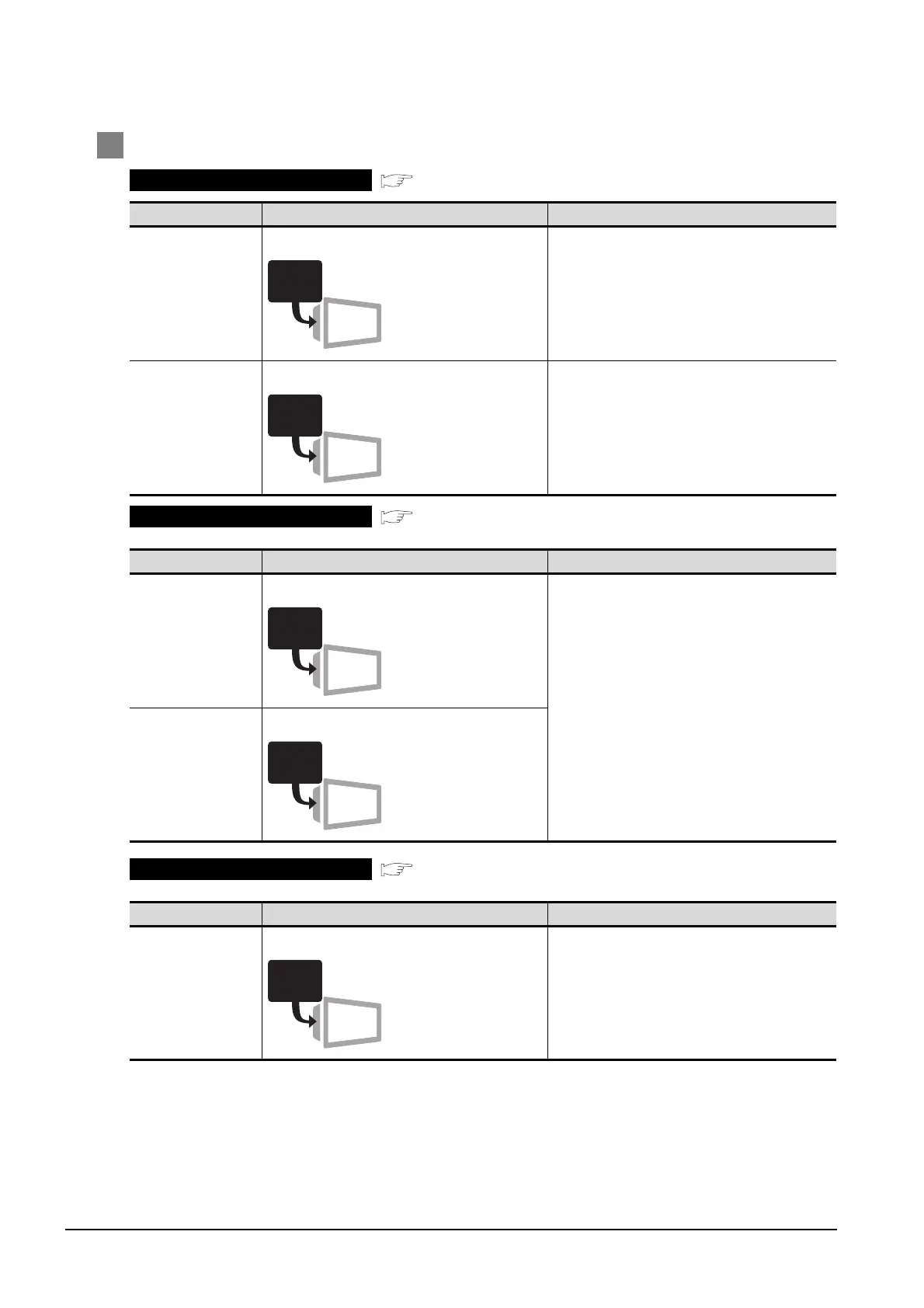

1.2 Overall System Configurations
2 GT11 system configuration
Direct connection to CPU
( Chapter 3)
Communication Type Communication Interface on GOT Side Connected to
RS-232
communication
Built in GT11 body QCPU (Q mode)
•QCPU (A mode)
FXCPU
Motion controller CPU (Q Series)
Remote I/O station in the MELSECNET/H network
system
RS-422
communication
Built in GT11 body QnACPU
•ACPU
FXCPU
Motion controller CPU (A Series)
Computer link connection
( Chapter 4)
Communication Type Communication Interface on GOT Side Connected to
RS-232
communication
Built in GT11 body Serial communication module
•QCPU (Q mode)
•QnACPU
Motion controller CPU (Q Series)
Remote I/O station in the MELSECNET/H
network system
Computer link module
•QCPU (A mode)
•QnACPU
•ACPU
Motion controller CPU (A Series)
RS-422
communication
Built in GT11 body
CC-Link connection (via G4)
( Chapter 7)
Communication Type Communication Interface on GOT Side Connected to
RS-422
communication
Built in GT11 body Peripheral connection module
•QCPU (Q mode)
Motion controller CPU (Q Series)
RS-232
RS-422
RS-232
RS-422
RS-422
