13 - 2

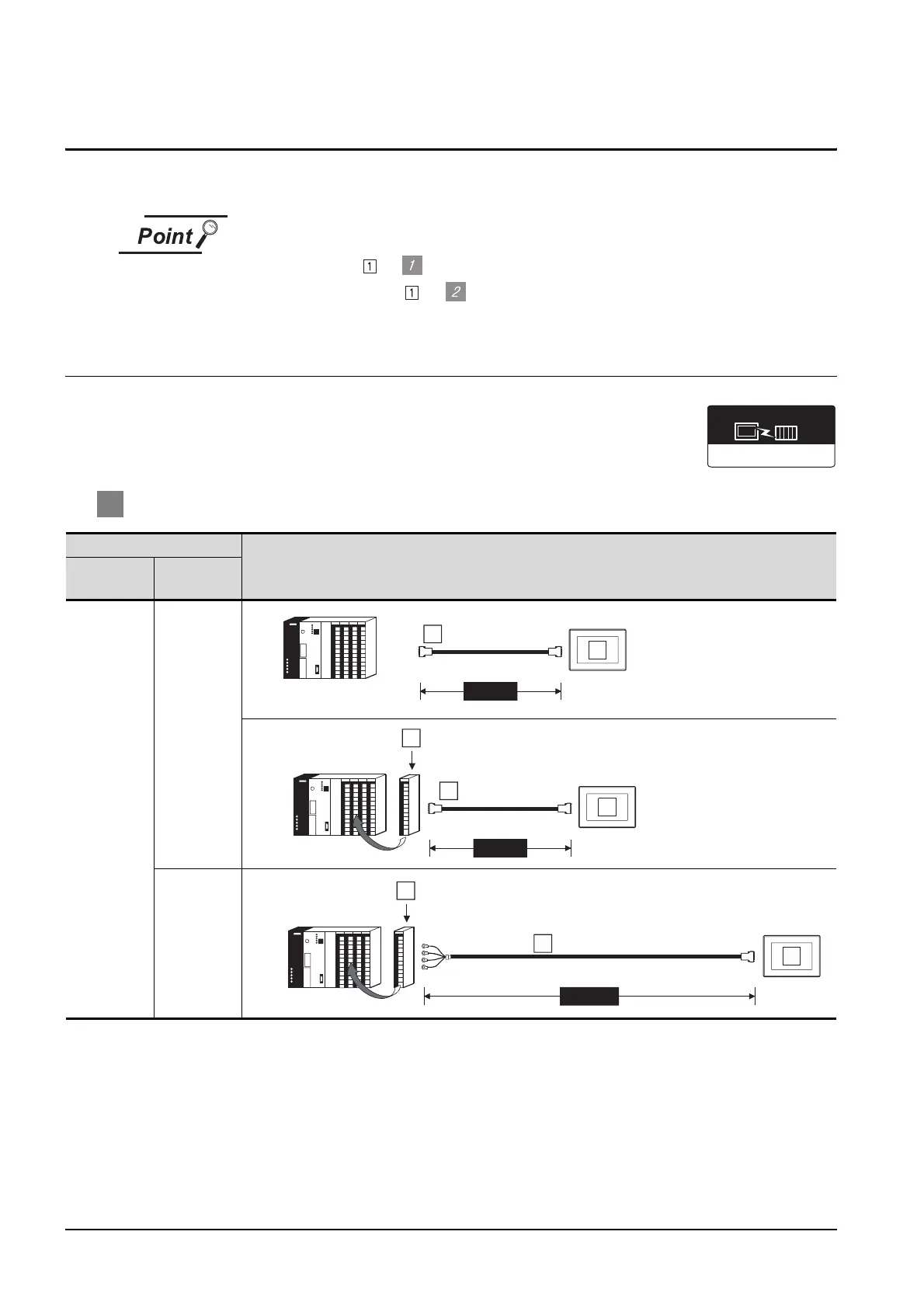

13.1 System Configuration
13.1.1 Connecting to large-sized H series
13.1 System Configuration
Select a system configuration suitable for your application.
Conventions used in this section
Numbers (e.g. ) of System configuration and connection conditions correspond
to the numbers (e.g. ) of System equipment.
Use these numbers as references when confirming models and applications.
13.1.1 Connecting to large-sized H series
1 System configuration and connection conditions
*1 To use "transmission control procedure 2" as a protocol, select "HITACHI HIDIC H (Protocol2)" as a
communication driver.
*2 To connect to the large-sized H series, connect to the peripheral port of the CPU module.
Connection conditions
System configuration
*1
Number of
GOTs
Distance
1
15m or less
200m or less
· HITACHI HIDIC H
· HITACHI HIDIC H (Protocol2)
Communication driver
4
RS-232 cable 1), 2)
1
MAX15m
*2
5
3
RS-232 cable 1)
Intelligent serial port module
1
MAX15m
6
3
RS-422 cable
Intelligent serial port module
2
MAX200m
