15 - 14

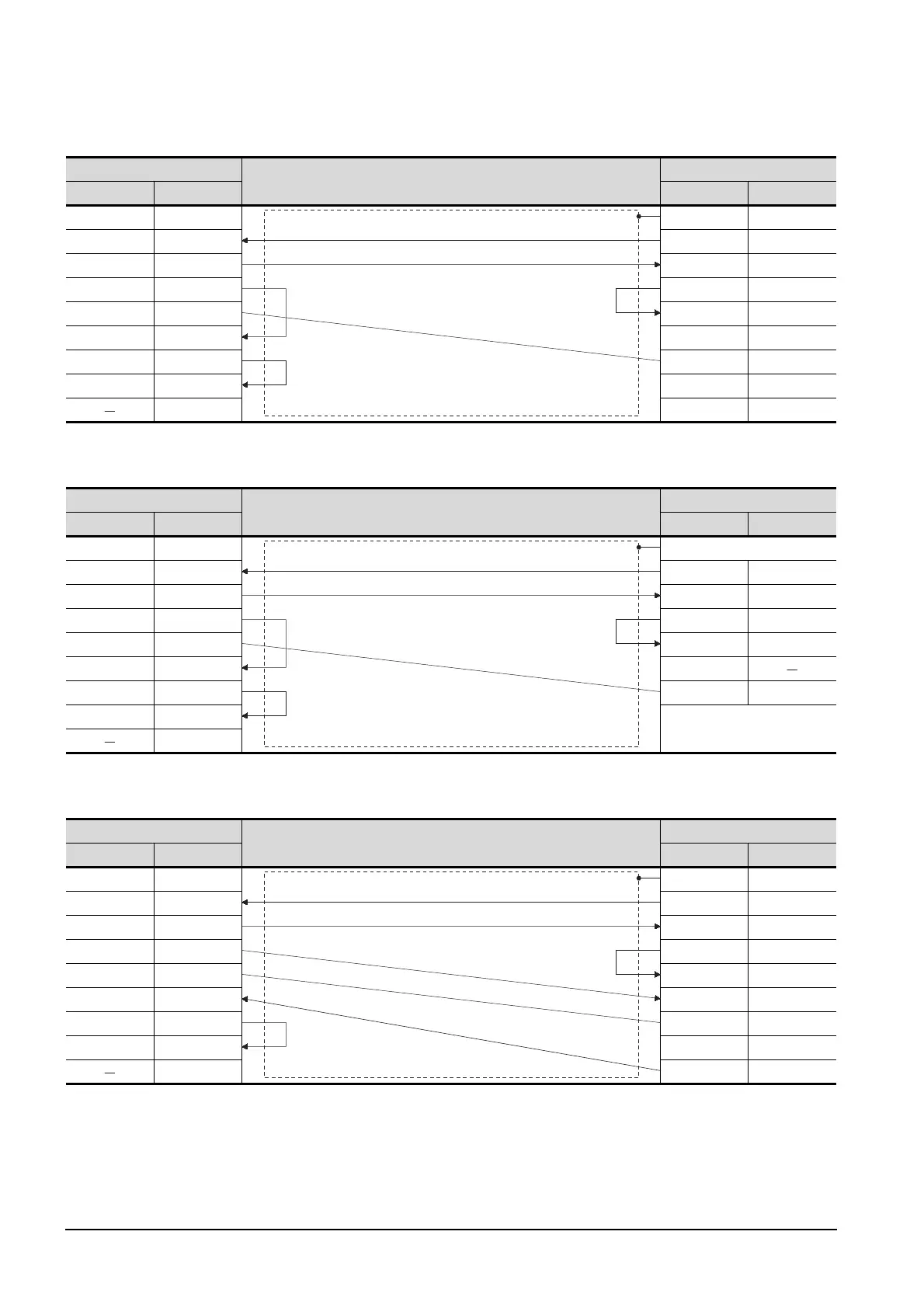

15.2 Connection Cable
15.2.1 RS-232 cable
(3) RS-232 cable 3)
*1 GT15: CD, GT11: NC
(4) RS-232 cable 4)
*2 GT15: CD, GT11: NC
(5) RS-232 cable 5)
*3 GT15: CD, GT11: NC
GOT side
Cable connection and signal direction
YASKAWA product side
Signal name Pin No. Pin No. Signal name
CD/NC
*1
1 1FG
RD(RXD) 2 2TXD
SD(TXD) 3 3RXD
ER(DTR) 4 4RTS
SG 5 5OP/CTS
DR(DSR) 6 6DSR
RS(RTS) 7 7GND
CS(CTS) 8 8PWR
9 9DTR
GOT side
Cable connection and signal direction
YASKAWA product side
Signal name Pin No. Pin No. Signal name
CD/NC
*2
1 Clamped by hood
RD(RXD) 2 1TXD
SD(TXD) 3 3RXD
ER(DTR) 4 12 RTS
SG 5 6CTS
DR(DSR) 6 2
RS(RTS) 7 14 GND
CS(CTS) 8
9
GOT side
Cable connection and signal direction
YASKAWA product side
Signal name Pin No. Pin No. Signal name
CD/NC
*3
1 1FG
RD(RXD) 2 2TXD
SD(TXD) 3 3RXD
ER(DTR) 4 4RS
SG 5 5CS
DR(DSR) 6 6DSR
RS(RTS) 7 7SG
CS(CTS) 8 8CD
9 20 DTR
