15.2.1 RS-232 cable
The following shows the connection diagrams and connector specifications of the RS-232 cable used for
connecting the GOT to a PLC.

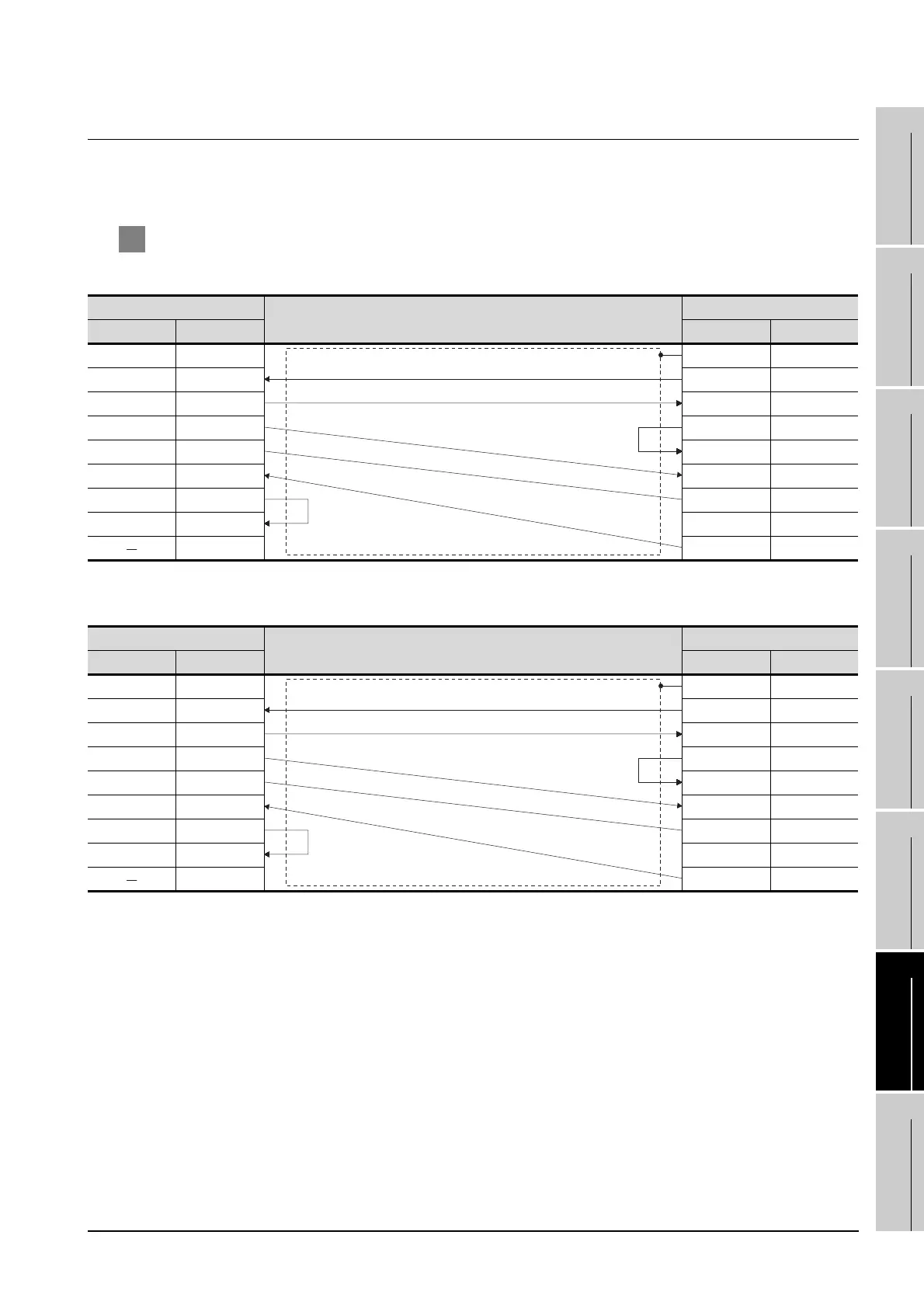

1 Connection diagram
(1) RS-232 cable 1)
*1 GT15: CD, GT11: NC
(2) RS-232 cable 2)
*2 GT15: CD, GT11: NC
GOT side
Cable connection and signal direction
YASKAWA product side
Signal name Pin No. Pin No. Signal name
CD/NC
*1
1 1FG
RD(RXD) 2 2TXD
SD(TXD) 3 3RXD
ER(DTR) 4 4RTS
SG 5 5CTS
DR(DSR) 6 6DSR
RS(RTS) 7 7GND
CS(CTS) 8 8 EST
9 9DTR
GOT side
Cable connection and signal direction
YASKAWA product side
Signal name Pin No. Pin No. Signal name
CD/NC
*2
1 1FG
RD(RXD) 2 2TXD
SD(TXD) 3 3RXD
ER(DTR) 4 4RTS
SG 5 5CTS
DR(DSR) 6 6DSR
RS(RTS) 7 7GND
CS(CTS) 8 8NC
9 9DTR
