17 - 8

17.2 Connection Cable

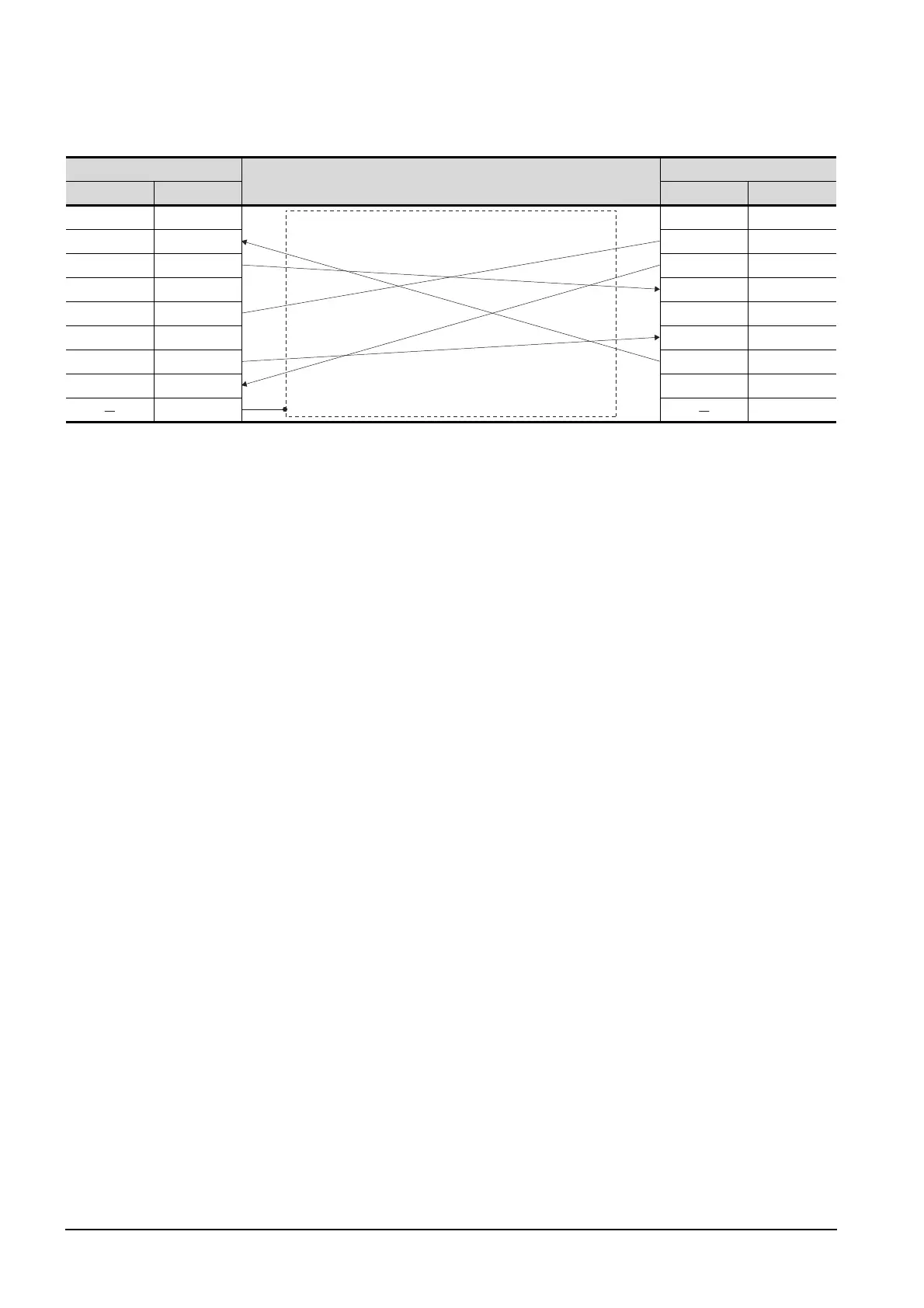

(3) RS-232 cable 3) (between CPU (MicroLogix1000/1200/1500 Series) and GOT)

*1 GT15: CD, GT11, NC

GOT side

Cable connection and signal direction

Allen-Bradley product side

Signal name Pin No. Pin No. Signal name

CD/NC

1 124V

RD(RXD) 2 2SG

SD(TXD) 3 3RTS

ER(DTR) 4 4RXD

SG 5 5CD

DR(DSR) 6 6CTS

RS(RTS) 7 7TXD

CS(CTS) 8 8SG

9 FG
