17.2 Connection Cable
The RS-232 cable used for connection between the GOT and PLC needs to be prepared by the user.
The following shows each cable connection diagram and relevant connectors.

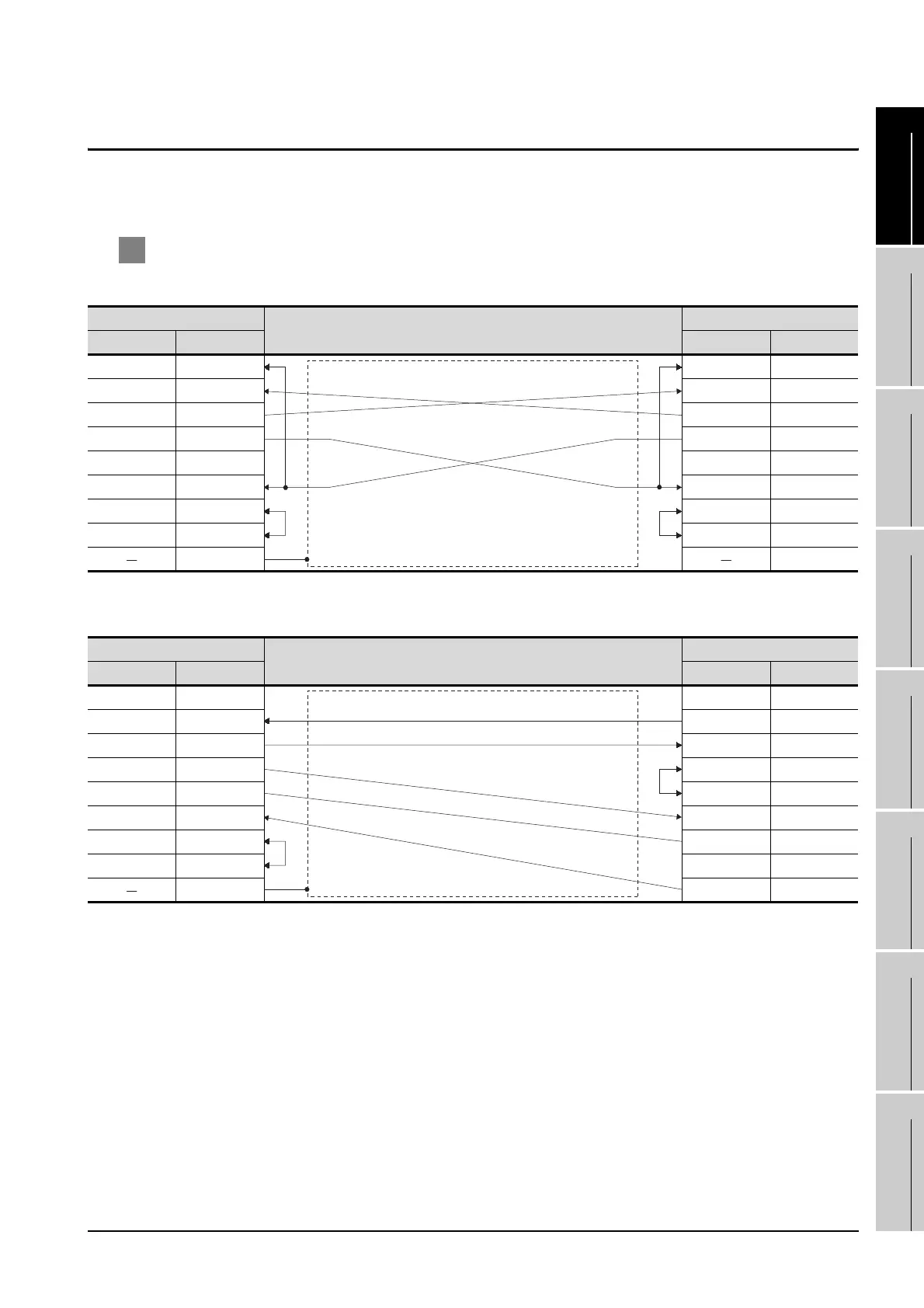

1 Connection diagram
(1) RS-232 cable 1) (between CPU (SLC500 Series) and GOT)
*1 GT15: CD, GT11, NC
(2) RS-232 cable 2) (between Adapter (1770-KF3) and GOT)
*2 GT15: CD, GT11, NC
GOT side
Cable connection and signal direction
Allen-Bradley product side
Signal name Pin No. Pin No. Signal name
CD/NC
*1
1 1CD
RD(RXD) 2 2RXD
SD(TXD) 3 3TXD
ER(DTR) 4 4DTR
SG 5 5SG
DR(DSR) 6 6DSR
RS(RTS) 7 7RTS
CS(CTS) 8 8CTS
9 FG
GOT side
Cable connection and signal direction
Allen-Bradley product side
Signal name Pin No. Pin No. Signal name
CD/NC
*2
1 1FG
RD(RXD) 2 2TXD
SD(TXD) 3 3RXD
ER(DTR) 4 4RTS
SG 5 5CTS
DR(DSR) 6 6DSR
RS(RTS) 7 7SG
CS(CTS) 8 8CD
9 20 DTR

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
