17.3 Preparatory Procedures for Monitoring
17.3.3 Setting communication interface (Communication settings)
17 - 15
17
CONNECTION TO
ALLEN-BRADLEY PLC
18
CONNECTION TO
SIEMENS PLC
19
MICROCOMPUTER
CONNECTION
20
CONNECTION TO OMRON
TEMPERATURE
CONTROLLER
21
CONNECTION TO
YAMATAKE TEMPERATURE
CONTROLLER
22
CONNECTION TO RKC
TEMPERATURE
CONTROLLER
23
CONNECTION TO
FREQROL SERIES
INVERTER
24
SERVO AMPLIFIER
CONNECTION
(2) AB MicroLogix
(1) Communication interface setting by Utility
The communication interface setting can be changed on the Utility's
"Communication setting" after downloading "Communication setting" of project
data.
For details on the Utility, refer to the following manual.
GT User's Manual
(2) Precedence in communication settings
When settings are made by GT Designer or the Utility, the latest setting is
effective.

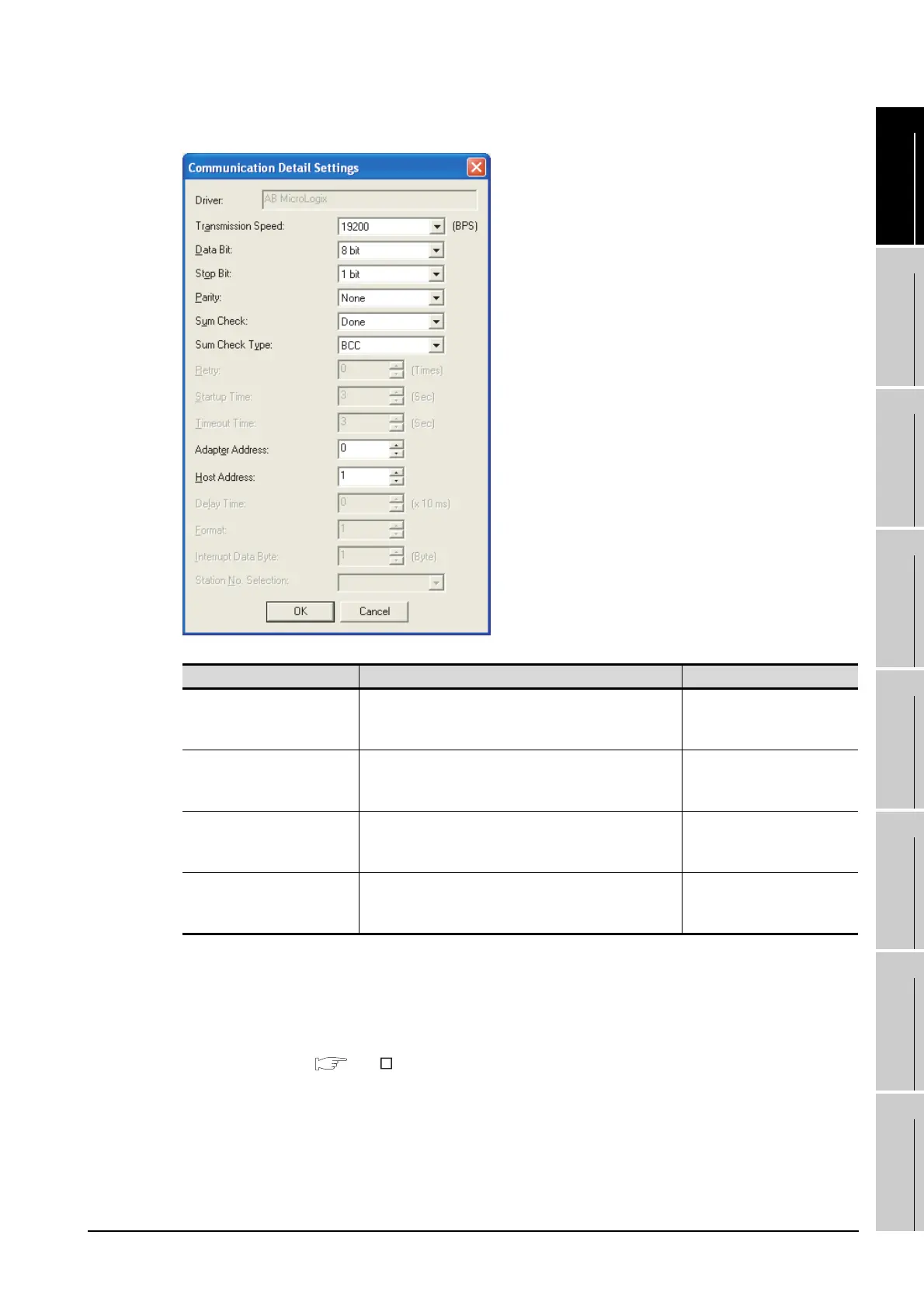

Item Description Range
Transmission Speed
Set this item when change the transmission speed used for
communication with the connected equipment.
<Default: 19200bps>
4800bps, 9600bps,
19200bps, 38400bps
Sum Check Type
Specify the format in which the sum check is performed
during communication when performing sum check.
<Default: BCC>
BCC, CRC16
Adapter Address
Specify the adapter address (station No. of the PLC that the
GOT will monitor) in the connected network.
<Default: 0>
0 to 31
Host Address
Specify the host address (station No. of the adapter to which
the GOT is connected) in the connected network.
<Default: 1>
1 to 31
