21 - 28
21.3 Preparatory Procedures for Monitoring
21.3.3 Setting communication interface (Communication settings)

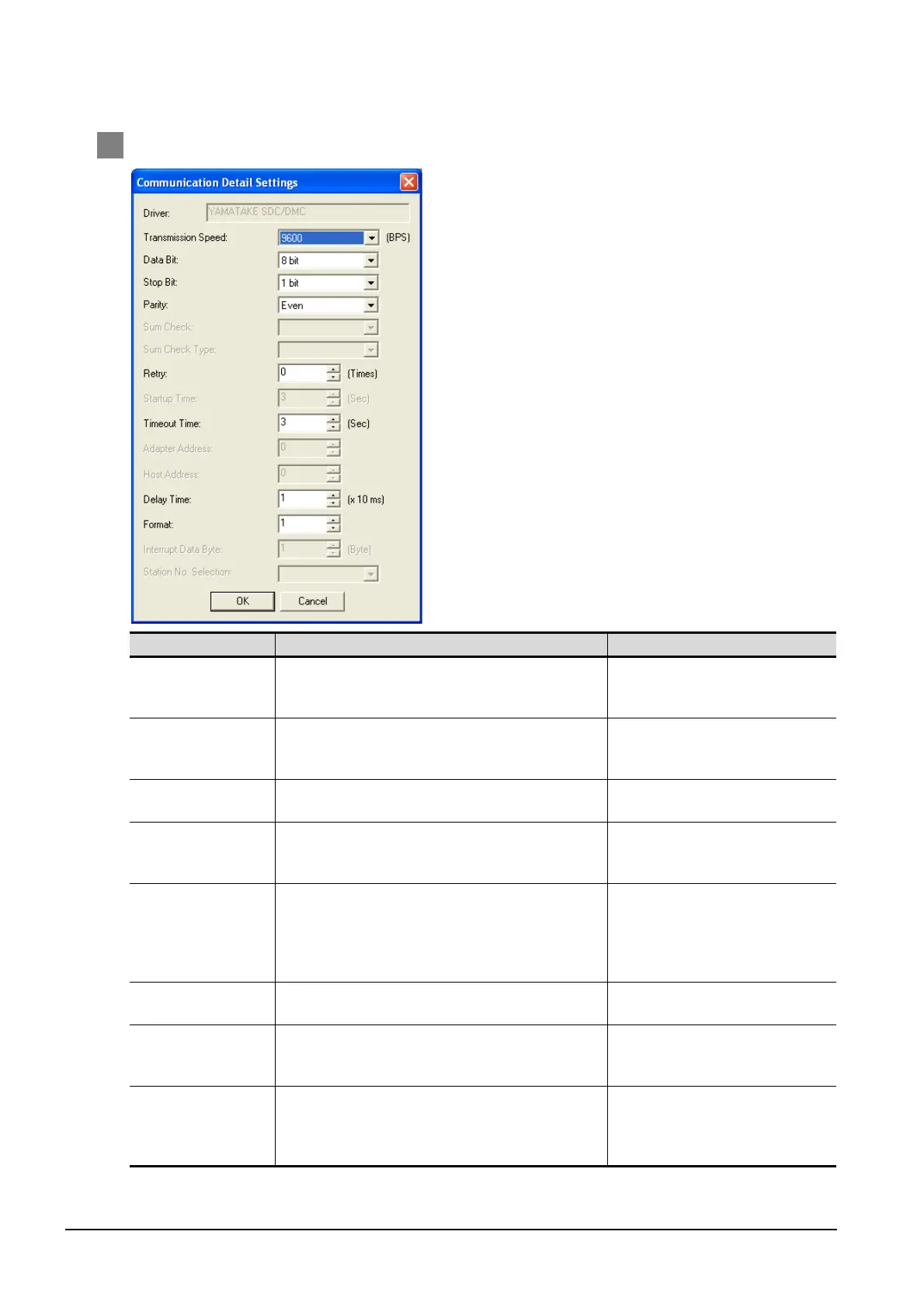

2 Communication detail settings
*1 Do not specify “0”
Item Description Range
Transmission Speed
Set this item when change the transmission speed used for
communication with the connected equipment.
<Default: 9600bps>
9600bps,19200bps,38400bps,
57600bps,115200bps
Data Bit
Set this item when change the data length used for communi-
cation with the connected equipment.
<Default: 8bit>
7bit/8bit
Stop Bit
Specify the stop bit length for communications.
<Default: 1bit>
1bit/2bit
Parity
Specify whether or not to perform a parity check, and how it is
performed during communication.
<Default: Even>
None
Even
Odd
Retry
Set the number of retries to be performed when a
communication error occurs.
When receiving no response after retries, the communication
times out.
<Default: 0 Times>
0 to 5 Times
Timeout Time
Set the time period for a communication to time out.
<Default: 3 Sec>
3 to 30 Sec
Delay Time
Set this item to adjust the transmission timing of the
communication request from the GOT.
<Default: 1ms>
0 to 300 ms
Format
Select the communication format.
<Default: 1>
format 1: only continuous access
format 2: continuous and random access
1 /2
