22 - 8
22.1 System Configuration
22.1.2 Connecting to H-PCP-A or H-PCP-B
(3) Cable
*1 The RS-232 cable and RS-422 cable can be prepared by the user. ( Section 22.2 Connection Cable)
, , are products manufactured by RKC. For details of these products, contact RKC.

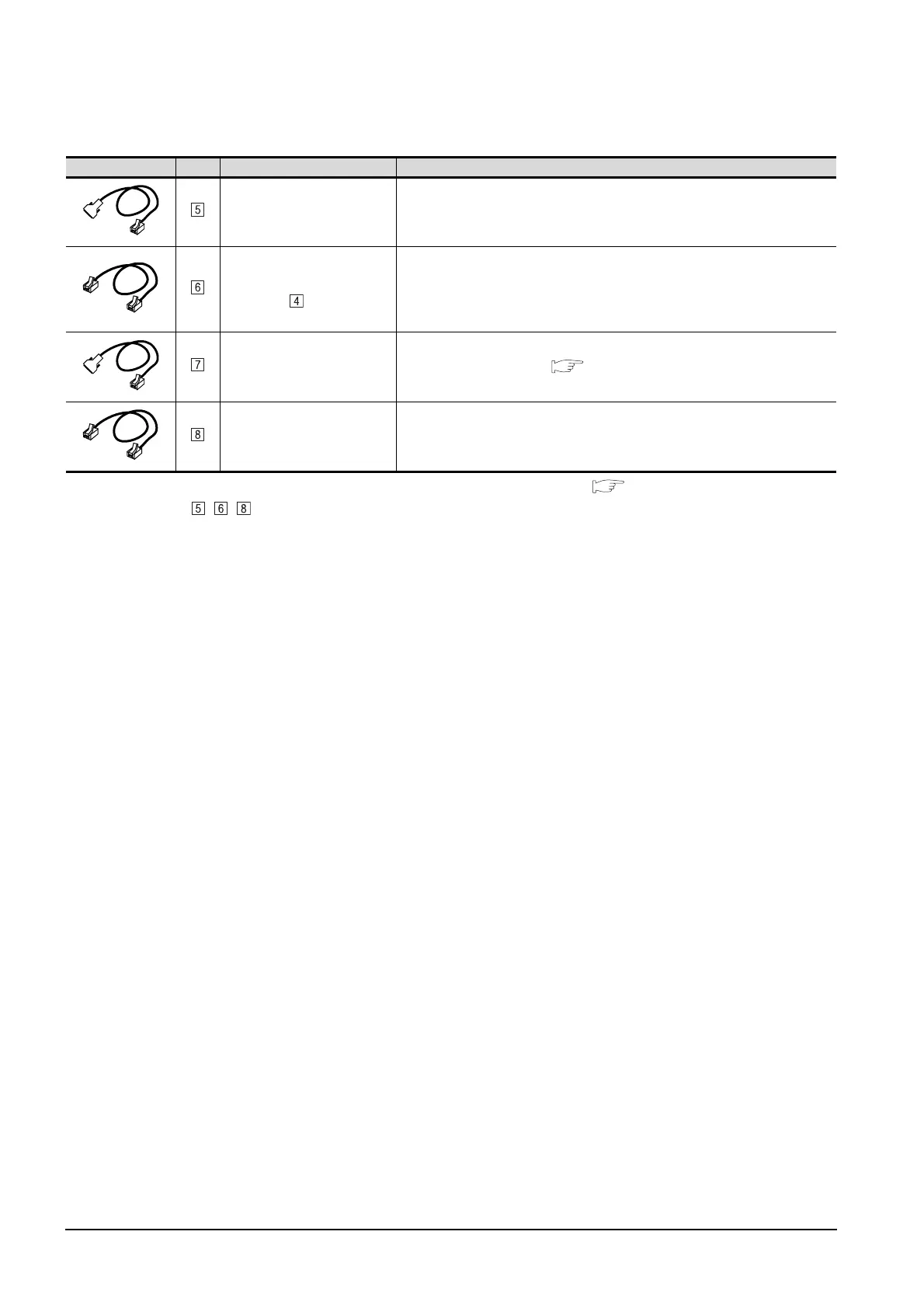

Image No. Name Model name
RS-232 cable 1)
*1
• Between temperature
controller and GOT
W-BF-28-0500(0.5m), W-BF-28-1000(1m), W-BF-28-3000(3m)
RS-232 cable 2)
• Between conversion
connector and
temperature controller
W-BF-02-0500(0.5m), W-BF-02-1000(1m), W-BF-02-3000(3m)
RS-422 cable 1)
• Between temperature
controller and GOT
(To be prepared by the user. Section 22.2 Connection Cable )
RS-422 cable 2)
• Between temperature
controller and GOT
W-BF-02-0500(0.5m), W-BF-02-1000(1m), W-BF-02-3000(3m)
