22.4 Temperature Controller Side Setting
22.4.2 Connecting to H-PCP-A, H-PCP-B
22 - 35
17
CONNECTION TO
ALLEN-BRADLEY PLC
18
CONNECTION TO
SIEMENS PLC
19
MICROCOMPUTER
CONNECTION
20
CONNECTION TO OMRON
TEMPERATURE
CONTROLLER
21
CONNECTION TO
YAMATAKE TEMPERATURE
CONTROLLER
22
CONNECTION TO RKC
TEMPERATURE
CONTROLLER
23
CONNECTION TO
FREQROL SERIES
INVERTER
24
SERVO AMPLIFIER
CONNECTION
22.4.2 Connecting to H-PCP-A, H-PCP-B
1 Communication settings
Make the communication settings of the temperature controller.
*1 Make the same setting as that of the GOT side.
*2 Select the unit address without overlapping with that of other units.

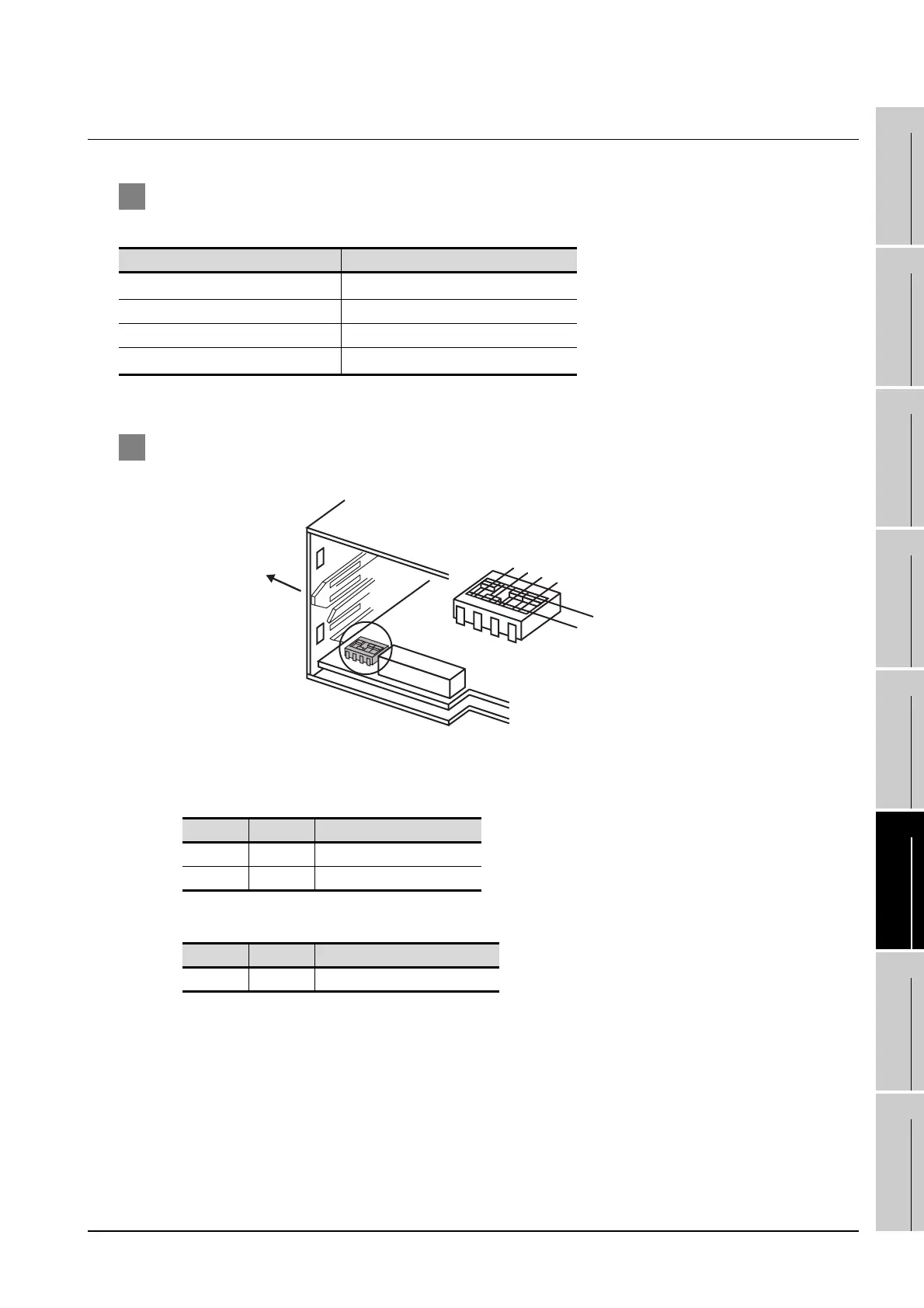

2 Settings by DIP switch
Make the settings of transmission speed, data length, parity bit, and stop bit.
(1) Transmission speed
(2) Settings of data length and parity bit
Setting item Set value
Transmission speed
*1
9600bps, 19200bps
Data length 8bits
Parity bit None
Unit address
*2
0 to F
3 4 Communication speed
OFF ON 9600bps
ON ON 19200bps
1 2 Data bit configuration
OFF OFF Data 8-bit, Non parity
Rear view of module mainframe with mother block removed
Top section
OFF
ON
4
3
2
1
To Next Page
