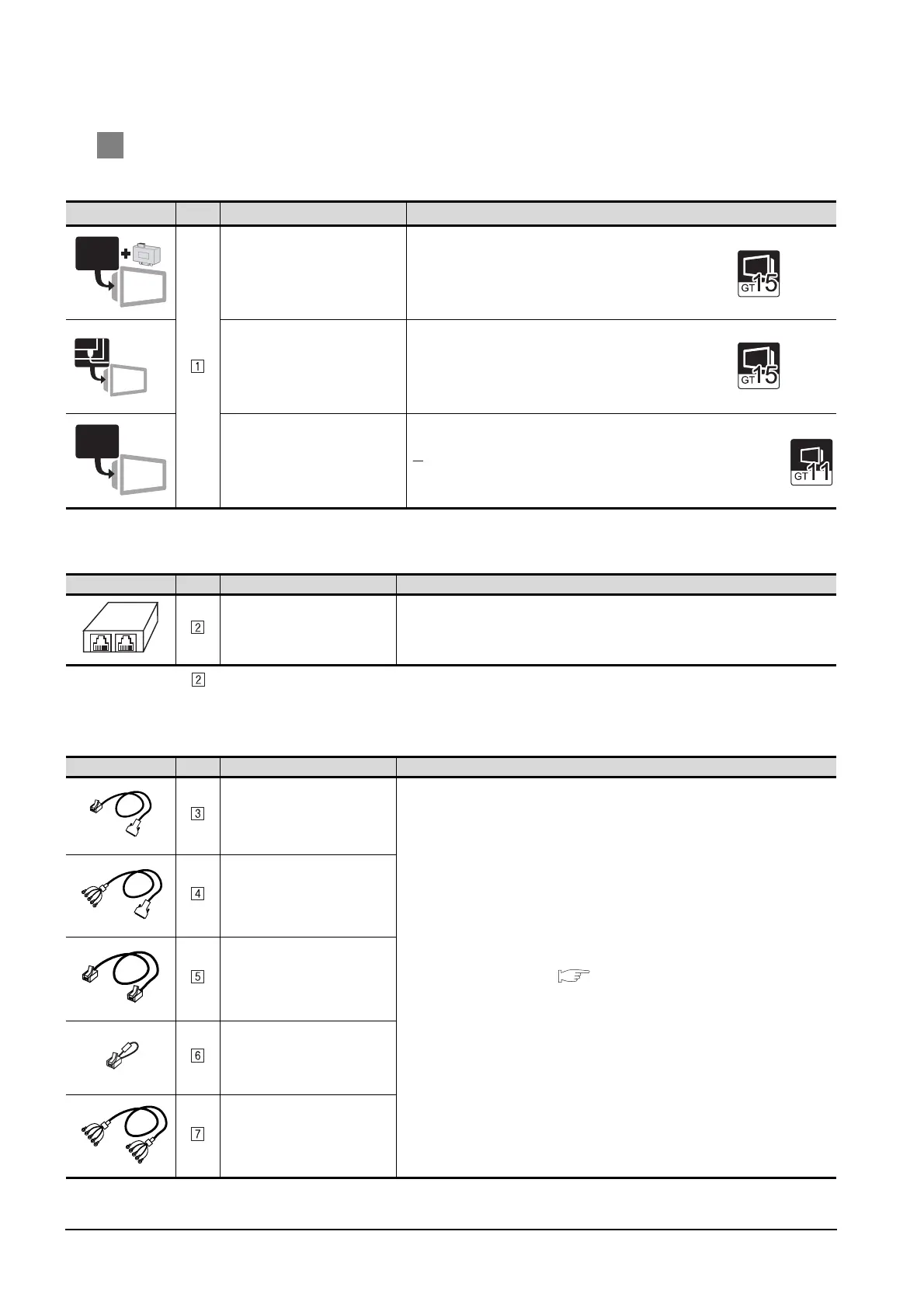

Mitsubishi GOT1000 Series User Manual

23 - 8
23.1 System Configuration
23.1.3 Connecting to FREQROL A700/F700
2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) Inverter
is a product manufactured by HACHIKO ELECTRIC CO., LTD.
For details of this product, contact HACHIKO ELECTRIC CO., LTD
(3) Cable
Image No. Name Model name
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
Distributor BMJ-8 (Recommended)
Image No. Name Model name
RS-422 cable 1)
• Between inverter and GOT
• Between distributor and GOT
(To be prepared by the user. Section 23.2 Connection Cable)
RS-422 cable 5)
• Between inverter and GOT
RS-422 cable 3)
• Between distributor and
inverter
• Between distributors
RS-422 cable 7)
• Mounting a terminating
resistor
RS-422 cable 6)
• Between inverter and GOT
• Between inverters
RS-232
RS-422/485
RS-422/485
RS-422
