24 - 8

24.1 System Configuration

24.1.3 Connecting to the MELSERVO-J3 Series

(3) Cable

is a product manufactured by Diatrend Corporation.

For detail of this product, contact

Diatrend Corporation.

, are products manufactured by MITSUBISHI ELECTRIC ENGINEERING COMPANY LIMITED.

For detail of these products, contact MITSUBISHI ELECTRIC ENGINEERING COMPANY LIMITED.

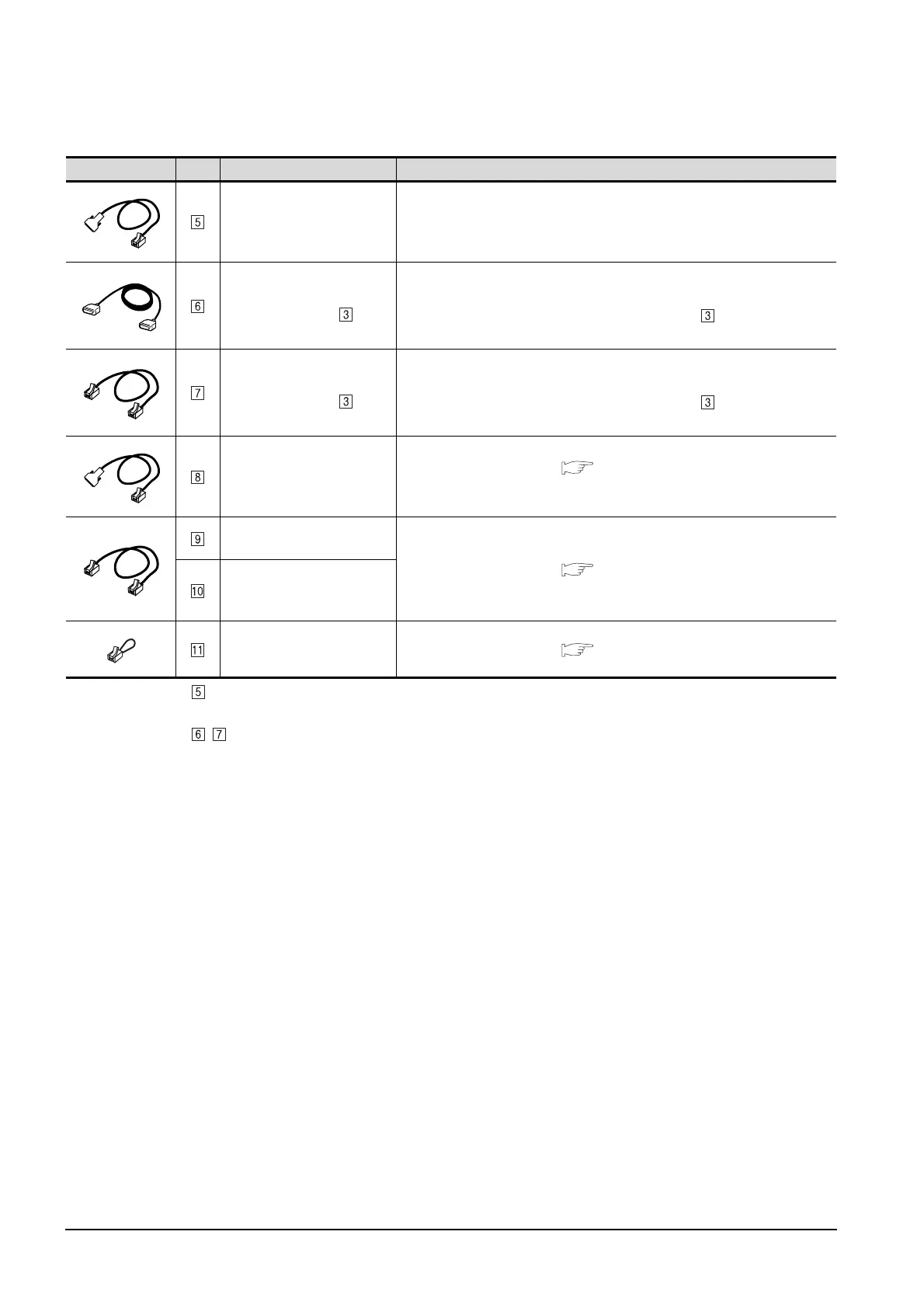

Image No. Name Model name

RS-422/232 conversion cable

• Between servo amplifier and

GOT

DSV-CABV(1.5m)

RS-232 cable 2)

• Between RS-422/232

interface converter and

GOT

RS-PCATCBL-0.5M(0.5m)

(packed together with the RS-422/232 interface canverter )

RS-422 cable 2)

• Between RS-422/232

interface converter and

Servo amplifier

RS-422SCBL-2M(2m)

(packed together with the RS-422/232 interface canverter )

RS-422 cable 3)

• Between servo amplifier and

GOT

(To be prepared by the user. Section 24.2 Connection Cable)

RS-422 cable 4)

• Between distributors

(To be prepared by the user. Section 24.2 Connection Cable)

RS-422 cable 5)

• Between servo amplifier and

distributor

RS-422 cable 6)

• Between pins of distributor

(To be prepared by the user. Section 24.2 Connection Cable)
