Mitsubishi GOT1000 Series User Manual

24 - 12

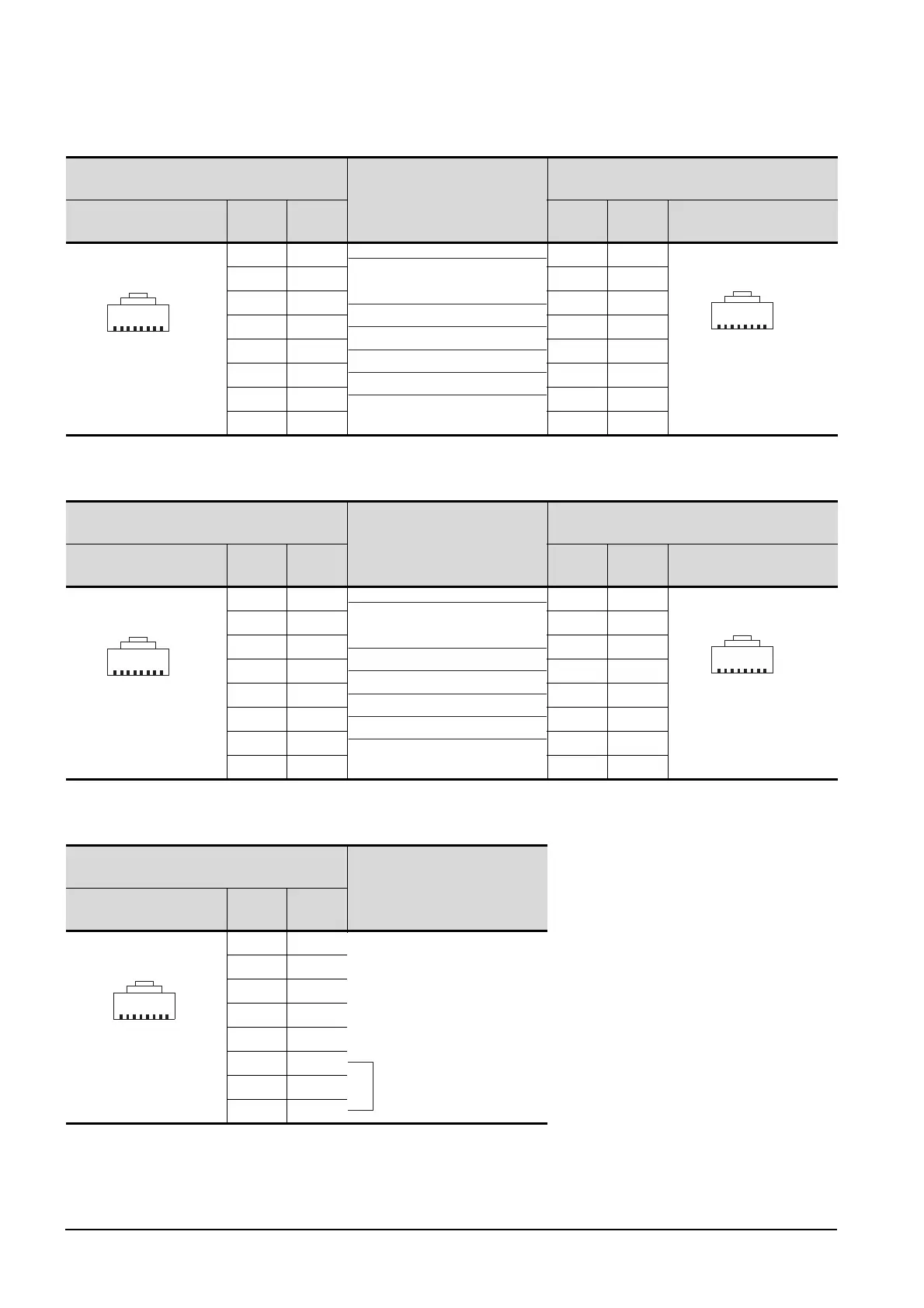

24.2 Connection Cable
24.2.2 RS-422 cable
(3) RS-422 cable 4)
*1 The pin layout shows the engagement face.
(4) RS-422 cable 5)
*1 The pin layout shows the engagement face.
(5) RS-422 cable 6)
*1 The pin layout shows the engagement face.
Servo amplifier side or distributor side
(Modular connector)
cable connection
Distributor side
(Modular connector)
Pin layout
*1
Signal
name
Pin No.
Pin
wiring
Signal
name
Pin layout*1
1 LG 1 LG
2 P5 2 P5
3 RDP 3 RDP
4 SDN 4 SDN
5 SDP 5 SDP
6 RDN 6 RDN
7 LG 7 LG
8 TRE 8 TRE
Servo amplifier side or distributor side
(Modular connector)
cable connection
Distributor side
(Modular connector)
Pin layout
*1
Signal
name
Pin No.
Pin
wiring
Signal
name
Pin layout*1
1 LG 1 LG
2 P5 2 P5
3 RDP 3 RDP
4 SDN 4 SDN
5 SDP 5 SDP
6 RDN 6 RDN
7 LG 7 LG
8 TRE 8 TRE
Distributor side
(Modular connector)
cable connection
Pin layout
*1
Signal
name
Pin No.
1LG
2P5
3 RDP
4SDN
5SDP
6RDN
7LG
8TRE
PJ-45 plug(male)
18
PJ-45 plug(male)
18
PJ-45 plug(male)
18
PJ-45 plug(male)
18
PJ-45 plug (male)
18
