3. Tap ok to exit settings.
Sys Stat
Use the Sys Stat tab to view system information.
1. Tap Start > Settings > Personal tab > Phone icon > Sys Stat tab.
or
Start > Phone > Tools > Options > Phone Info tab.

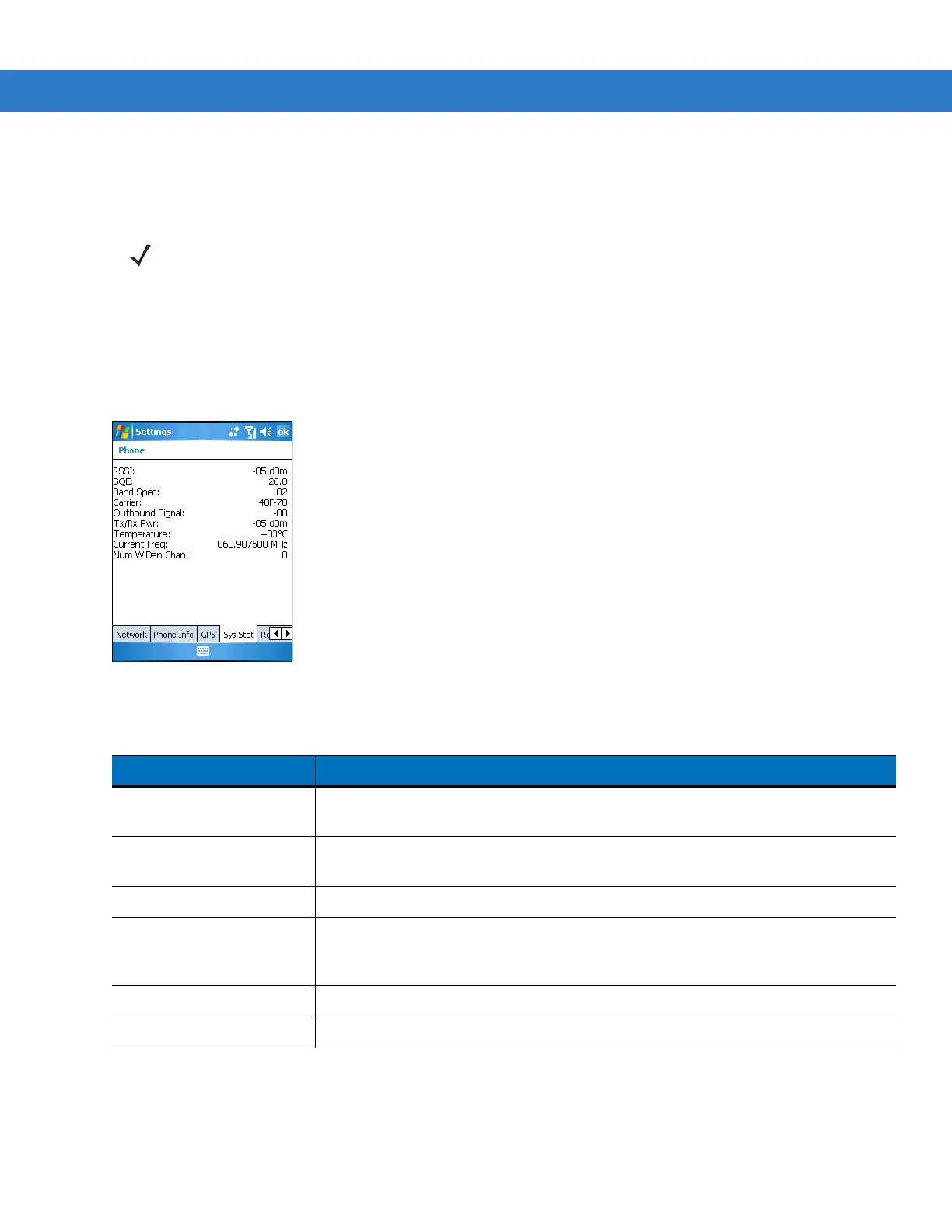

Figure 6-21
MC9097 Phone Window - Sys Stat Tab
NOTE This property page is for diagnostics only and is not visible by default. To display this property page, navigate
to the Windows directory using File Explorer and launch the PropertyPages.exe file. Follow the on-screen
instructions for installation. To remove the property page clean boot the device.
Table 6-2
Sys Stat Tab Data
Item Description
RSSI Lists the Received Signal Strength Indicator in dBm. Usually between -104 and -80.
-80 is a very strong signal and -104 is very weak.
SQE Lists the Signal Quality estimate. Gives a measure of signal quality where RSSI gives
a measure of signal strength. Values around 20 are good.
Band Spec Lists the Band Specifier that restricts the modem to a certain band of frequencies.
Carrier Lists the current frequency that the modem is tuned into and is interpreted as:
XXX-YZ where XXX is the carrier number, Y is the color code and Z is the extended
color code.
Outbound Signal Lists the signal quality of the received RF signal.
Tx/Rx Pwr Duplicate of RSSI field.
