2 - 6 MC909X Integrator Guide
•
Charges the mobile computer’s battery.
•
Charges a spare battery.

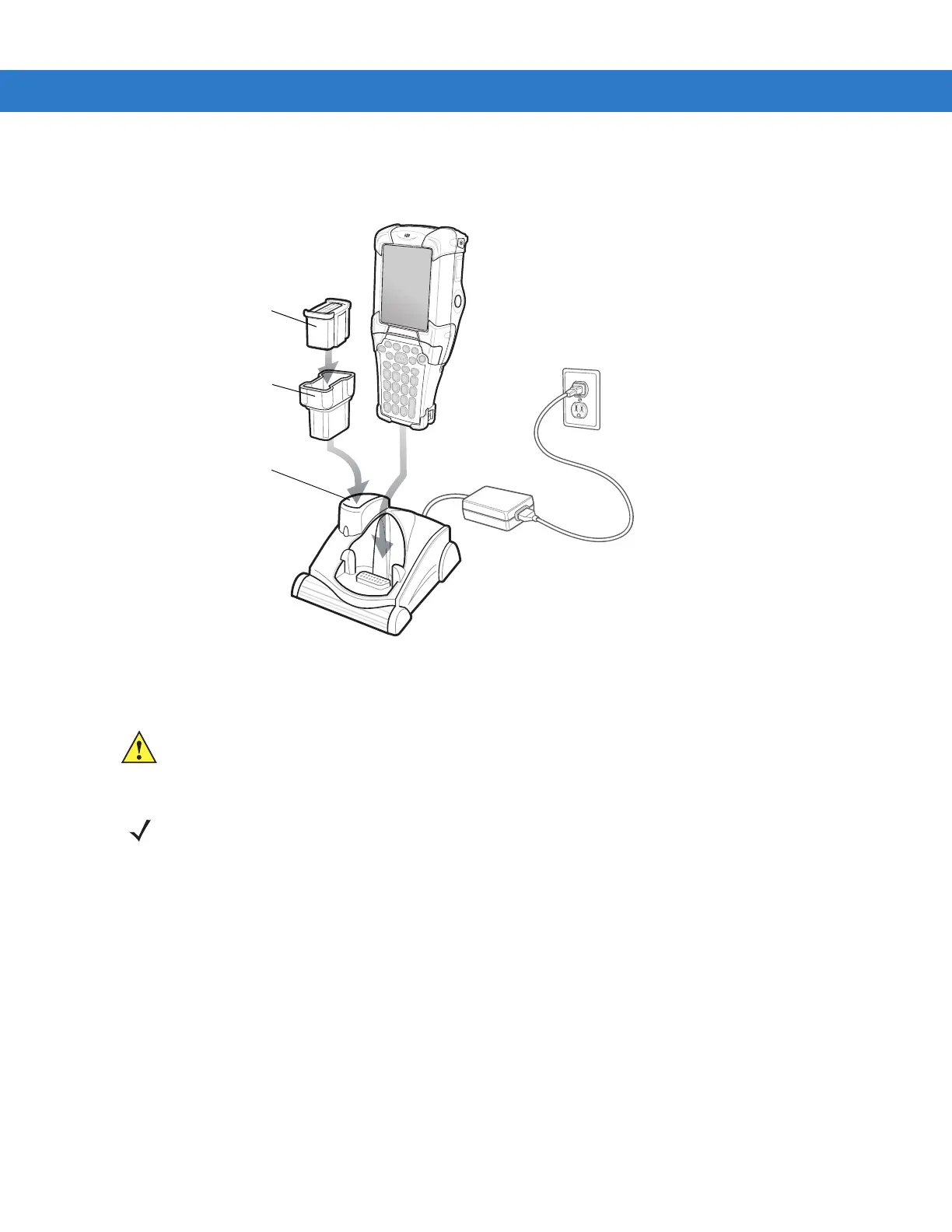

Figure 2-5
MC909X-S Spare Battery Charging
Setup
MC909X-S Battery
Short Battery Adapter
(P/N BAP9000-100)
Spare Battery
Charging Well
CAUTION Use only a Symbol approved power supply output rated 12 VDC and minimum 3.3 A. Use of an alternative
power supply will void the product warranty and may cause product damage. Refer to the MC909X User
Guide for the power supply regulatory compliance statement.
NOTE The cradle requires a dedicated port on the host. Select either serial or USB for communications. Do not
connect the cradle to both serial and USB ports.
To Next Page
