2 - 26 MC909X Integrator Guide
Universal Battery Charger (UBC) Adapter
This section describes how to use the UBC adapter to charge a spare battery.
The UBC can be used with a power supply as a standalone spare battery charger or it can be used with the four
station UBC2000 to provide charging to simultaneously charge up to four spare batteries. For additional
information about the UBC2000, see the UBC 2000 Universal Battery Charger Product Guide (p/n 70-33188-xx)
.

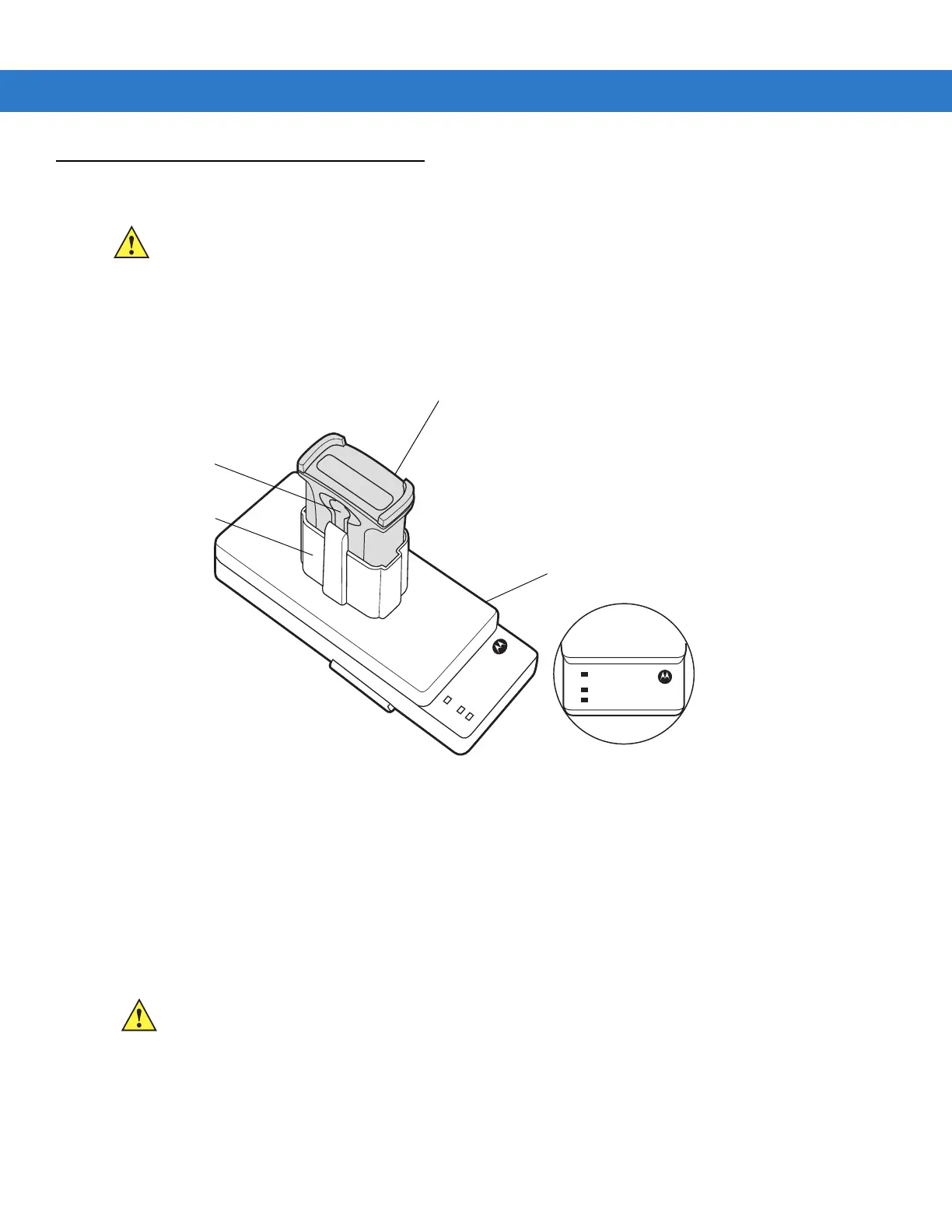

Figure 2-27
UBC Adapter
Inserting and Removing a Battery
Insert the battery into the battery well with the charging contacts facing down (over charging pins) and gently press
down on the battery to ensure proper contact.
To remove the battery, press the battery release and lift battery out of the well.
Setup
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
10-1.
POWER
READY or STANDBY or FAULT
CHARGING
(Green) (Flashing Yellow) (Solid Yellow)
(Solid Yellow)
UBC Adapter
Battery Release
Battery
Battery Well
CAUTION Use only a Symbol approved power supply output rated 15 VDC and minimum 1.5 A. Use of an alternative
power supply will void the product warranty and may cause product damage. Refer to the MC909X User
Guide for the power supply regulatory compliance statement.
