Getting Started 2 - 21
Attaching and Removing
To attach, snap the MSR onto the bottom of the mobile computer.

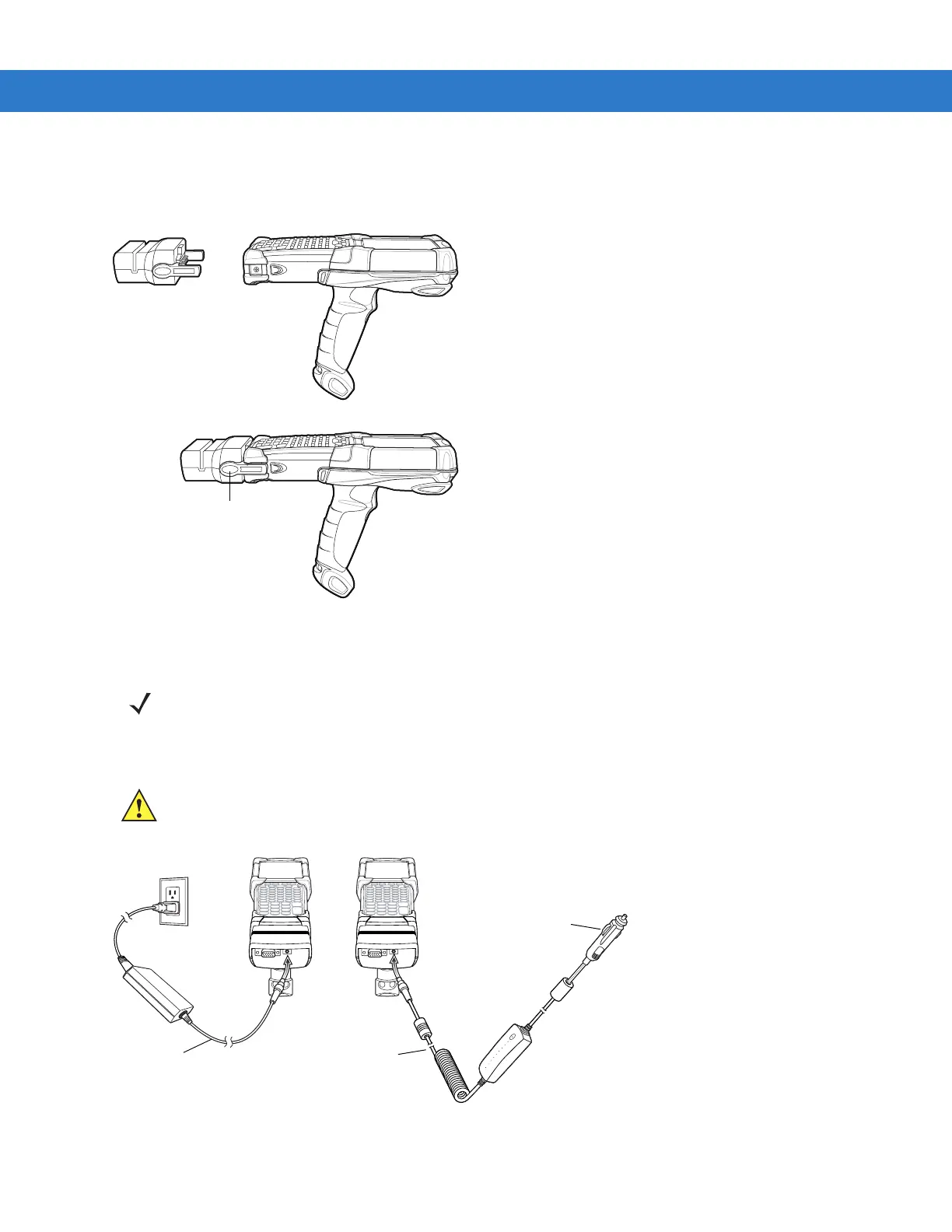

Figure 2-19
Attaching the MSR
To remove, squeeze the latch grips and pull the MSR from the mobile computer.
Setup
Figure 2-20
MSR Power Connection
Latch Grip
(one on each side)
NOTE Remove the MSR from the bottom of the mobile computer before using a cradle for charging and
communication.
CAUTION Use only a Symbol approved power supply output rated 12 VDC and minimum 3.3 A. Use of an alternative
power supply will void the product warranty and may cause product damage. Refer to the MC909X User
Guide for the power supply regulatory compliance statement.
Vehicle Power
Supply
AC Power
Supply
Into Cigarette
Lighter
To Next Page
