Technical Specifications A - 9
Accessory CAM and MSR Pin-Outs

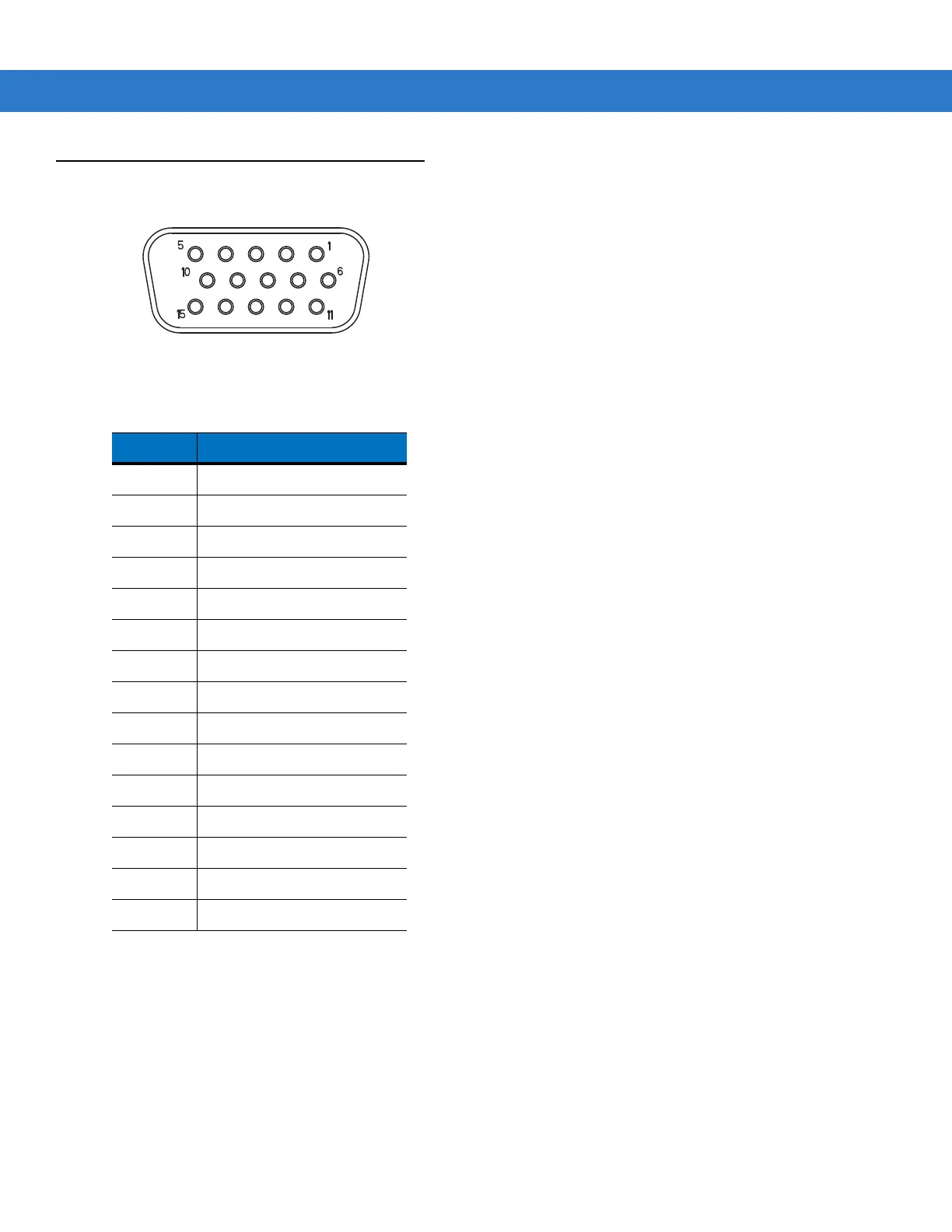

Figure A-2
CAM and MSR Serial Connector
Table A-5
CAM and MSR Serial Connector Pin-outs
Pin Signal
1 USB_5V_DET
2 USB_D_MINUS
3 USB_D_PLUS
4GND
5GND
6 PWR_EXT_OUT
7 CRADLE_DET*
8DSR
9DCD
10 TXD
11 CTS
12 DTR
13 RI
14 RTS
15 RXD
