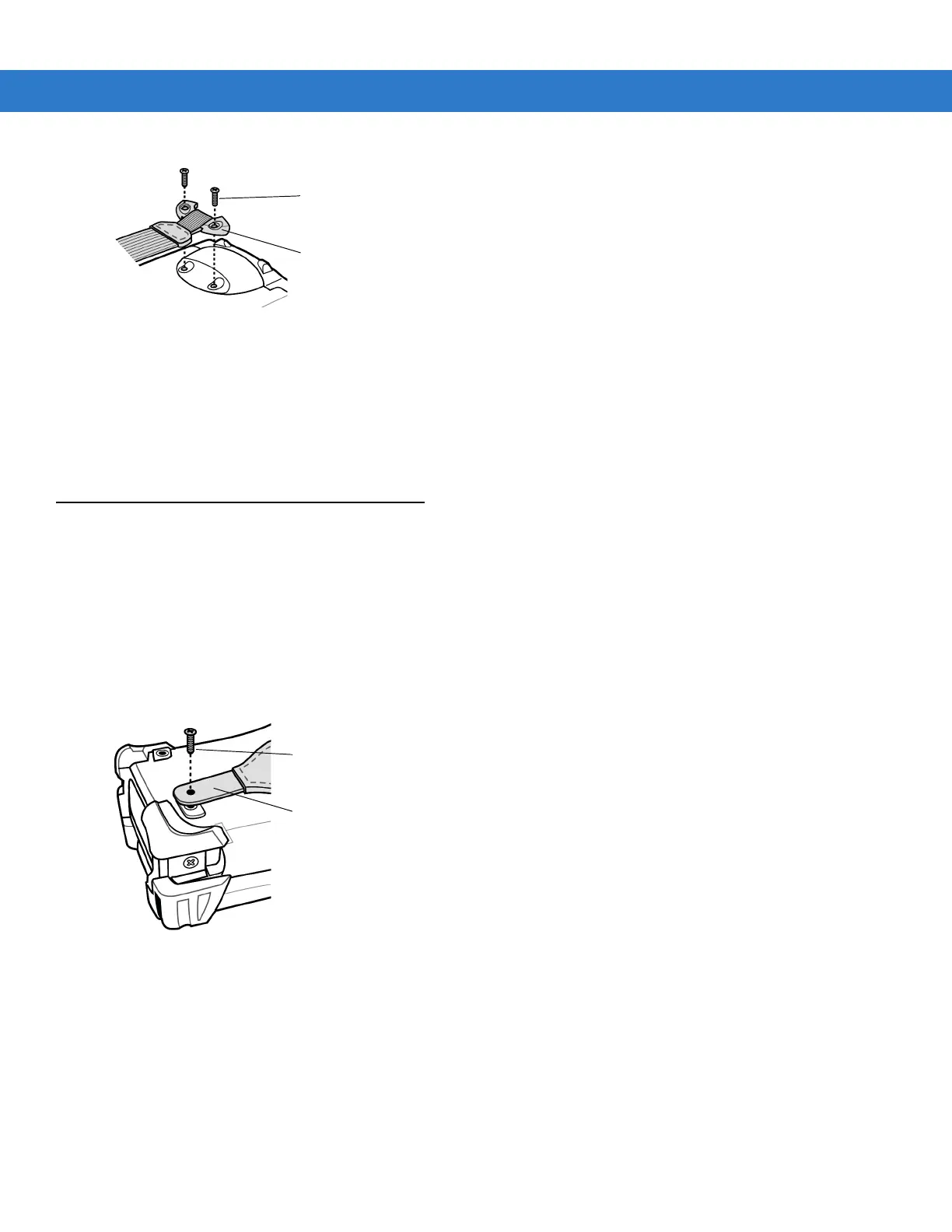

Getting Started 1 - 19
Figure 1-15
Remove Strap Bracket
2. Lift the loop end of the strap over the button.
3. Pull the loop through the connection post.
4. Remove the battery.
5. Reverse the procedure to re-attach the strap.
MC909X-S Strap
The strap may be moved to either the left or right side of the mobile computer to suit user preferences. To
reposition the MC909X-S strap, attach the MC909X-S strap to either the left or right side of the mobile computer to
suit user preferences. To reposition the strap:
1. Remove the screw securing the bottom of the strap to the device.
2. Position the bottom end of the strap over the opposite screw hole.
3. Secure the strap to the device.
Figure 1-16
Repositioning the MC909X-S Strap
To replace the handstrap:
1. Remove two screws securing the strap bracket to the device.
Screws
Strap Bracket
Screw
Strap Bracket
