2 - 24 MC909X Integrator Guide
•
Provides serial connection through the serial pass-through port for communication with a serial device, such
as a host computer. For communication setup procedures, see Serial Communication Setup on page 2-44.
•
Provides USB connection through the USB pass-through port for communication with a USB device, such as
a host computer. For communication setup procedures, see Serial Communication Setup on page 2-44.
•
Charges the mobile computer’s battery, when used with the appropriate power supply.
Attaching and Removing
To attach, snap the CAM onto the bottom of the mobile computer.

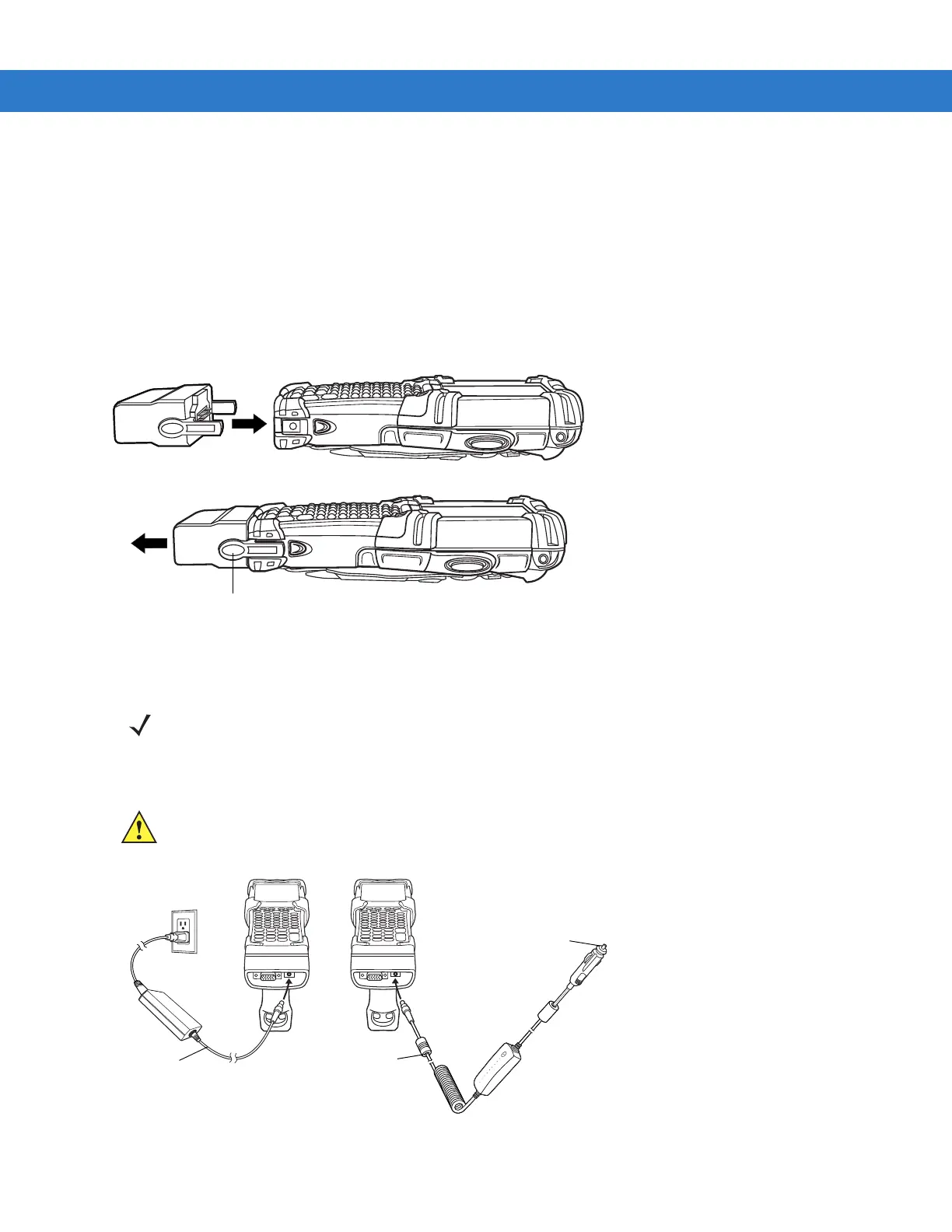

Figure 2-24
Attaching the CAM (MC909X-K shown)
To remove, squeeze the latch grips and pull the CAM from the mobile computer.
Setup
Figure 2-25
CAM Power Connection
Latch Grip
(one on each side)
NOTE Remove the CAM from the bottom of the mobile computer before using a cradle for charging and
communication.
CAUTION Use only a Symbol approved power supply output rated 12 VDC and minimum 3.3 A. Use of an alternative
power supply will void the product warranty and may cause product damage. Refer to the MC909X User
Guide for the power supply regulatory compliance statement.
Vehicle Power
Supply
AC Power
Supply
Into Cigarette
Lighter
To Next Page
