Application Deployment for WinCE 5.0 7 - 11
5. Click OK and follow the on-screen instructions.
If one of the partitions being built is the ESSID, a prompt appears requesting the ESSID value. Deselect the
HR (High Rate) check box when building ESSID images for a device with an FH radio.

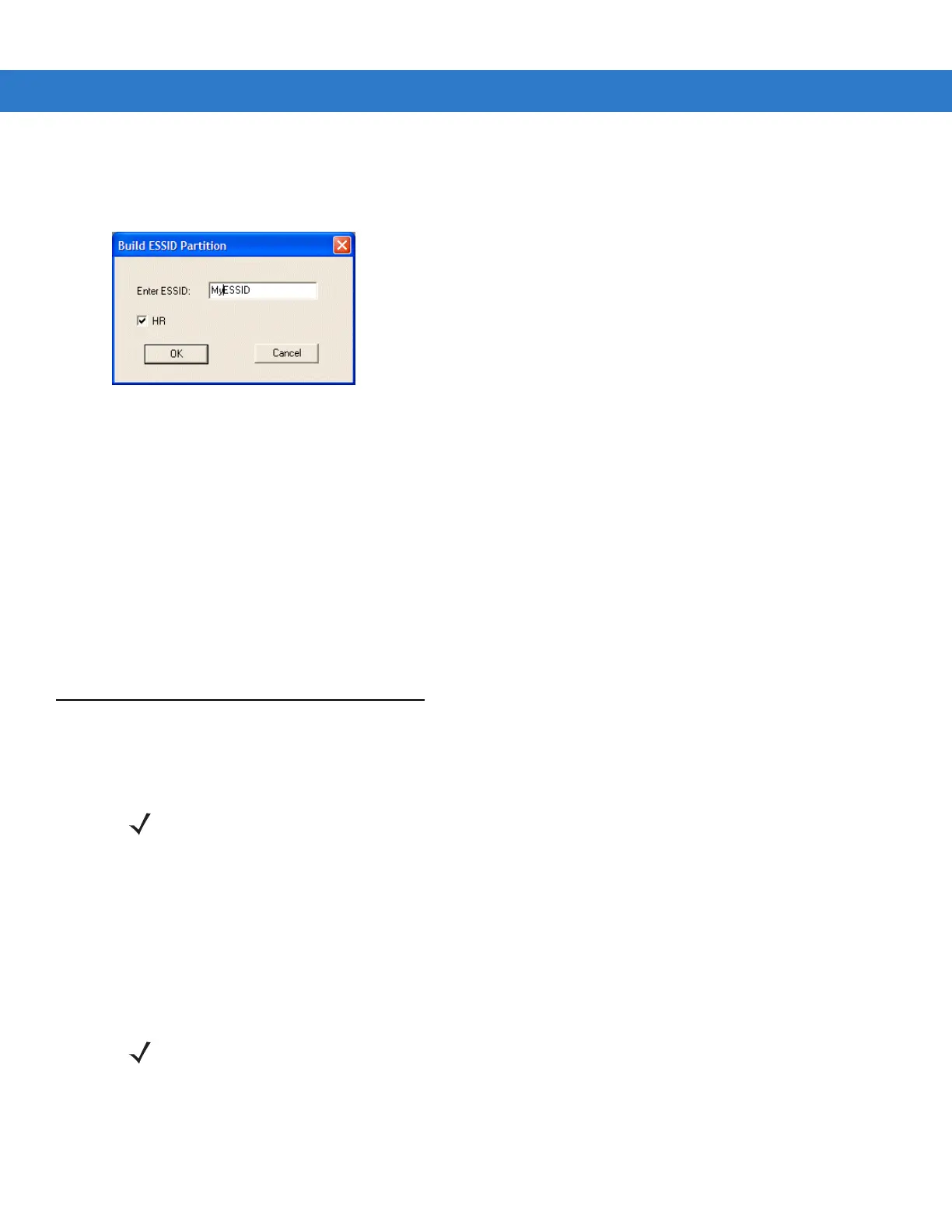

Figure 7-8
Build ESSID Partition Window
If one of the partitions being built is the Splash Screen, a prompt appears requesting both the source Bitmap
file and the destination HEX file.
6. A check is performed and if there are no errors, the partition hex files are created.
If the build fails, the hex files are not be created and TCM displays an error message. Two of the most common
reasons for a build failure are:
•
Files defined in the script can not be found. This error can occur when the files referenced by the script are
no longer stored on the development computer or the folders where they are stored were renamed.
•
The total amount of flash memory space required by the script exceeds the image size. To correct this,
reduce the number of files in the partition or increase the size of the partition. See Defining Script Properties
on page 7-8 for more information about setting the image size appropriately.
Sending the Hex Image Using IPL
Once the hex file is built, it can be downloaded to the mobile computer using IPL.
1. Press the battery eject button to release the battery but do not remove completely.
2. Press and hold the trigger and the Power button while re-inserting the battery until the mobile computer resets
into IPL.
3. Release the power button while holding down the trigger.
4. Insert the mobile computer into cradle or connect CAM while continuing to hold the trigger.
5. Release the trigger. The Initial Program Loader menu appears.
NOTE If you are using an SD/MMC memory card to load a hex image onto the mobile computer, you must first copy
the files to the SD/MMC card and install the card into the memory slot under the keyboard. See Multi Media
Card (MMC) / Secure Device (SD) Card on page 2-4 for instructions for installing an SD/MMC card.
NOTE The mobile computer must be inserted in the cradle or attached to the CAM, both with their appropriate power
supplies connected to a power source, for the mobile computer to reset into IPL.
