A - 10 MC909X Integrator Guide
Non-Incendive Devices
Hazardous (Classified) Location Class I, Division 2, Groups A, B, C & D
Selected associated non-incendive field wiring apparatus shall satisfy the following:
Pin 17 to Pin 8 Pins 3, 6, or 10 to Pin 8 Pin 17 to Pin 8 Pins 3, 6, or 10 to Pin 8
Vmax = 3.37 VDC Vmax =5.6 VDC Voc = 3.37 VDC Voc =5.6 VDC
Imax = 850 mA Imax = 31 mA Isc = 850 mA Isc = 31 mA
Ci = 100
μ
F Ci = 200
μ
F Ca = 73
μ
F Ca = 200
μ
F
Li = 0.35
μ
H Li = 100
μ
H La = 12
μ
H Li = 100
μ
H

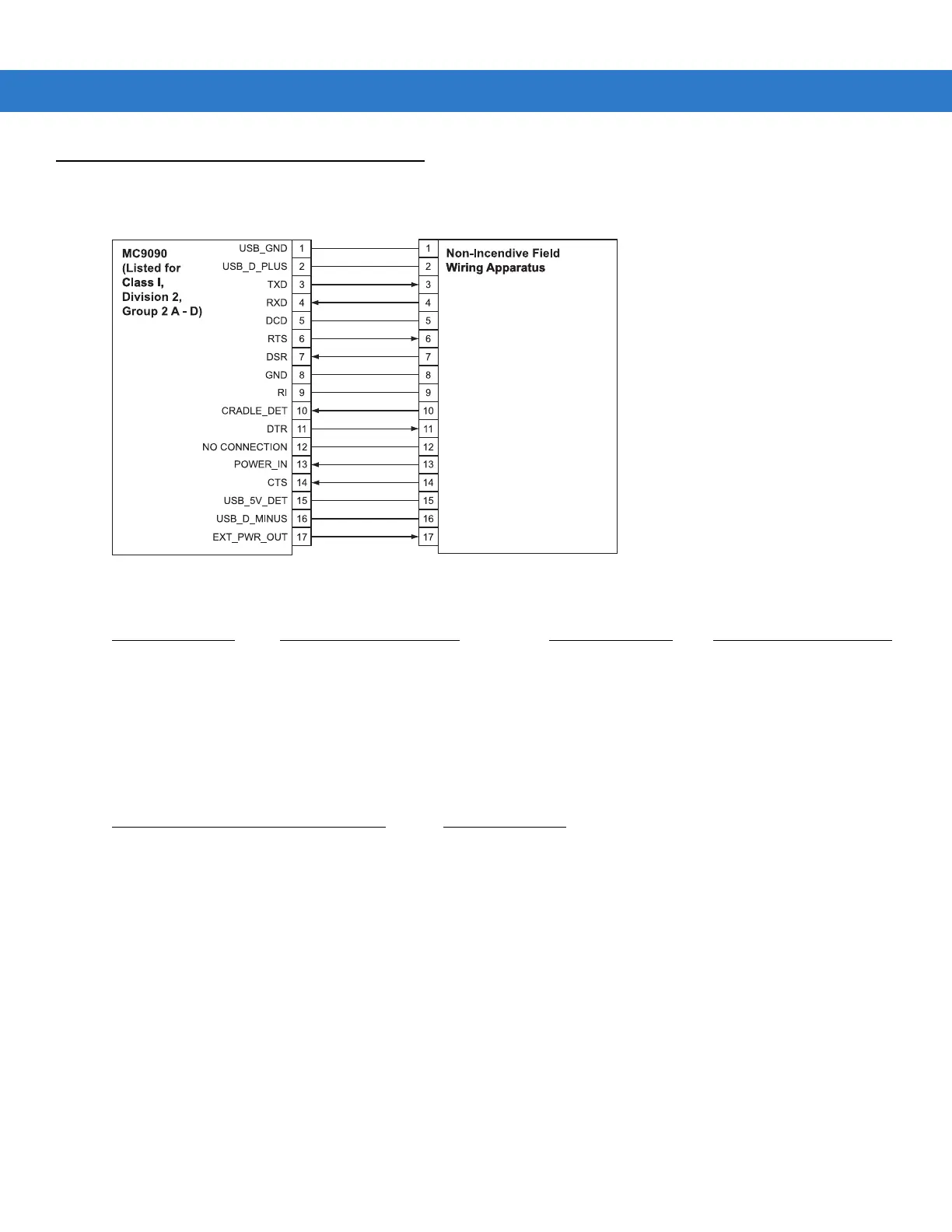

Non-Incendive Field Wiring Apparatus MC9090
Voc
≤
Vmax
Isc
≤
Imax
Ca
≥
Ci
La
≥
Li
Vmax
≥
Voc
Imax
≥
Isc
Ci
≤
Ca
Li
≤
La
