2 - 30 MC909X Integrator Guide
Connecting to the Single Slot Serial/USB Cradle

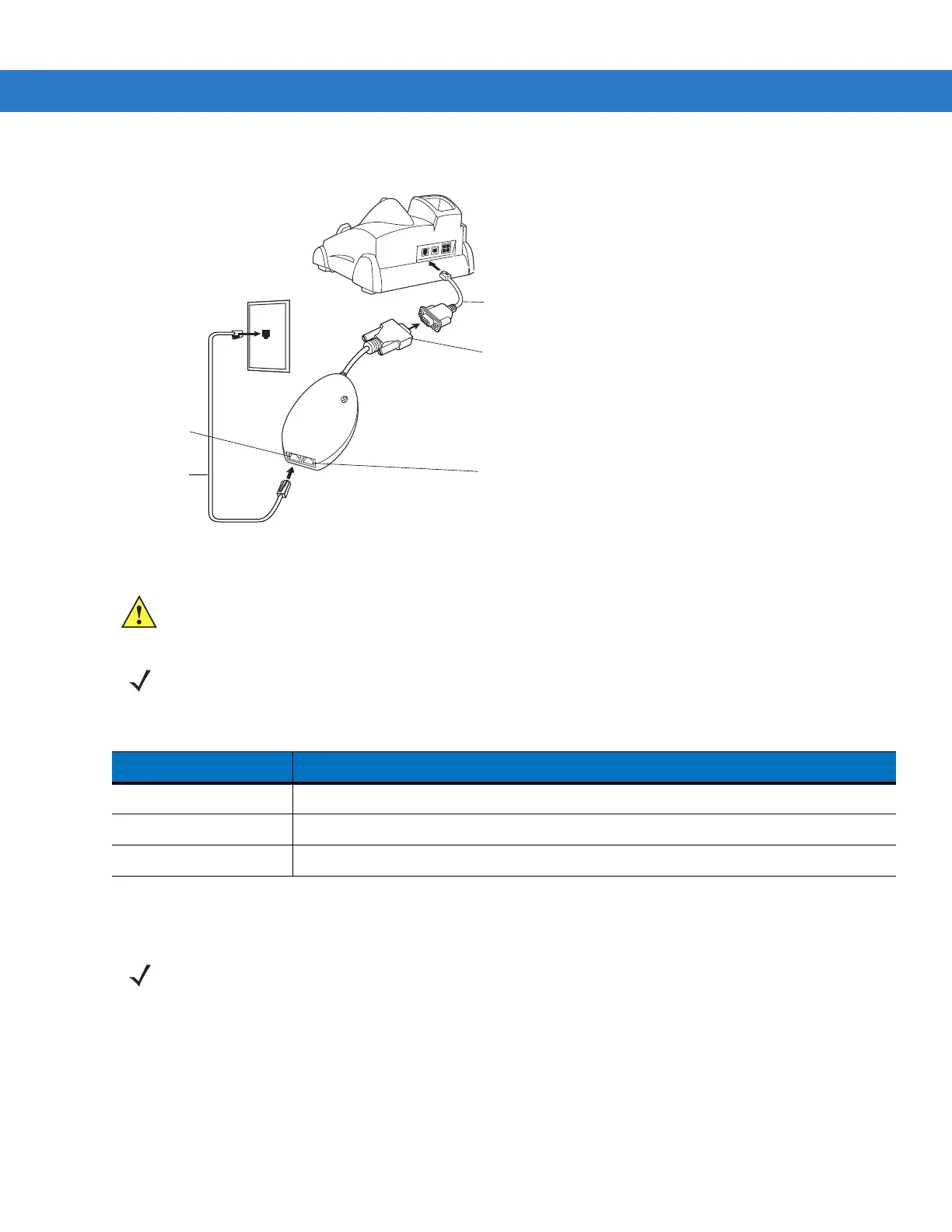

Figure 2-32
Modem Module Connection - Single Slot Serial/USB Cradle
Configuring the Mobile Computer for the Modem (Windows Mobile 5.0)
To create a new modem connection on the mobile computer:
1. Connect the modem to the mobile computer as described in Connecting to the Mobile Computer on page 2-29.
2. Tap Start > Settings > Connections tab > Connections icon.
3. In the Connections window, select Add a new modem connection to create a connection.
Adapter cable
Phone cord
Male 15-pin connector
Line In port
Phone port
CAUTION Do not connect the modem's 15-pin connector into a VGA port of a host computer.
NOTE If using a phone, connect the cord from the phone to the Phone port on the modem.
Table 2-8
Modem Indicators
LED Indication
Off Modem is not properly connected to the mobile computer; modem is not receiving power.
Green Modem is connected to the mobile computer and is receiving power.
Solid Amber Mobile computer is communicating with the host computer.
NOTE To edit an existing modem connection using Manage existing connections, see Changing the Initialization
String (Windows Mobile 2005) on page 2-36.
