Getting Started 2 - 17
Setup

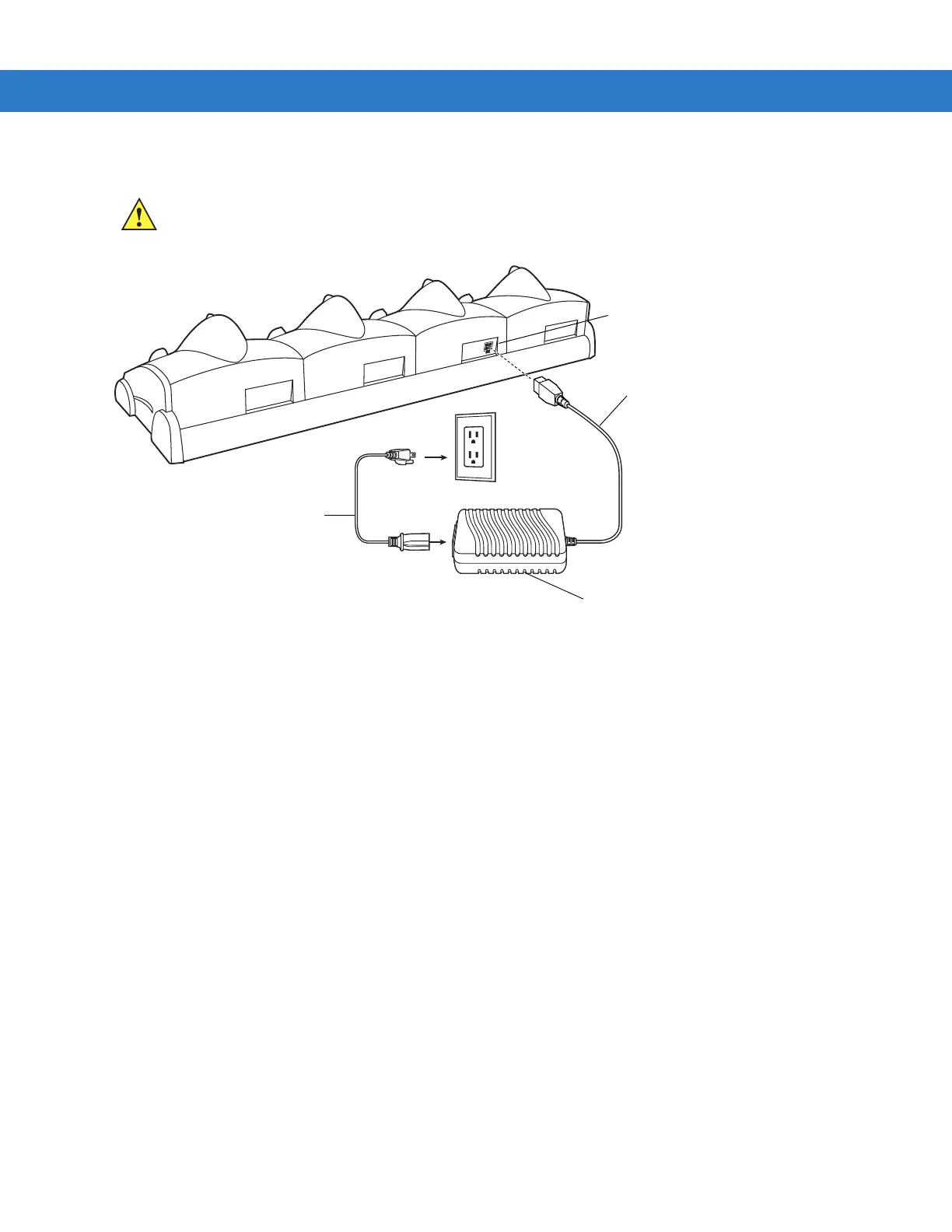

Figure 2-15
Four Slot Charge Only Cradle Power Connection
Battery Charging Indicators
The mobile computer’s amber charge LED, located in the Indicator LED Bar, shows the status of the battery
charging in the mobile computer. See Table 1-2 on page 1-8 for charging status indications. The battery usually
charges in less than four hours.
CAUTION Use only a Symbol approved power supply output rated 12 VDC and minimum 9 A. Use of an
alternative power supply will void the product warranty and may cause product damage. Refer to the
MC909X User Guide for the power supply regulatory compliance statement.
AC Line Cord
Power Supply
DC Cable
Power Port
To Next Page
