Getting Started 2 - 7

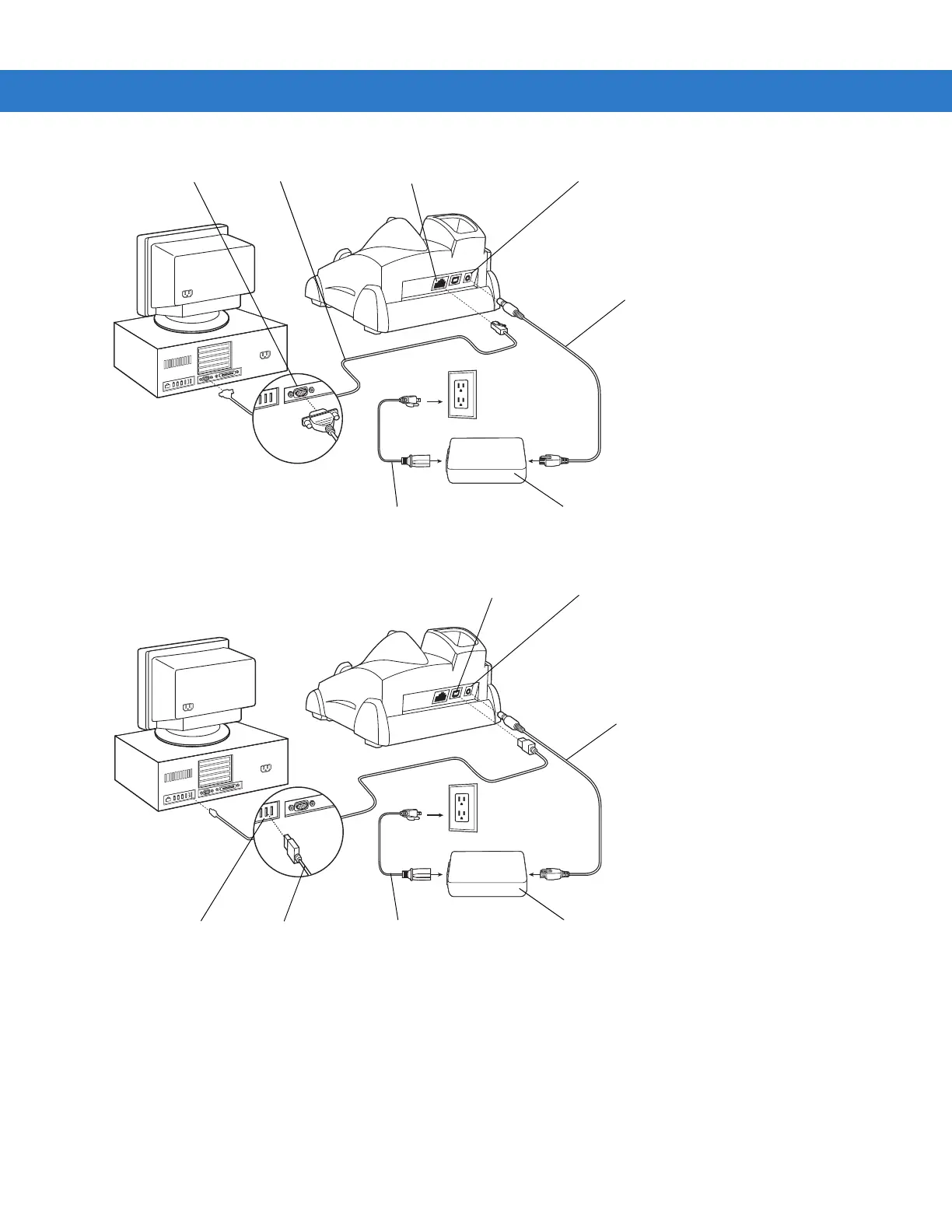

Figure 2-6
Single Slot Cradle Power/Serial Connections
Figure 2-7
Single Slot Cradle Power/USB Connections
Battery Charging Indicators
The Single Slot Serial/USB Cradle can charge the mobile computer’s main battery and a spare battery
simultaneously. The mobile computer’s amber charge LED, located in the Indicator LED Bar, shows the status of
the battery charging in the mobile computer. See Table 1-2 on page 1-8 for charging status indications. The amber
spare battery charging LED on the cradle (see Figure 2-4 on page 2-5) shows the status of the spare battery
charging in the cradle. See Table 2-1 for charging status indications. Batteries usually charge in less than four
hours.
Serial Port
Serial Port
DC Cable
AC Line Cord
Power Supply
Power Port
Serial Cable
USB Cable
USB Port
USB Port
DC Cable
AC Line Cord
Power Supply
Power Port
