Motorola MC909X - Serial Connection Setup (Windows CE 5.0)

2 - 46 MC909X Integrator Guide
12. Connect the mobile computer to the accessory being used for communication.
13. Power on the mobile computer.
14. If a partnership was already created between the host computer and mobile computer, synchronization occurs
automatically upon connection.
Serial Connection Setup (Windows CE 5.0)
1. On the mobile computer tap Start > Settings > Control Panel > PC Connection icon.

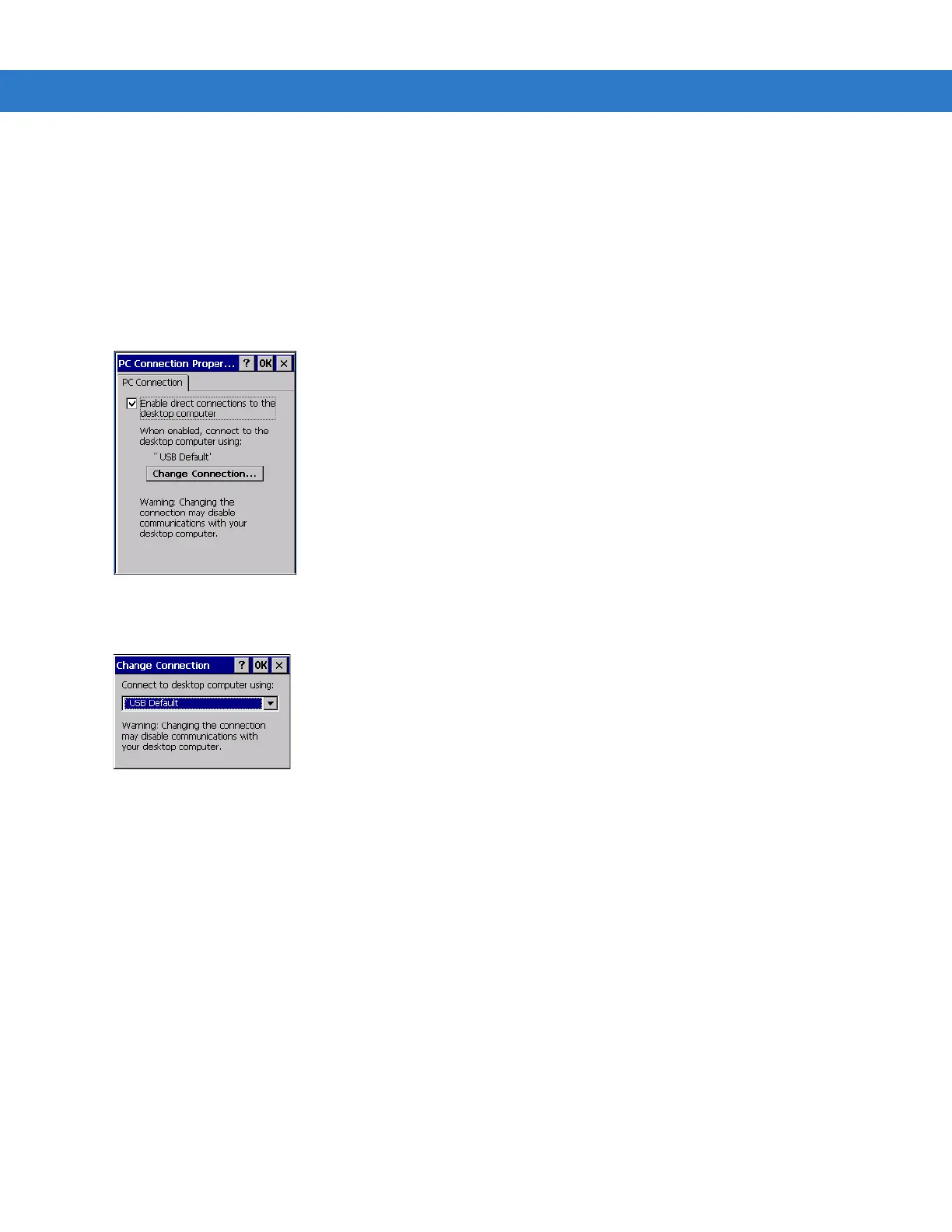

Figure 2-55 PC Connection Properties Window
2. Tap Change Connection... .
Figure 2-56 Change Connection Window
3. Select the serial communication type from the drop-down list.
4. Tap OK.
5. Tap OK.
6. Ensure that ActiveSync was installed on the host computer and a partnership was created.
7. Start ActiveSync if it is not running on the host computer. To start, select Start > Programs > Microsoft
ActiveSync
.
