2 - 10 MC909X Integrator Guide
Setup

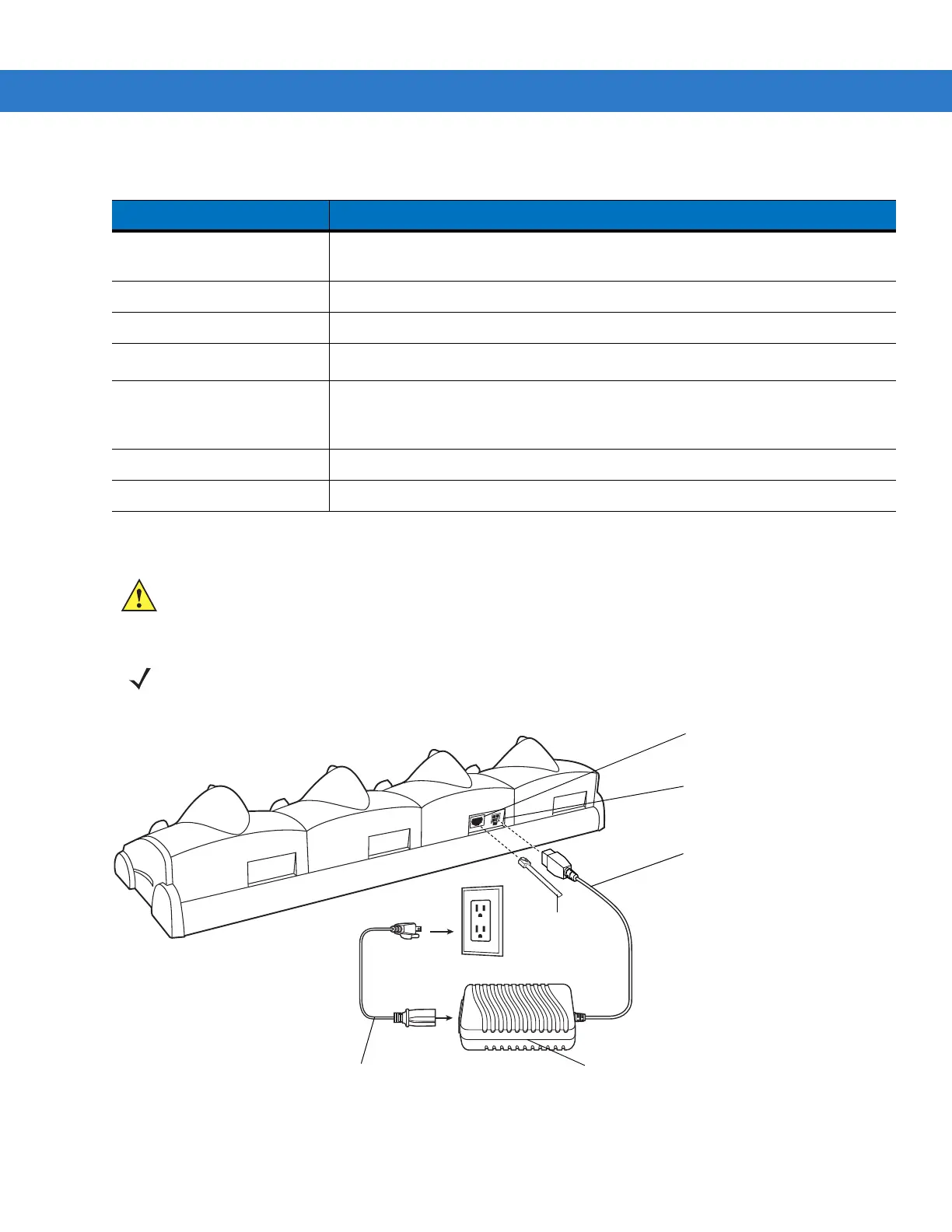

Figure 2-9
Four Slot Ethernet Cradle Power Connection
Table 2-2
Communication LED
Status Indication
Off Mobile computer is not in cradle; mobile computer not placed correctly; cradle is
not powered.
Solid Red Mobile computer is present, but communication has not started.
Flashing Green Mobile computer is in the cradle, and communicating with the host computer.
Slow Flashing Red
Error, communication did not start.
Fast Flashing Red Warning: Terminal inactivity time-out. The terminal did not finish data
synchronization or had an open connection for more than 15 minutes. This time is
programmable in the cradle flash parameters.
Solid Green Terminal is present in the slot and communication is complete.
All LEDs Flashing Red Failed automatic cradle configuration via local DHCP Service.
CAUTION Use only a Symbol approved power supply output rated 12 VDC and minimum 9 A. Use of an alternative
power supply will void the product warranty and may cause product damage. Refer to the MC909X User
Guide for the power supply regulatory compliance statement.
NOTE The Four Slot Ethernet cradle must be connected to a power source and to an Ethernet Hub (when
applicable).
AC Line Cord
Power Supply
DC Cable
To Ethernet
Hub
Power Port
Ethernet
Communication Port
To Next Page
