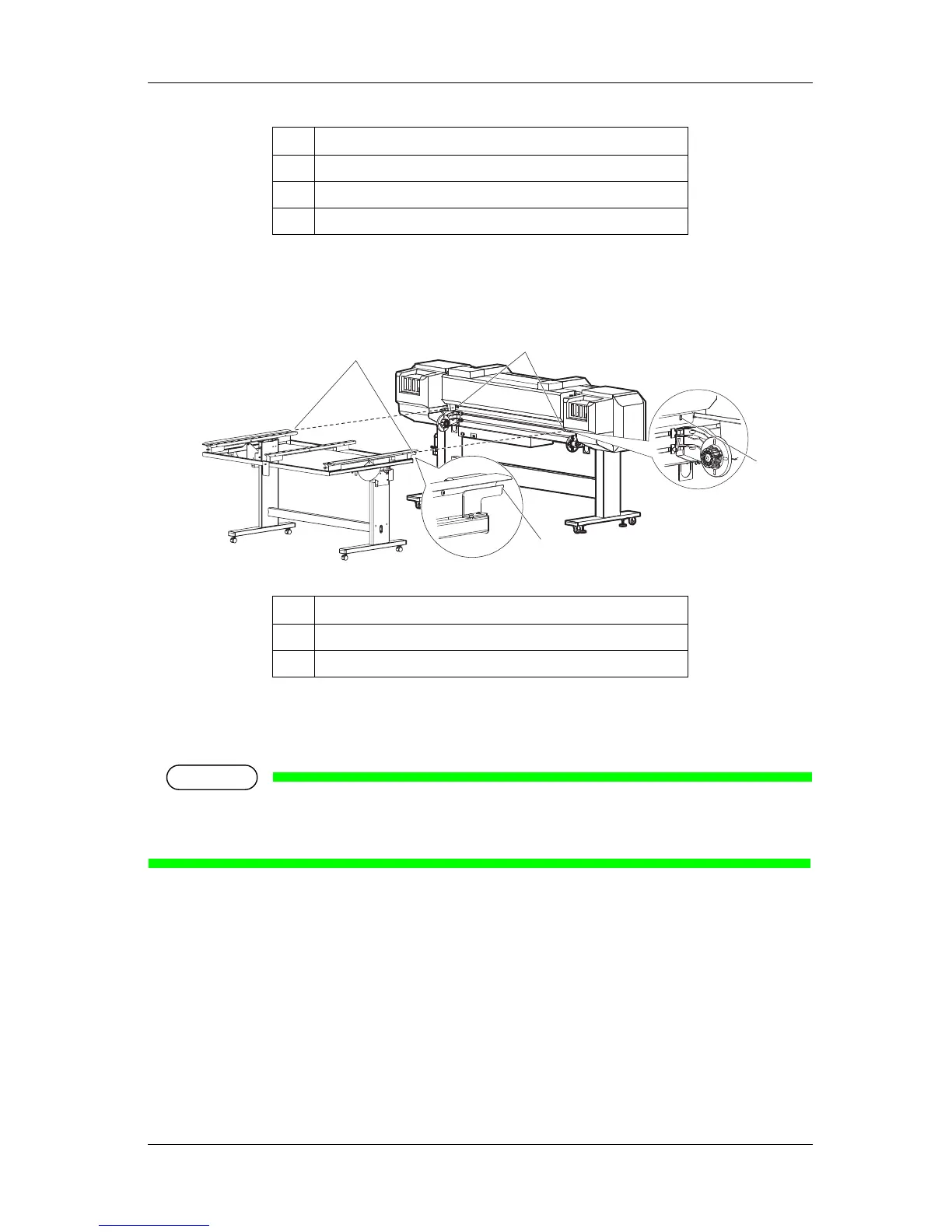

4. Insert the positioning guide of Media-feed table into the square hole of Paper guide R.
• If the height of the positioning guide does not match the square hole, turn the screw of Media-
feed table's caster, and adjust the height. (See step 5.)
5. Turn the screws on the caster of Media-feed table (2 places, ones closer to the printer) with a spanner.
Adjust so that there is a 6 mm gap between the top side of the square hole of Paper guide R and the
top side of the positioning guide.
NOTE
• Caster of Media-feed table has 2 types of screws. Turn the bottom screw.
• Turn the screw clockwise to raise Media-feed table.
No. Name
1 Media-feed table
2 Leveliong screw
3Frame
No. Name
1 Positioning guide
2 Square hole
1
2
2
1
