SleeperFeatures

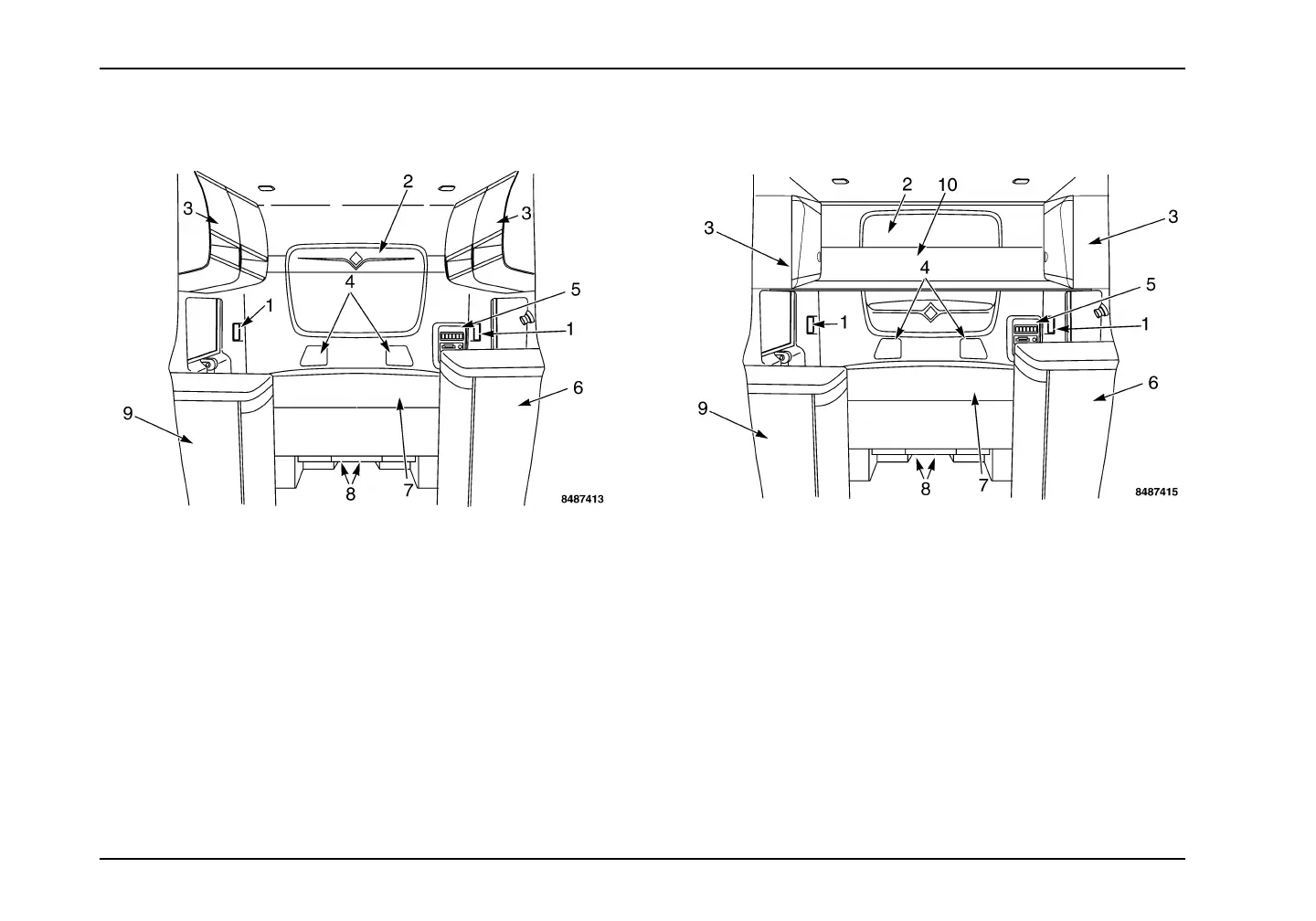

CommonfeaturesontheInternational

ProStar

+Series73-in

(185cm)longsleepermodelwithlowerbunk:

1.DuctWorkVents

2.RearWardrobeCabinet

3.AirlineCabinets

4.Speakers

5.ControlPanel

6.T owerCabinet

7.LowerBunk

8.UnderBunkStorageArea

9.RefrigeratorCabinetorDresserCabinet

10.UpperBunk

CommonfeaturesontheInternational

ProStar

+Series73-in

(185cm)longsleepermodelwithlowerandupperbunks:

NOTE:Althoughnotillustrated,thelongsleepermodels

areequippedwiththesamecupholdersandstoragetrays

(bothendsoflowerbunk)asillustratedfortheshortsleeper

model.

108
