Navistar ProStar+ - Typical Interior Fuse Panel Layout

To Next Page

To Previous Page

MaintenanceIntervalsandSpecications

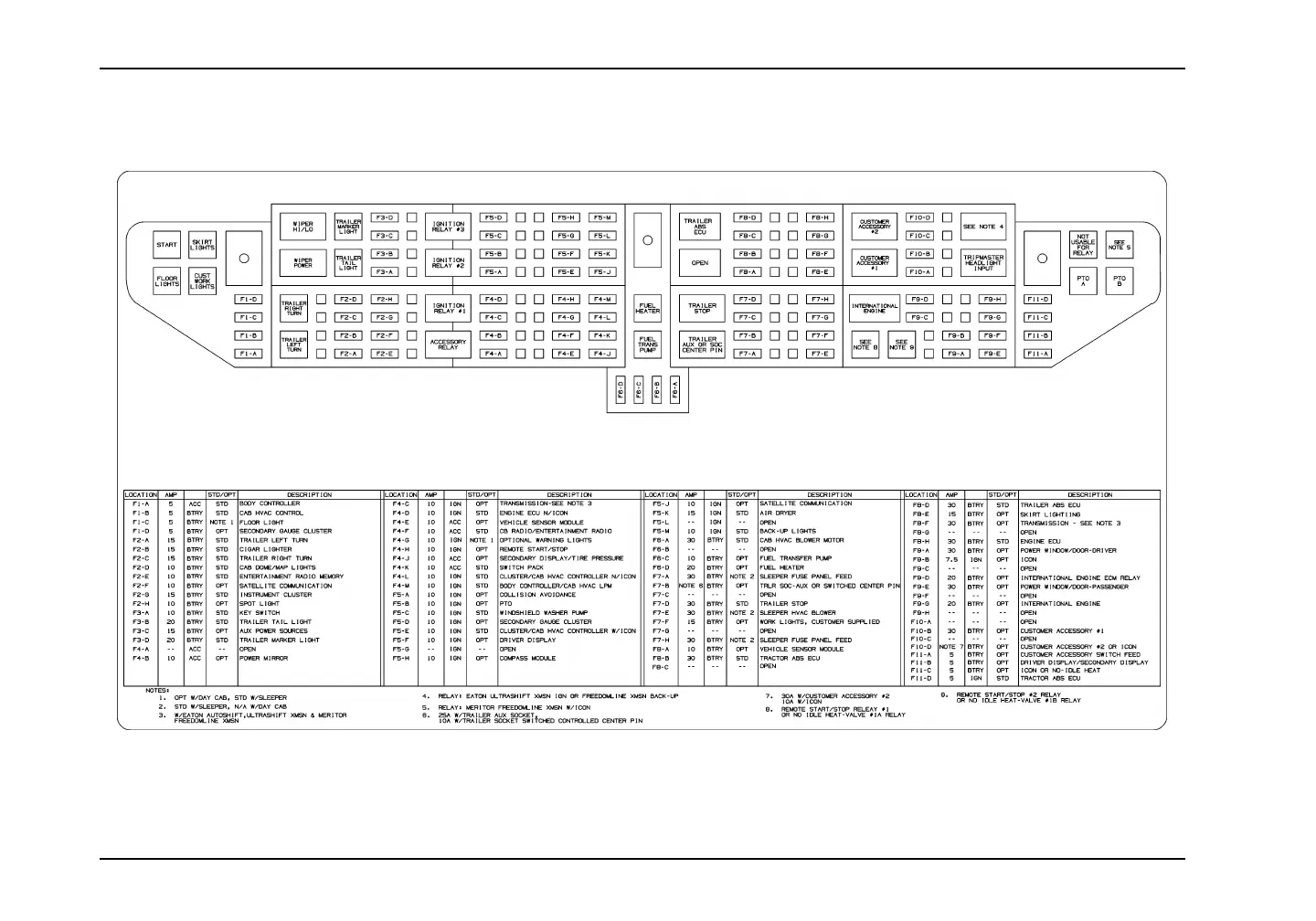

TypicalInteriorFusePanelLayout

NOTE:F11-D,Wabco&Bendixbothwilluse10ampfuse

insteadof5ampfuse.

268
