Navistar ProStar+ User Manual

InspectionGuide

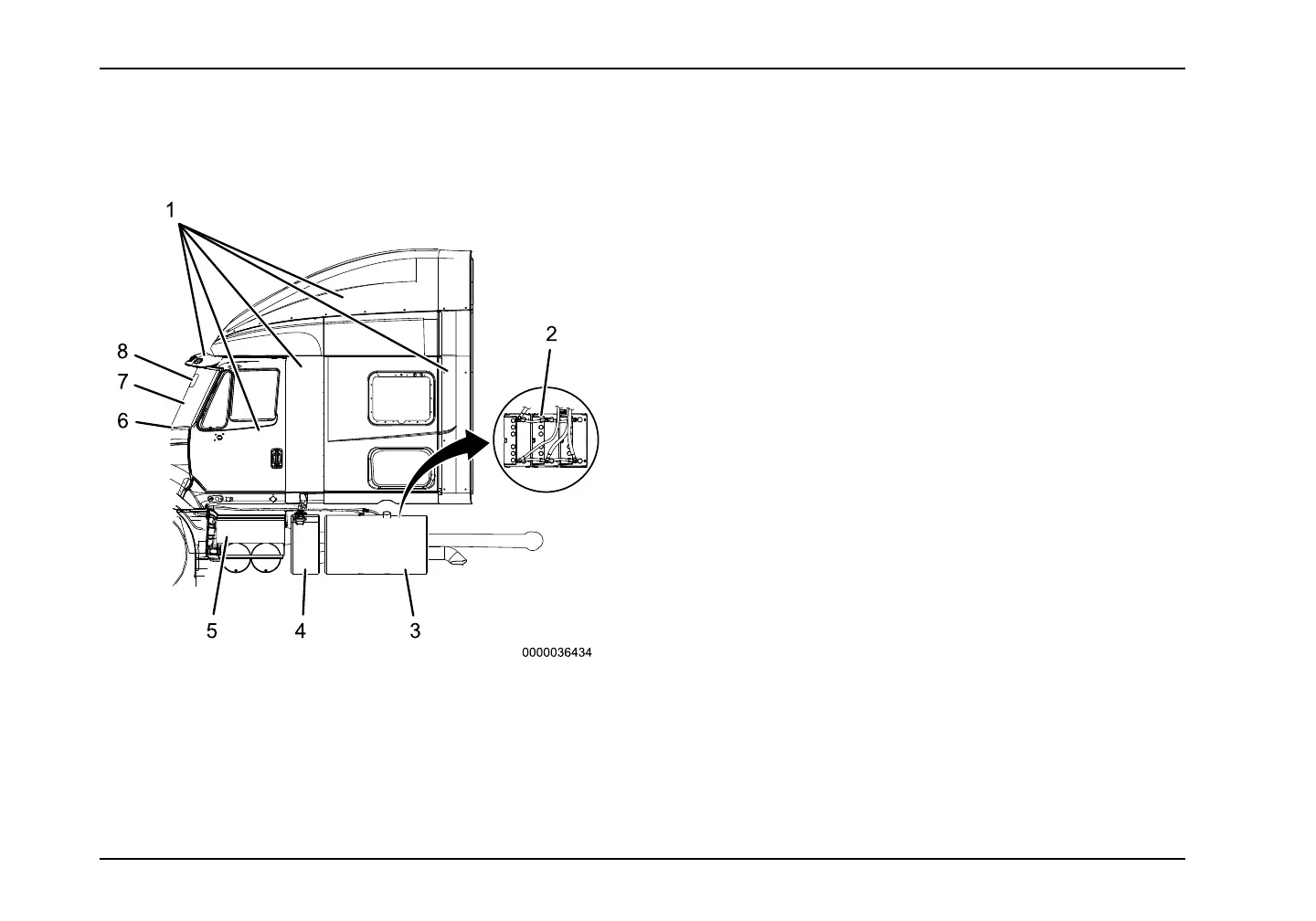

LeftSideCabArea(forVehiclesEquippedwithSelective
CatalyticReduction(SCR)System)
1.CabStructure
2.BatteriesandCables
3.BatteryBox
4.DieselExhaustFluid(DEF)T ank
5.FuelTank
6.Wipers
7.Windshield
8.Camera(Optional)
NOTE:Toaccessthebatterybox,ndtheplasticpanel
(batterydoor)behindtheupperstepundertheleftsidecab,
releasethelatches,andliftupthebatterydoor.
InspectionItems
1.CabStructure:Checkbodypanelssuchasdoors,
fairings,airshield,sunshade,andcabextendersfor
signsofbreaksordamage.Checkconditionofcab
mountingbracketsandtilthoodlatches.
2.BatteriesandCables:Checkthatbatteriesaresecured
andcasesarenotbrokenorleaking.Ensurecablesare
freefromdamage.Topsofbatteriesandterminalsmust
becleanandfreefromforeignmaterial.Replacebattery
boxcover.
3.BatteryBox:Inspectfordamageandsecuremounting
ofbatterybox.Removebatteryboxcover.
4.DieselExhaustFluid(DEF)T ank:Checktoseethatthe
DEFtankandcaparesecuredandmakesurethereare
noleaksordamageatthetank,DEFlines,orcoolant
lines.
5.FuelT ank(s):Checktoseethatthefueltank(s)and
cap(s)aresecuredandmakesuretherearenoleaks
ordamageatthetank(s)orfuellines.
6.Wipers:Checkwindshieldwiperarmsforproperspring
tensionandwiperbladesfordamage.
7.Windshield:Checkfordamagetowindshieldandclean
ifdirty.
8.Camera:Inspectfordamageandsecuremounting.
30
