SleeperFeatures

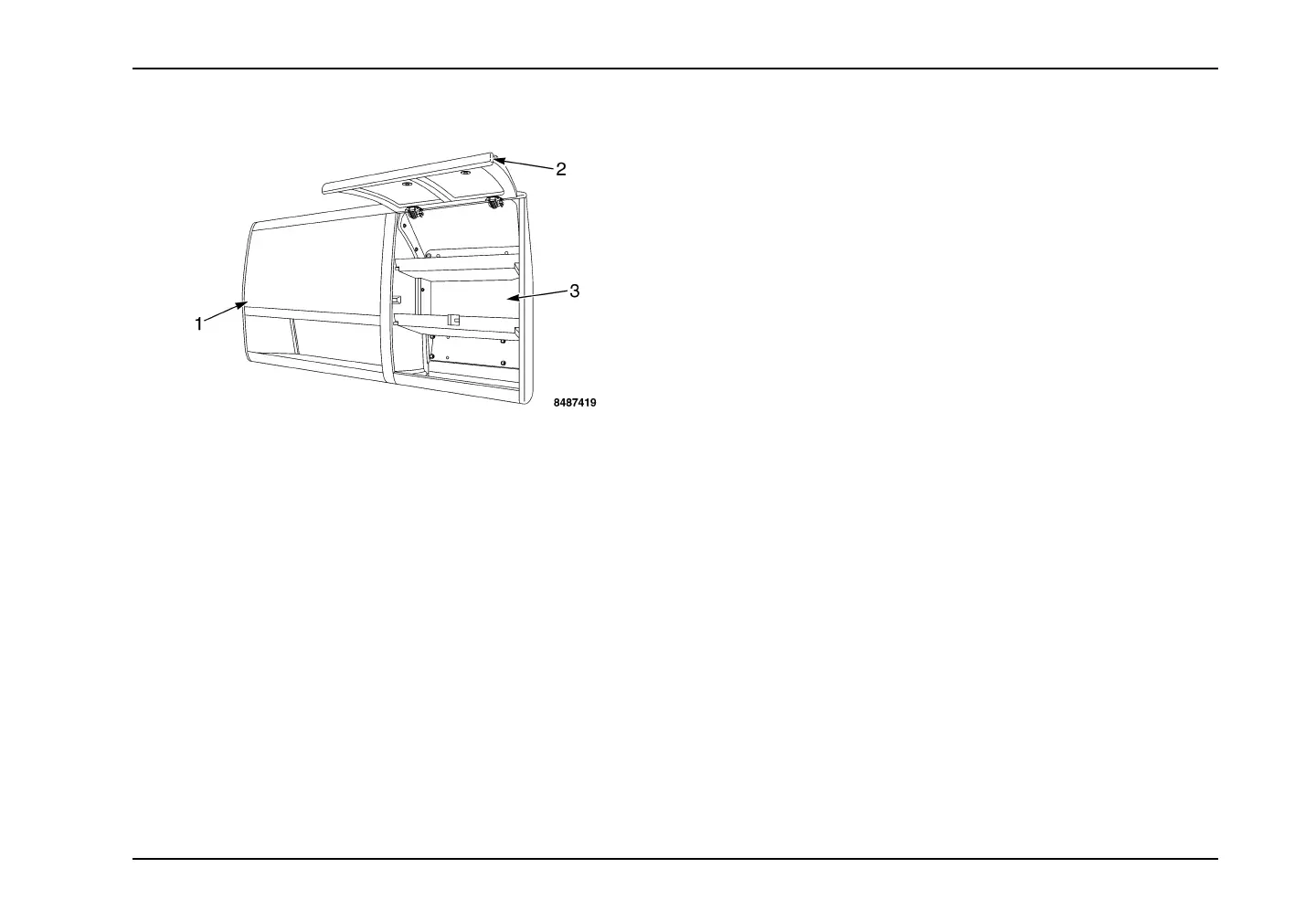

AirlineCabinets1.AirlineCabinets:Theseairline-stylecabinetsare

mountedatthetopofthesidewallsandcancomein

congurationsofone,two,orthreecabinetsoneach

sideofselectInternational

ProStar

+Seriessleeper

models.

2.Door:Eachairlinecabinetisprovidedwithitsown

pull-downdoortosecurestoreditems.

3.InteriorStorage:Interiorstorageisprovidedtosecure

itemsawayfromsightandpreventthemfrommoving

aroundwhilethevehicleisinmotion.

129
