MaintenanceIntervalsandSpecications

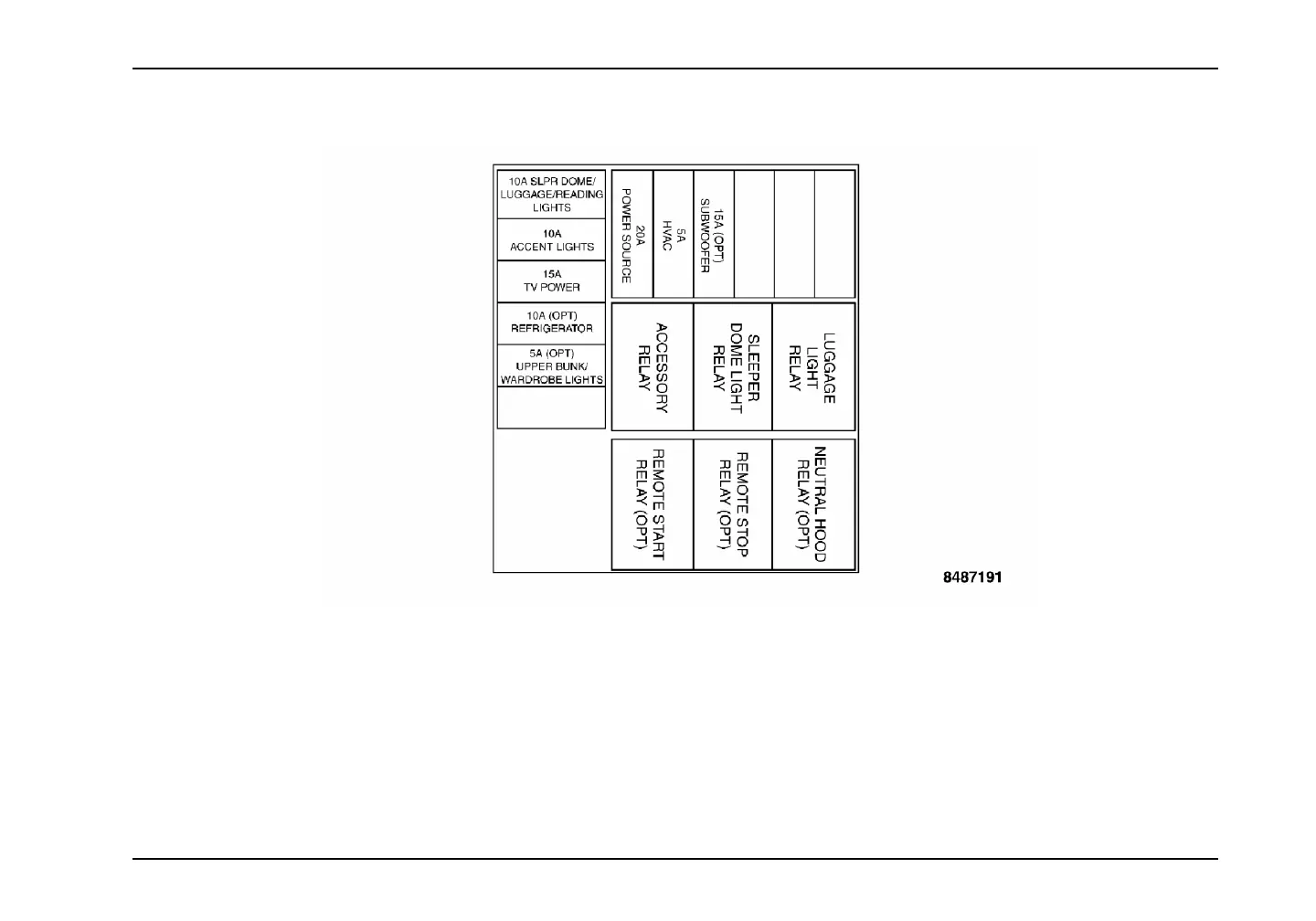

TypicalLuggageCompartmentFusePanelLayout

TypicalUnder-HoodPowerDistributionModule(PDM)

FusePanelLayout

OncertainProStar

+models,youcanndaPowerDistribution

Module(PDM)underthehoodinthedriver’sside.Itismounted

ontheaircleanerbracketandisimmediatelyunderneaththe

cowlpanel.Seethefollowingillustrationaboutthelocationof

theunder-hoodPDM.

269
