ForVehiclesEquippedwithSelectiveCatalyticReduction

(SCR)System:

WarningIndicators

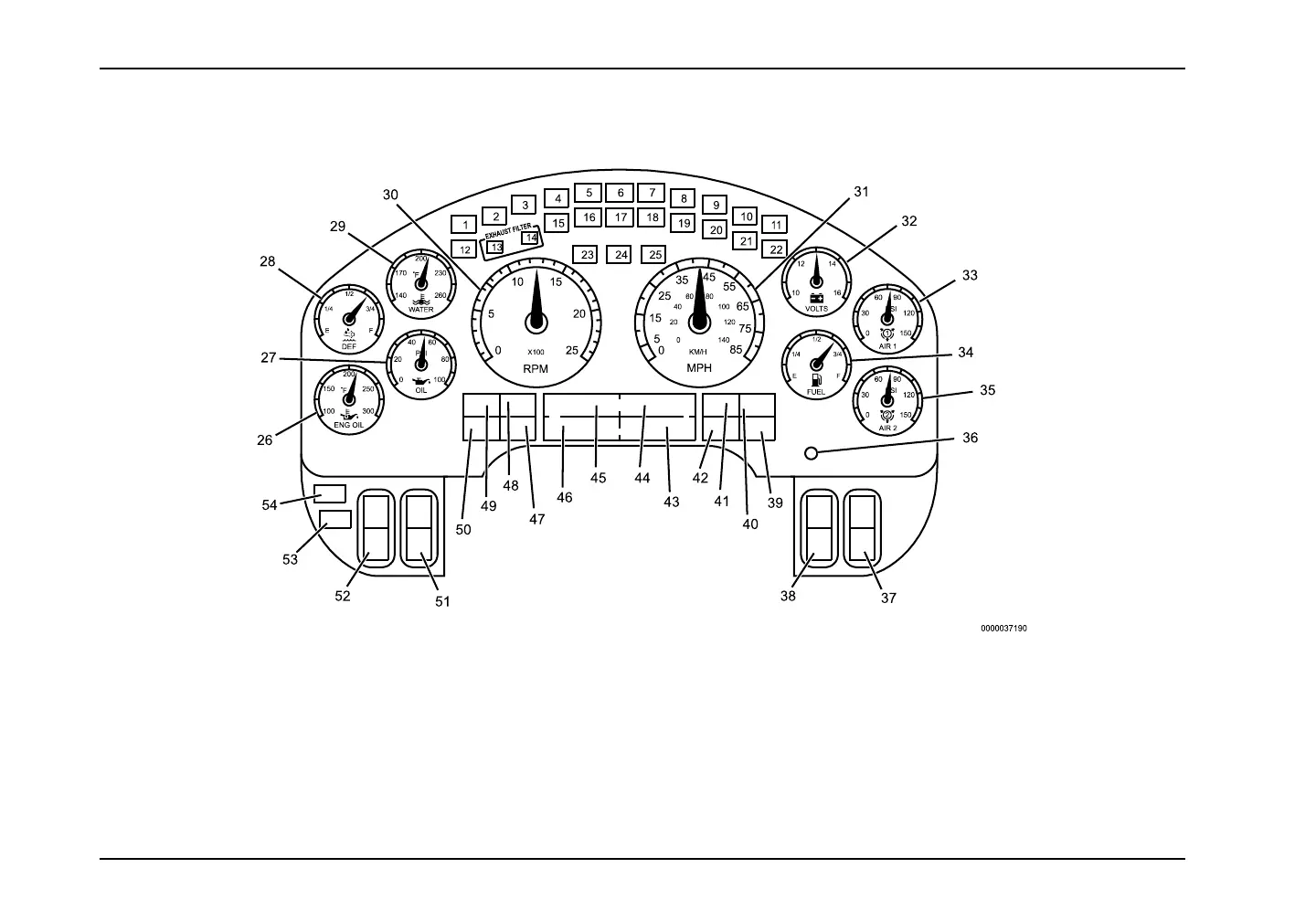

Theinstrumentpanelgaugeclustercontains25individualLED

warningindicators.Theseindicatorsareusedtomonitorvehicle

operationandindicateaWARNINGorSTOPcondition.These

warningindicatorsaredrivenbythesoftwareintheinstrument

panelgaugecluster.Atignition,thewarningindicatorswill

illuminatefor8to10seconds,aspartofthevehiclepower-up

sequence.
