Oce 9600 - Page 233

Loading supplies 233
▼
▼▼
▼
Inserting a new tape roll
1

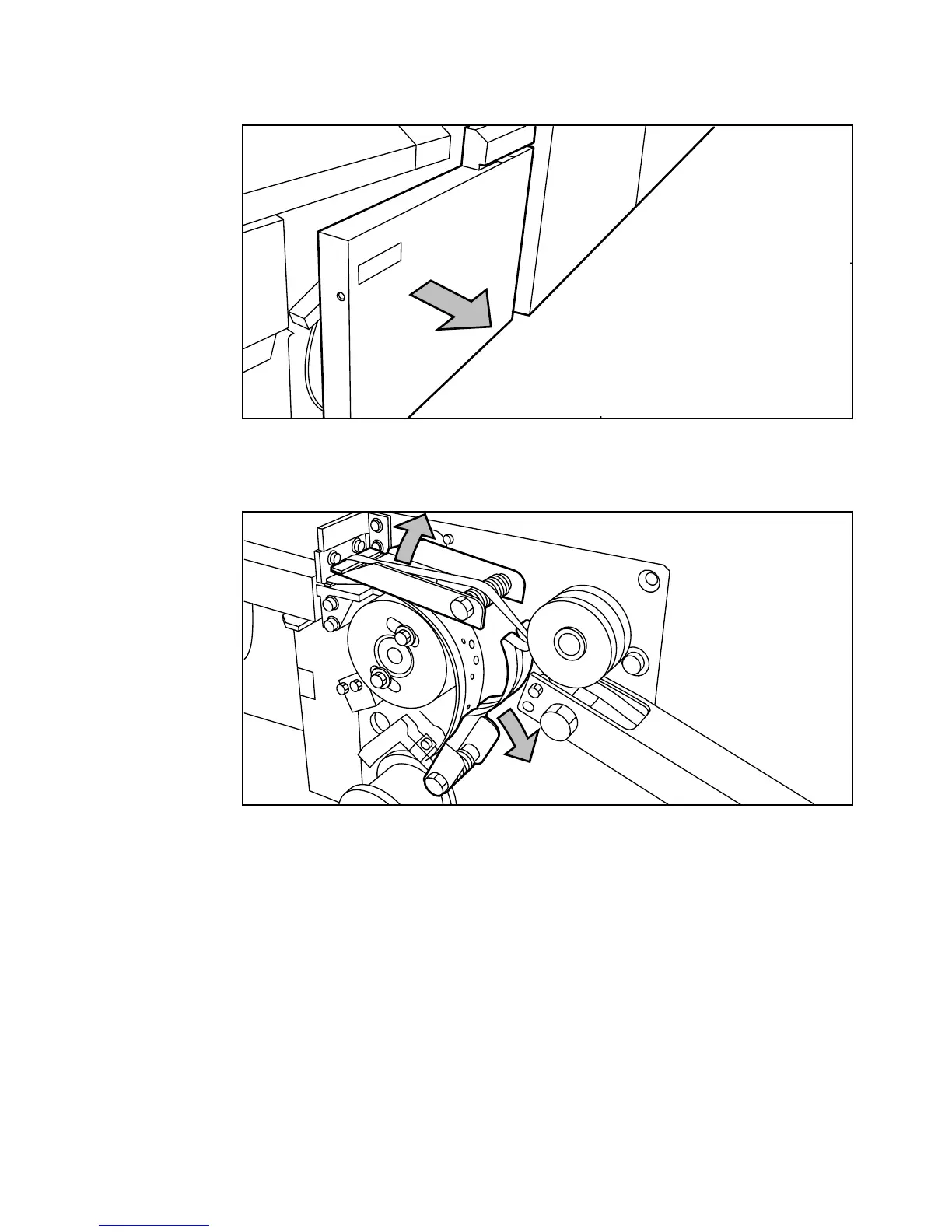

Open the side door of the reinforcement unit (see figure 116).
[116] Opening the side door of the reinforcement unit
2
Turn the two guide plates away from the pin roller and lock them into their
open position (see figure 117).
[117] Opening the guide plates
