236 Océ 9600 Copier/Printer User Manual
8

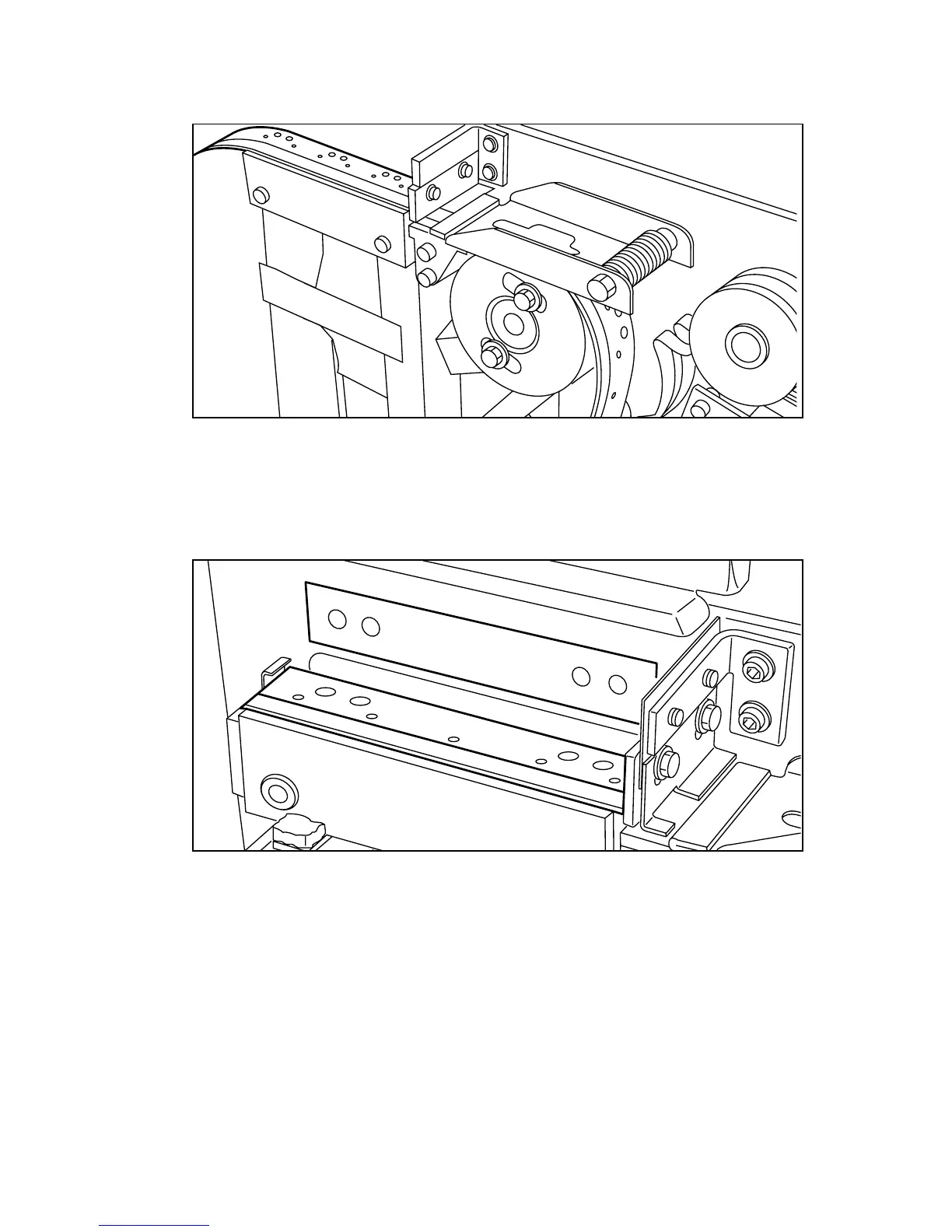

Make sure that at least 200 mm (7.87 inches, or 2 strip lengths) of tape protrude
from the knife section (see figure 122).
[122] Protruding tape
9
The holes in the tape must be aligned with the hole pattern on the sticker found
on the frame plate of the reinforcement unit (see figure 123). If this is not the
case, lift the tape from the pin roller and push the tape further between the two
knives until the holes are aligned.
[123] Adjusting the holes on the tape
