Oce 9600 - Page 235

Loading supplies 235
6
Detach the end of the roll and lead the tape over the large guide roller (see
figure 120).

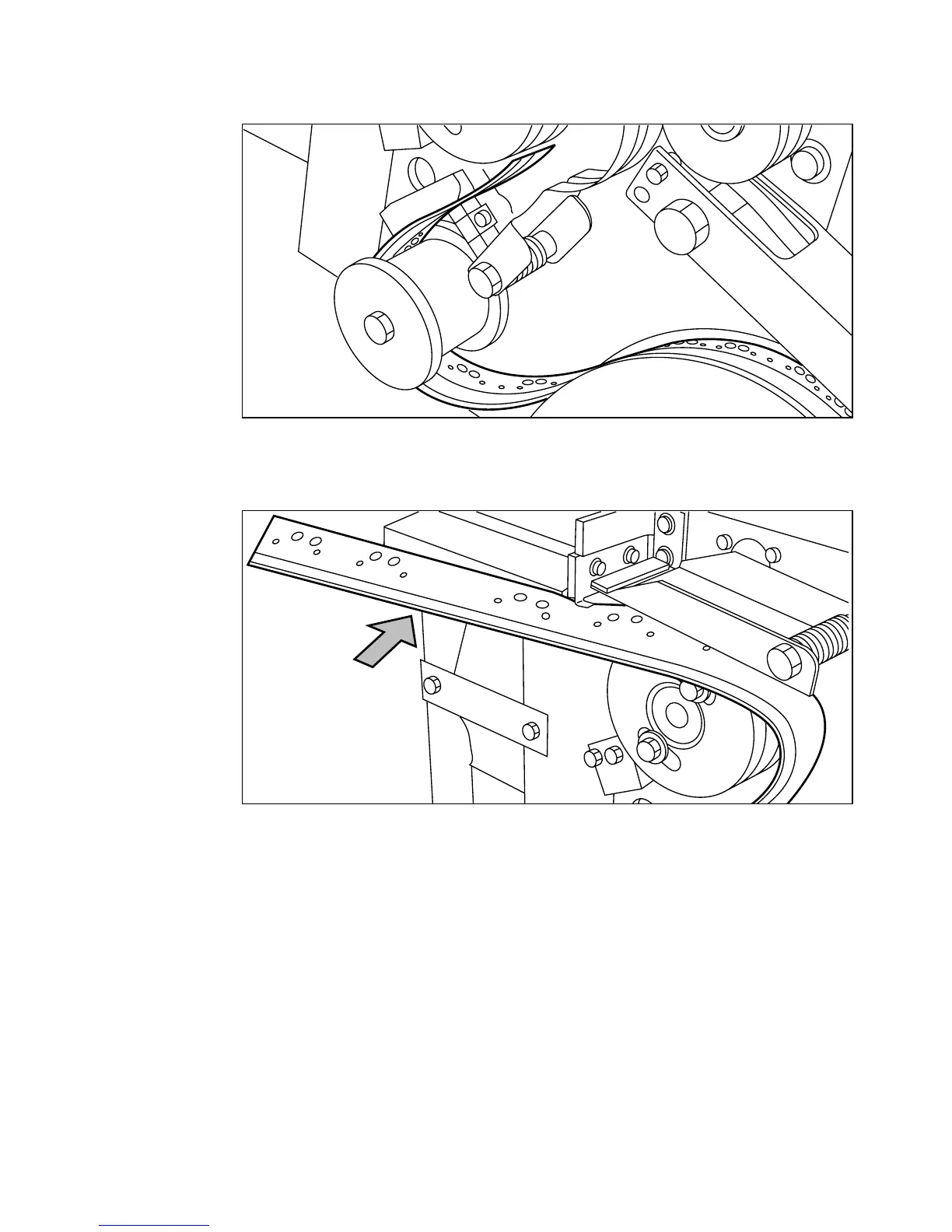

[120] Guiding the tape around the guide roller
7
Lead the tape between the upper and lower knife and over the pin roller (see
figure 121).
[121] Leading the tape between the upper and lower knife
