Maintenance
Notes

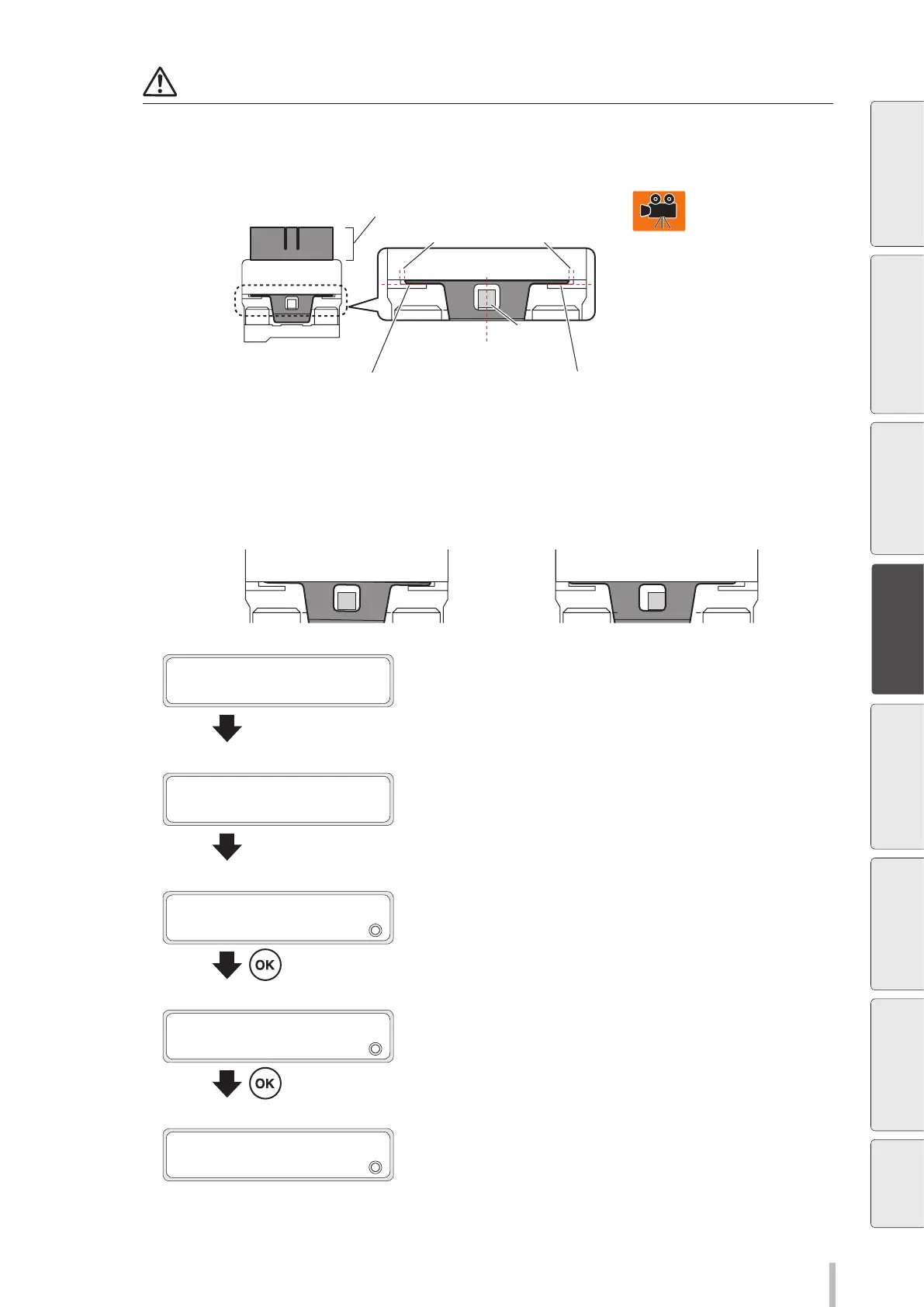

If the rubber blades are not installed correctly, the print head cleaning will not be eective. As a result not only the print
quality will decrease, but this may also lead to a malfunction.
Refer to the example below to install the blades correctly.
Protrusion
The protrusion is in the center
Parts are in contact at both the right and left sides
The spaces on the right and left are equal
They are parallel
The cleaning will not be eective if the blades are mistakenly installed as shown below.
Refer to the example above to correct the position.
The blade is installed at a slant The blade is not aligned in the vertical
and horizontal directions
11
AFTER REPLACING WB
CLOSE COVERS
Close the cap cover and the front cover.
CARRIAGE IS MOVING
PLEASE WAIT
Carriage stops moving.
12
REPLACED WIPER BLADE?
2
NO
Press the Down button to select YES.
13
REPLACED WIPER BLADE?
2
YES
Press the OK button.
14
>WIPER MAINTENANCE
2
REPLACE BLADE
