153

Advanced operations

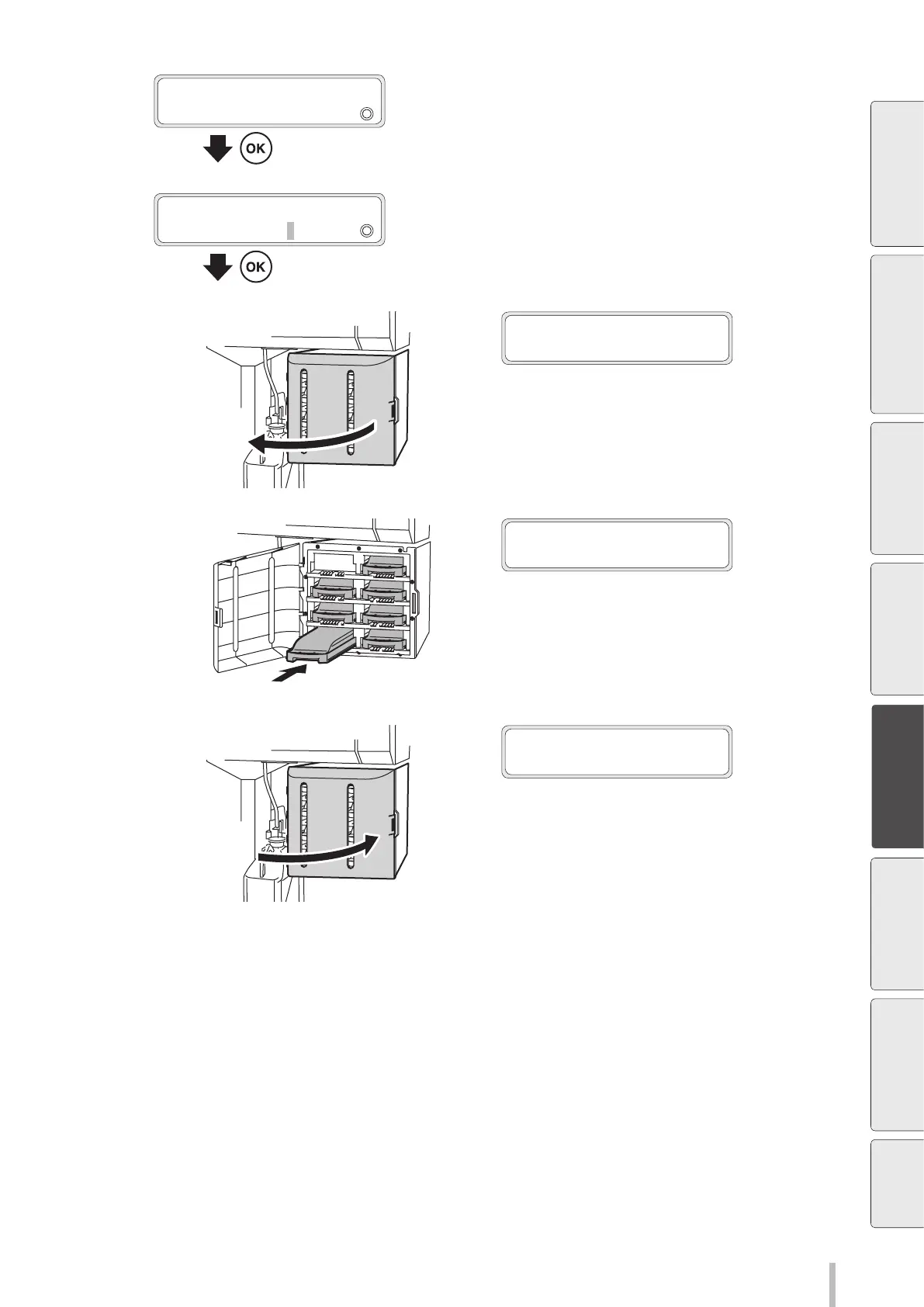

>PH MAINTENANCE

PRIME INK SYSTEM

Press the OK button.

>>PRIME INK SYSTEM

BOTTLE IS EMPTY?

Conrm that the waste ink bottle is empty

and press the OK button.

OPEN INK BOX COVER

Open the ink box cover.

INSTALL K

INK CARTRIDGE

Insert the ink trays.

CLOSE INK BOX COVER

Close the ink box cover.

Before printing Loading the media Adjustment Maintenance

Advanced

operations

Troubleshooting Menu tree Appendix
