Adjustment
11

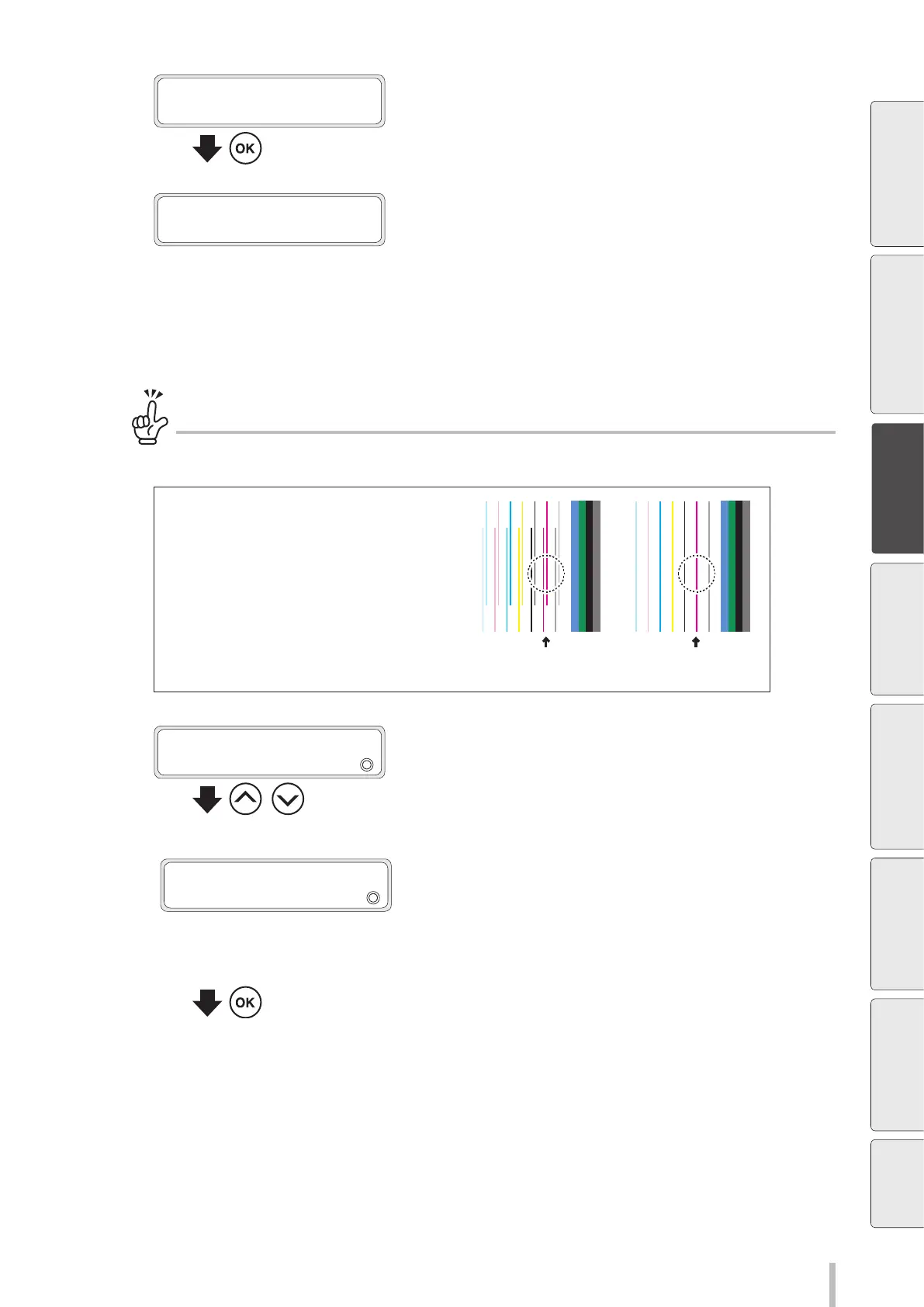

>>>1: DRA,FAST PR,PRO
EXECUTE OK?
Press the OK button to print the bidirectional
adjustment pattern.
>>>1: DRA,FAST PR,PRO
EXECUTING
The print starts.
12
Check visually the bidirectional adjustment pattern and select a bidirectional adjustment
value.
Select a value for both the right and left of each print head.
How to check a bidirectional adjustment pattern
Enter the value indicated in the case
where both lines are the closest for each
print head.
For example to set the left adjustment
value for the M print head, enter +2 as
in the pattern to the right the lines are
separated for -11 but they form only one
line for +2.
M
-11
M
+2
13
>>>1: DRA,FAST PR,PRO
2
PRINT PATTERN
,
Press the Up and Down buttons to select
right or left adjustment and the color of the
print head.
This example explains how to set a bidirectional adjustment
value of +2 for the left adjustment of the M print head.
14
M : Print head color
L : Adjustment value right or left
±XX : Current adjustment value
>>>1: DRA,FAST PR,PRO
2
*M_L:±XX
Press the OK button.
