The number of decimal places displayed can be specified by adding a “#” character for each required
place after a decimal point, e.g. #.## indicates 2 decimal places.
The text can also be left justified by setting the Left Justified setting.
Note: To include a ‘#’ character as part of the text, insert it as an escape character. For
example, to display ‘Box # 1’ type ‘Box \# #’. Only hashes typed to the left of the #
required for value display need escape characters, since the first hash without an
escape character is taken to be the point at which the value should be displayed.
To abort the Display Value edit, click the Cancel pushbutton. By clicking the Browse pushbutton, a
point may be directly specified, as described in chapter 9, Runtime Actions. Once completed, click
the OK pushbutton. If invalid data has been inserted into any field, a descriptive error message is
displayed.
Display Value (Text)
Text may be displayed using the Display Value (Text) dialog.
To access the Display Value (Text) dialog to add an action, select Display Text Point from the
animation list and click the Add Action button on the toolbar. To access the Display Value (Text)
dialog to modify an action, select Display Text Point from the animation list and click the Modify
Action button on the toolbar. For a list of the objects to which this action is applicable refer to
chapter 9, Objects.

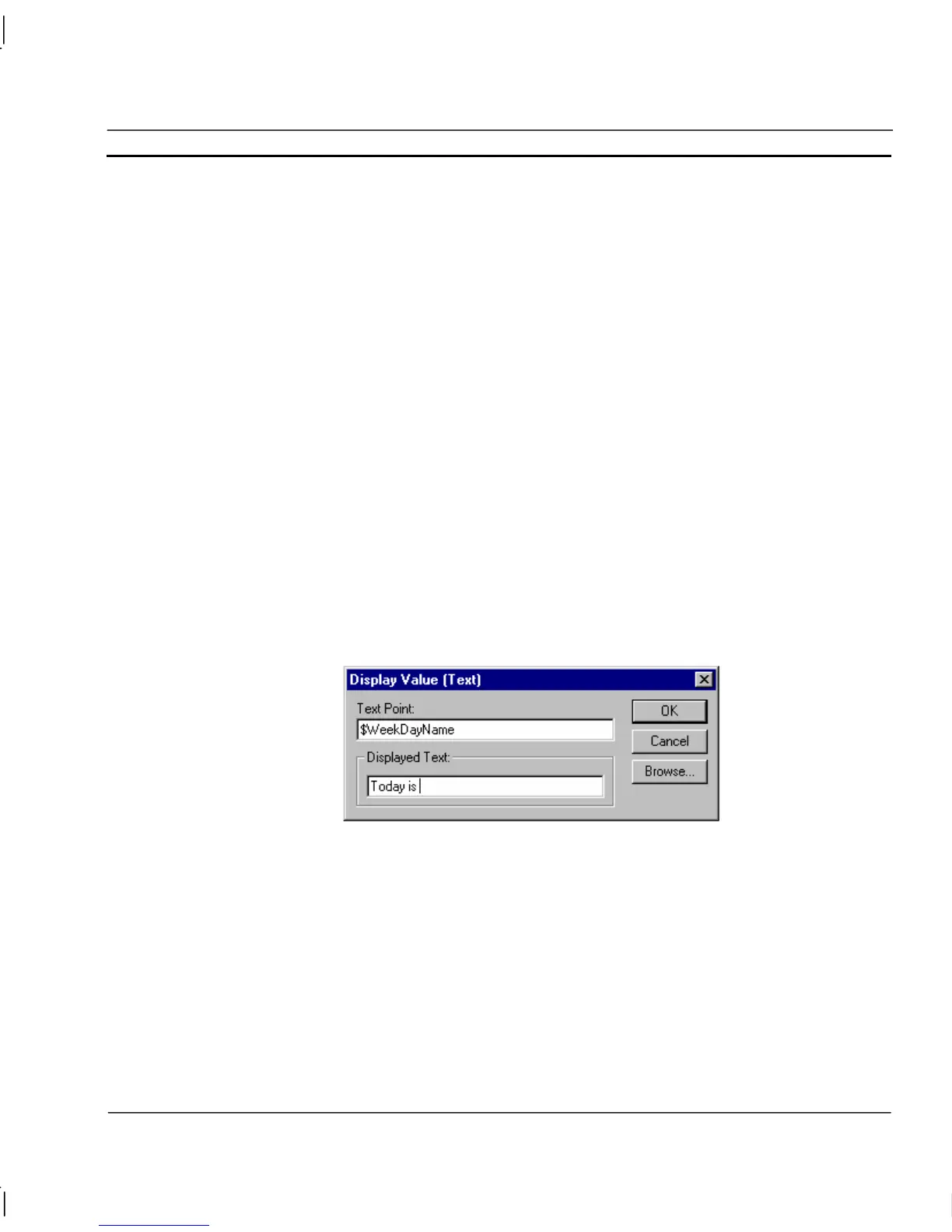

On selection of the Display Text Point action, the Display Value (Text) dialog is displayed:
An expression based on a text point must be entered. This expression is typed into the Text Point:
field. A text string to be displayed can be entered in the Displayed Text: field (this field can be
updated using the Graphics Editor). The position of the displayed text within the text field is
specified by entering a “#” character into the Displayed Text: field.
Note: To include a ‘#’ character as part of the text, insert it as an escape character. For
example, to display ‘Box # 1’ type ‘Box \# #’. Only hashes typed to the left of the #
required for value display need escape characters, since the first hash without an
escape character is taken to be the point at which the value should be displayed.
