OMRON CHAPTER 9 – Animation
Release 2.0 Page 155

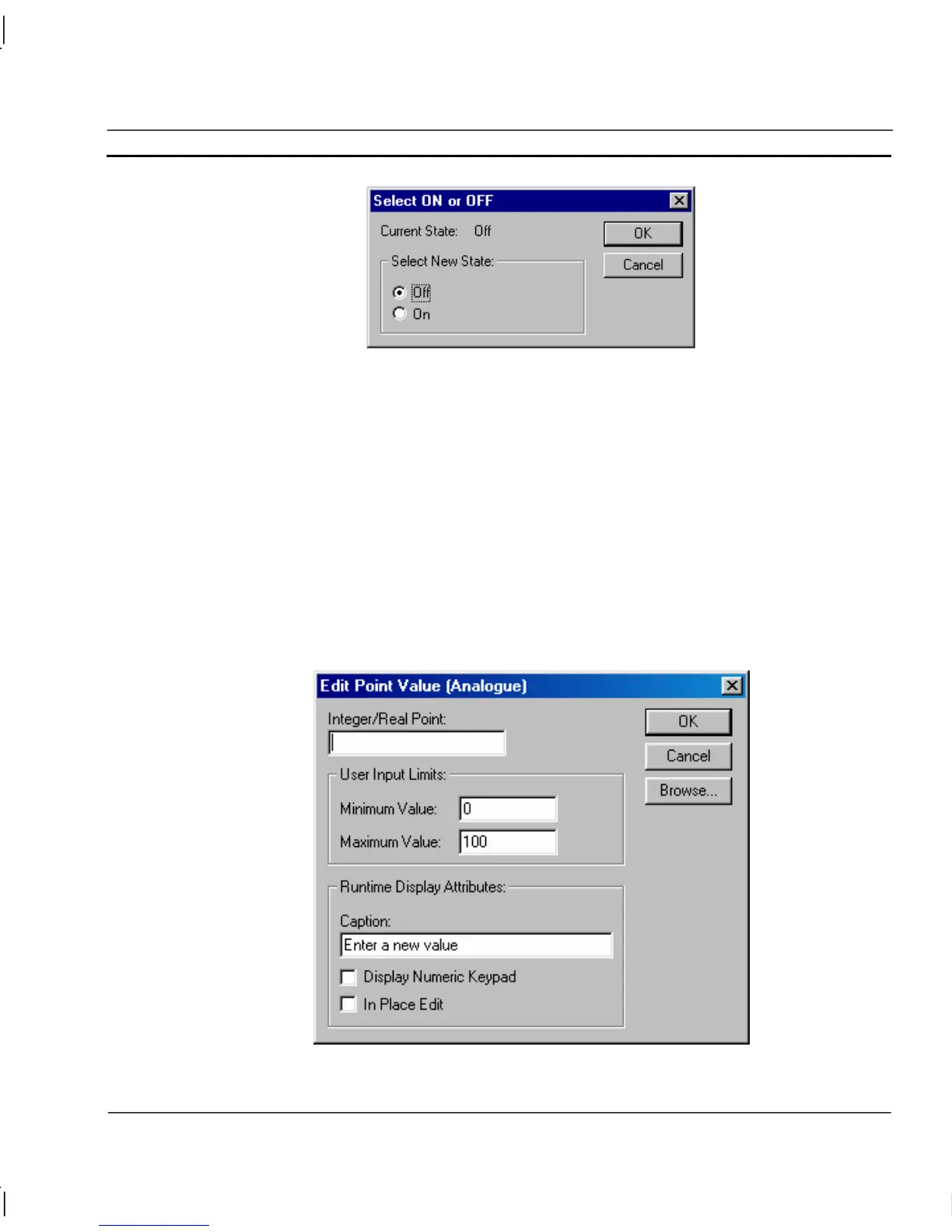

The user is provided with an instruction, based on the Runtime Display Attributes: field (in this
example ‘Select New State’), and On and Off settings, based on the State 0 Text: and State 1 Text:
fields. The user clicks the Cancel pushbutton to abort the operation.
Edit Point Value (Analogue)
The value of a Real or Integer point may be issued to the user for amendment during runtime, defined
using the User Input (Analogue) dialog.
To access the User Input (Analogue) dialog to add an action, select Edit Point Value (Analogue) from
the animation list and click the Add Action button on the toolbar. To access the User Input
(Analogue) dialog to modify an action, select Edit Point Value (Analogue) from the animation list
and click the Modify Action button on the toolbar. For a list of the objects to which this action is
applicable refer to chapter 9, Objects.
On selection of the Edit Point Value (Analogue) action, the dialog is displayed:
