2-3

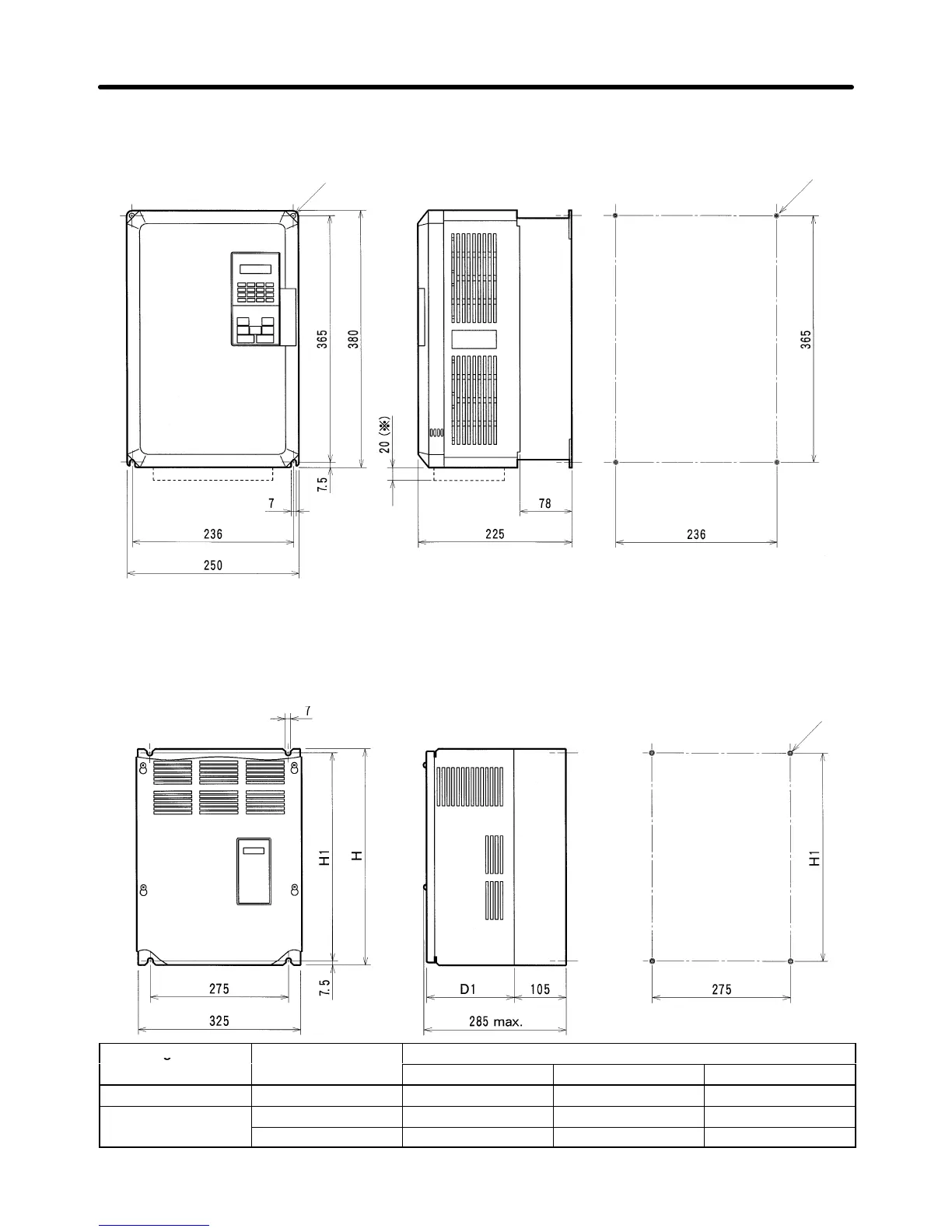

H 3G3HV-A2110/-A2150/-A4110/-A4150
D External Dimensions D Mounting Dimensions
Two,
7-dia.
Four, M5
Note *The dashed lines apply only to the A2150.
H 3G3HV-B2185/-B2220/-B4185/-B4220/-B4300/-B4450
D External Dimensions D Mounting Dimensions
Four, M5
Voltage class
Model 3G3HV-
Dimensions (mm)
g
H H1 D1
200-V B2185/B2220 450 435 174.5
400-V
B4185/B4220 450 435 174.5
B4300/B4370/B4450 526 610 175
Installation Chapter 2
