2-4
H 3G3HV-B2300/-B2370/-B2450/-B2550/-B4550/-B4750

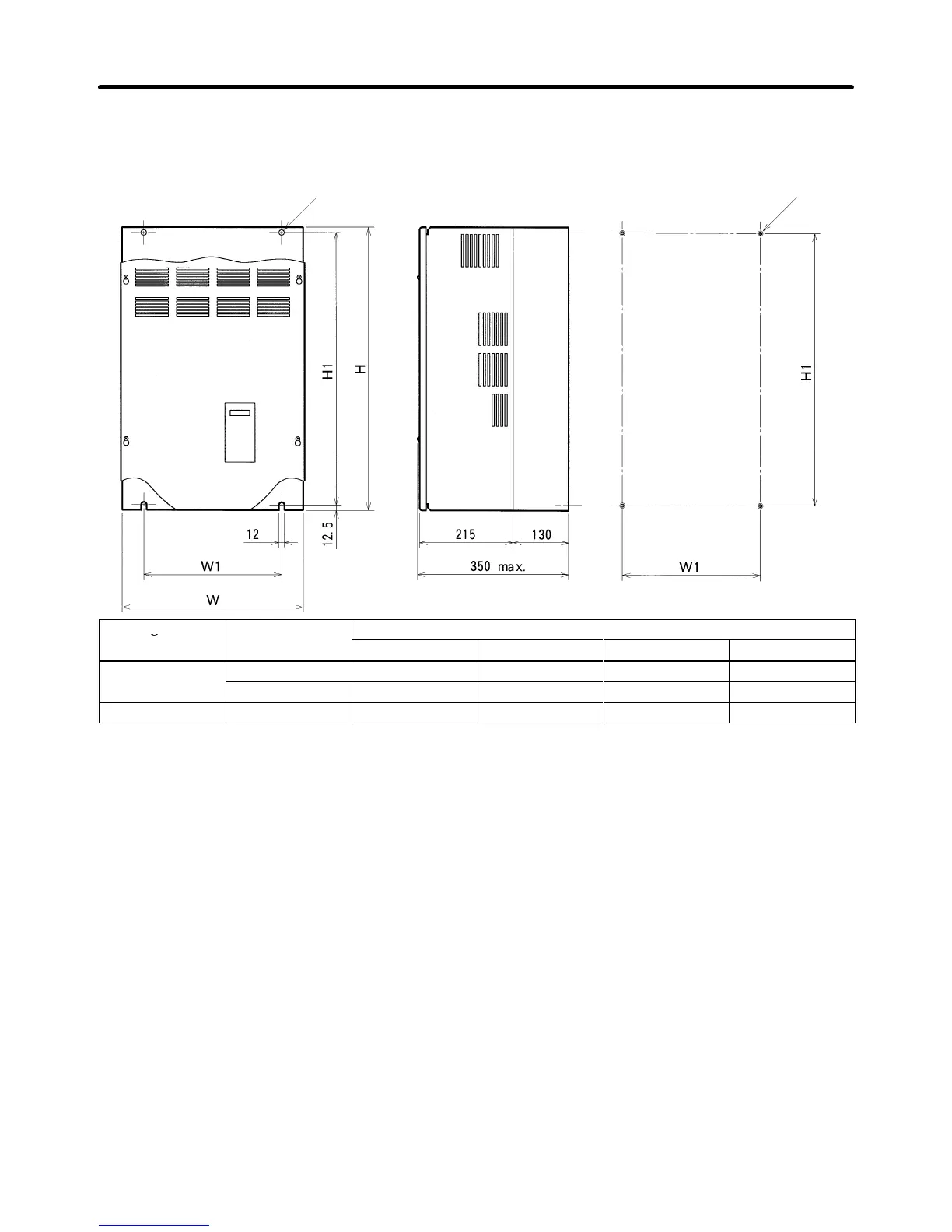

D External Dimensions D Mounting Dimensions
Two,
12-dia.
Four
, M10
Voltage class Model 3G3HV-
Dimensions (mm)
g
W H W1 H1
200-V
B2300/B2370 425 675 320 650
B2450/B2550 475 800 370 775
400-V B4550/B4750 455 820 350 795
Installation Chapter 2
